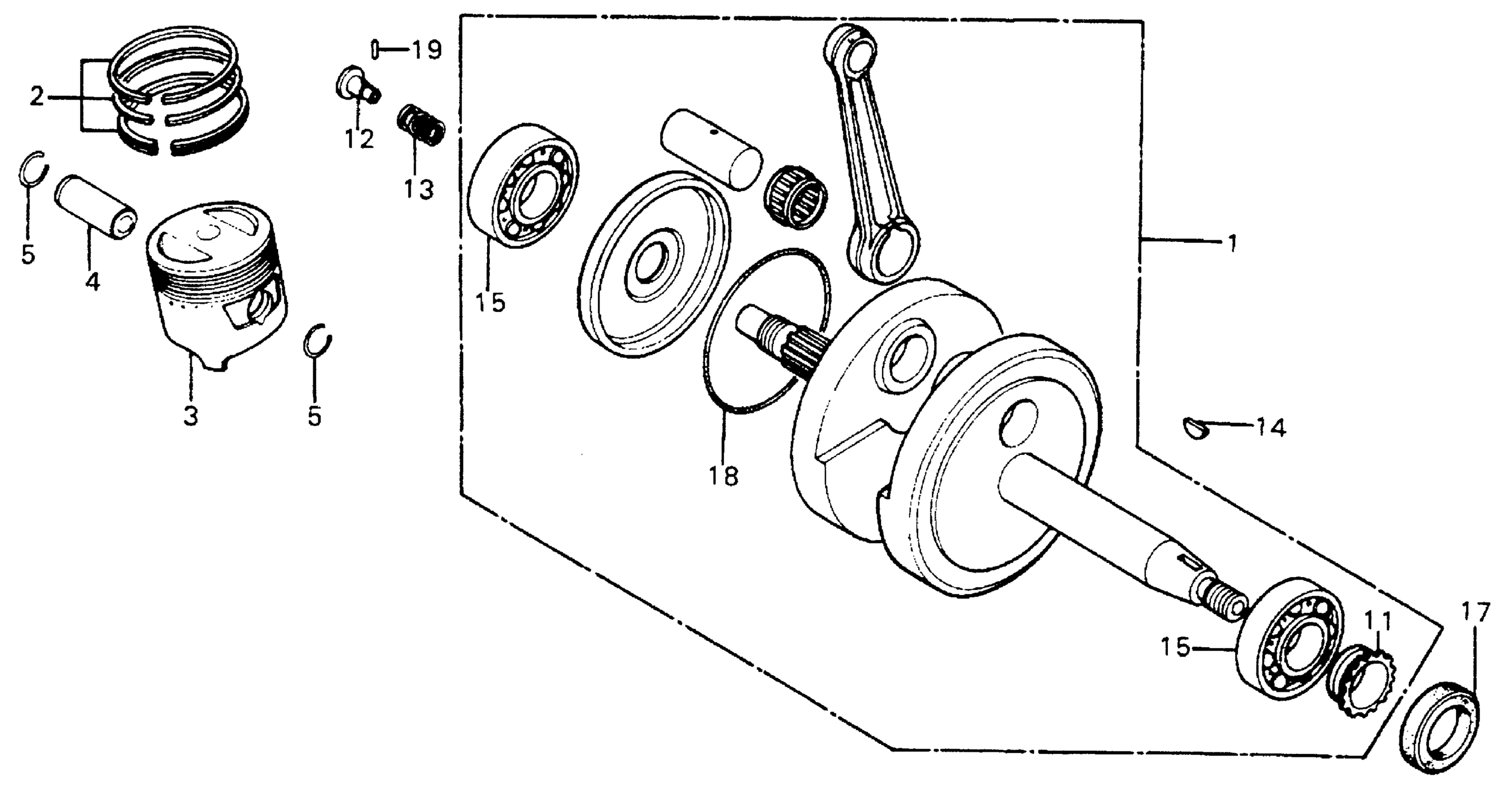

Honda XL75A (79) MOTORCYCLE, JPN, VIN# XL75-5000001 TO XL75-5011386 CRANKSHAFT Diagram

CRANKSHAFT (NOT AVAILABLE) This part replaces 13000-152-040.

13000-153-305

Unavailable

CRANKSHAFT (NOT AVAILABLE)

13000-153-305

Unavailable

RING SET, PISTON (0.75) (TEIKOKU) (NOT AVAILABLE) | (Optional). This part replaces 13041-152-014.

13041-153-015

Unavailable

RING SET, PISTON (0.75) (TEIKOKU) (NOT AVAILABLE) | (Optional). This part replaces 13041-152-024.

13041-153-015

Unavailable

RING SET, PISTON (0.75) (TEIKOKU) (NOT AVAILABLE) | (Optional).

13041-153-015

Unavailable

RING SET, PISTON (1.00) (TEIKOKU) (NOT AVAILABLE) | (Optional). This part replaces 13051-152-024.

13051-153-015

Unavailable

PISTON (STD) This part replaces 13101-152-000.

13101-153-000

Unavailable

PISTON (STD)

13101-153-000

Unavailable

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional). This part replaces 13102-152-000.

13102-153-000

Unavailable

PISTON (OS 0.50) | (Optional). This part replaces 13103-152-000.

13103-153-000

Unavailable

PISTON (OS 0.50) | (Optional).

13103-153-000

Unavailable

PISTON (0.75) | (Optional). This part replaces 13104-152-000.

13104-153-000

Unavailable

PISTON (1.00) (NOT AVAILABLE) | (Optional). This part replaces 13105-152-000.

13105-153-000

Unavailable

PIN, PISTON

13111-GB0-910

$11.67

PIN, PISTON This part replaces 13111-087-000.

13111-GB0-910

$11.67

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

SPROCKET, TIMING (14T)

14311-035-000

$19.28

THROUGH, OIL

15441-149-000

$10.12

SPRING, OIL THROUGH

15447-149-000

$2.92

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

BEARING, RADIAL BALL (6304)

91001-GF6-004

$20.45

BEARING, RADIAL BALL (6304) This part replaces 91001-035-008.

91001-GF6-004

$20.45

OIL SEAL (19X36X7)

91202-115-015

$7.32

O-RING (70X2.4)

91309-302-000

$10.00

ROLLER (2X11.8)

96220-20118

$1.49
