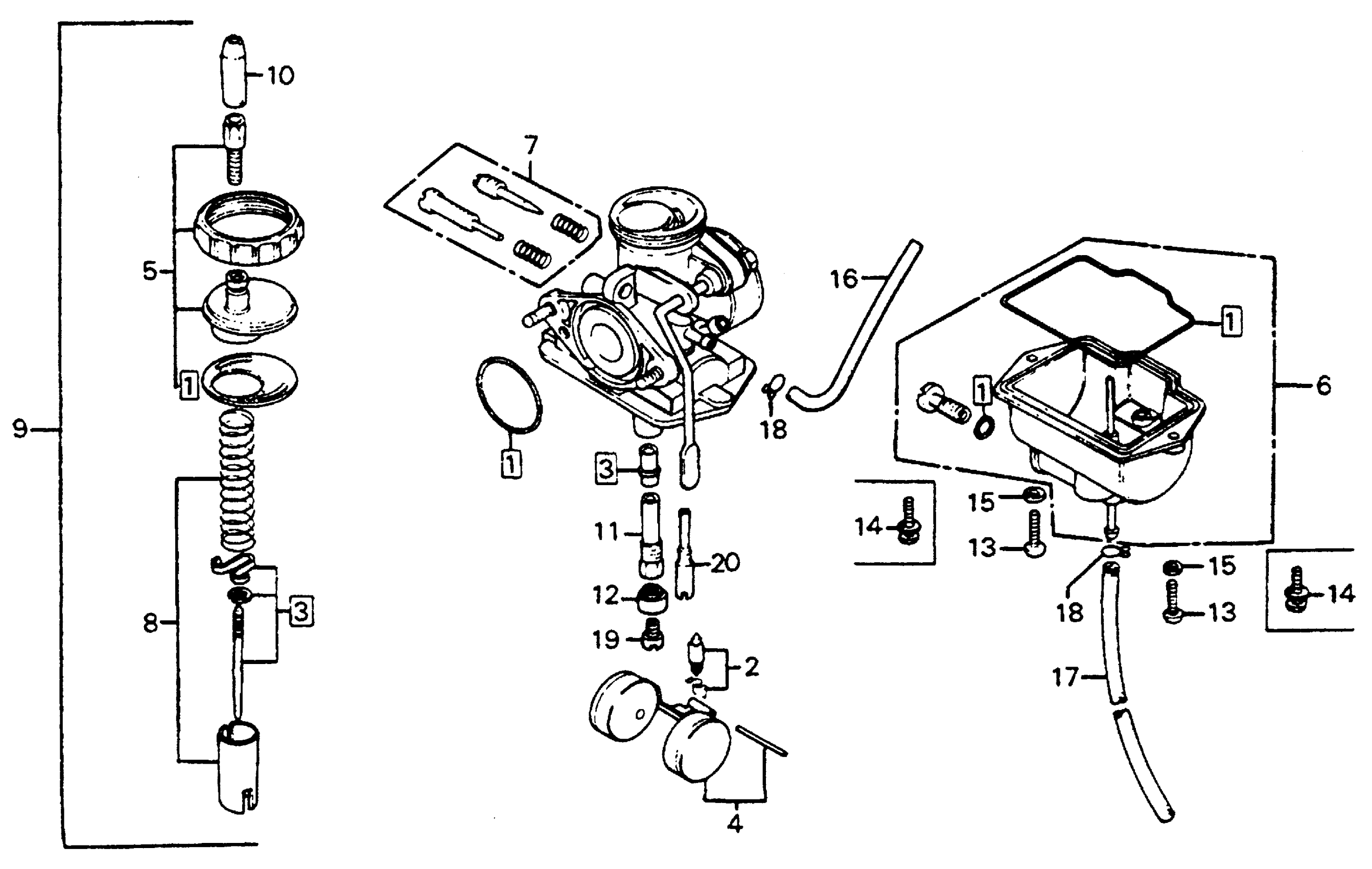

Honda XL75A (79) MOTORCYCLE, JPN, VIN# XL75-5000001 TO XL75-5011386 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-GCR-000

$12.44

1

GASKET SET This part replaces 16010-116-700.

16010-GCR-000

$12.44

2

VALVE SET, FLOAT This part replaces 16011-147-004.

16011-881-741

$22.32

2

VALVE SET, FLOAT This part replaces 16011-147-305.

16011-881-741

$22.32

2

VALVE SET, FLOAT

16011-881-741

$22.32

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-152-771

Unavailable

4

FLOAT SET

16013-116-700

$25.68

5

TOP SET

16014-065-004

$30.71

5

TOP SET This part replaces 16014-071-690.

16014-065-004

$30.71

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-150-004

Unavailable

7

SCREW SET

16016-143-620

$21.57

8

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-152-004

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-152-871

Unavailable

10

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$7.52

10

CAP, CABLE SEALING

16118-166-004

$7.52

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-152-004

Unavailable

12

HOLDER, JET

16168-355-700

$7.64

14

SCREW-WASHER (4X12)

93892-04012-08

$0.58

16

BULK HOSE, FUEL (3.5X3000) (3.5X150)

95001-35003-60M

$18.72

17

BULK HOSE, FUEL (3.5X3000) (3.5X300)

95001-35003-60M

$18.72

18

CLIP, TUBE (B7)

95002-02070

$1.59

19

JET, MAIN (#78) This part replaces 99101-116-0780.

99101-HF7-0780

$8.25

19

JET SET, MAIN (#72) (NOT AVAILABLE) | (Optional).

16110-152-305

Unavailable

20

JET, SLOW (#35)

99103-355-0350

Unavailable
