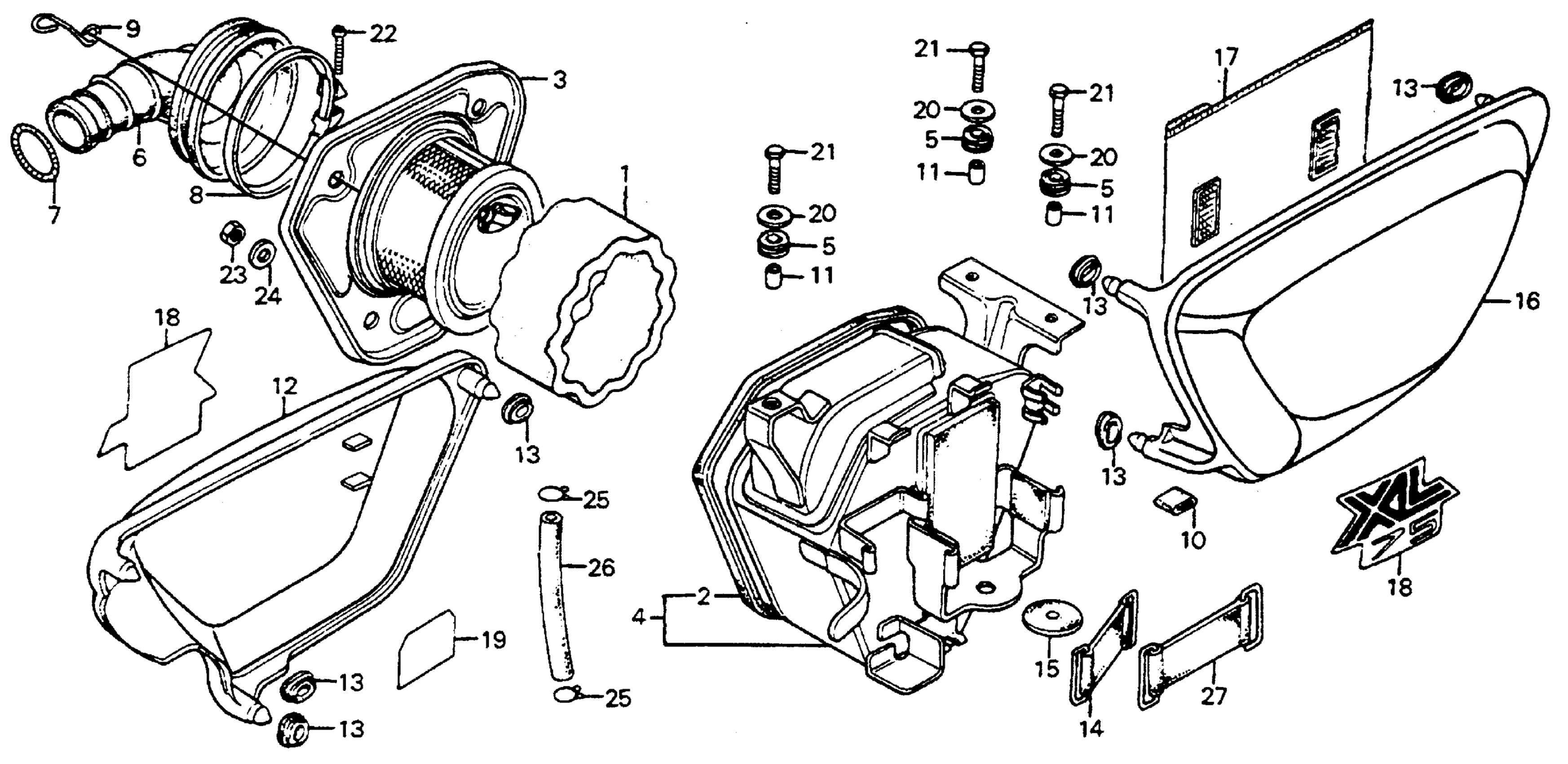

Honda XL75A (79) MOTORCYCLE, JPN, VIN# XL75-5000001 TO XL75-5011386 AIR CLEANER + SIDE COVER 79 Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-153-010

$11.18

2

GASKET, AIR CLEANER HOUSING (NOT AVAILABLE)

17226-152-300

Unavailable

3

COVER, AIR CLEANER HOUSING (NOT AVAILABLE)

17228-152-770

Unavailable

4

HOUSING, AIR CLEANER

17230-152-770

Unavailable

5

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

6

TUBE This part replaces 17253-152-000.

17253-152-010

Unavailable

7

BAND A, AIR CLEANER IN. PIPE

17231-051-000

$4.63

7

BAND A, AIR CLEANER IN. PIPE This part replaces 17255-028-000.

17231-051-000

$4.63

8

BAND, AIR CLEANER CONNECTING TUBE

17255-107-000

Unavailable

9

CLIP, AIR VENT TUBE (NOT AVAILABLE)

17265-159-610

Unavailable

10

RUBBER B, BATTERY SETTING

31503-044-670

$2.56

11

COLLAR, RR. TURN SIGNAL STAY

33603-053-650

$1.64

12

COVER, R. SIDE *R23* (TAHITIAN RED) (NOT AVAILABLE)

83540-152-000ZB

Unavailable

13

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

14

BAND, SIDE COVER

83606-356-000

$23.26

15

RUBBER, BATTERY BOX

83618-323-000

$2.47

16

COVER, L. SIDE *R23* (TAHITIAN RED) (NOT AVAILABLE)

83640-152-000ZB

Unavailable

17

BAG, OWNER'S MANUAL

83642-355-000

$26.87

18

EMBLEM, SIDE COVER (NOT AVAILABLE)

87128-152-870

Unavailable

19

LABEL, AIR CLEANER CAUTION

87508-120-000

$5.26

20

WASHER, WHEEL (6MM)

90563-355-000

$3.13

21

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

21

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

22

SCREW, PAN (4X25)

93500-04025-0A

$1.93

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

CLIP, TUBE (C12)

95002-80000

$1.49

26

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

27

BAND B2, BATTERY This part replaces 95012-13000.

95012-13001

$5.28

27

BAND B2, BATTERY

95012-13001

$5.28
