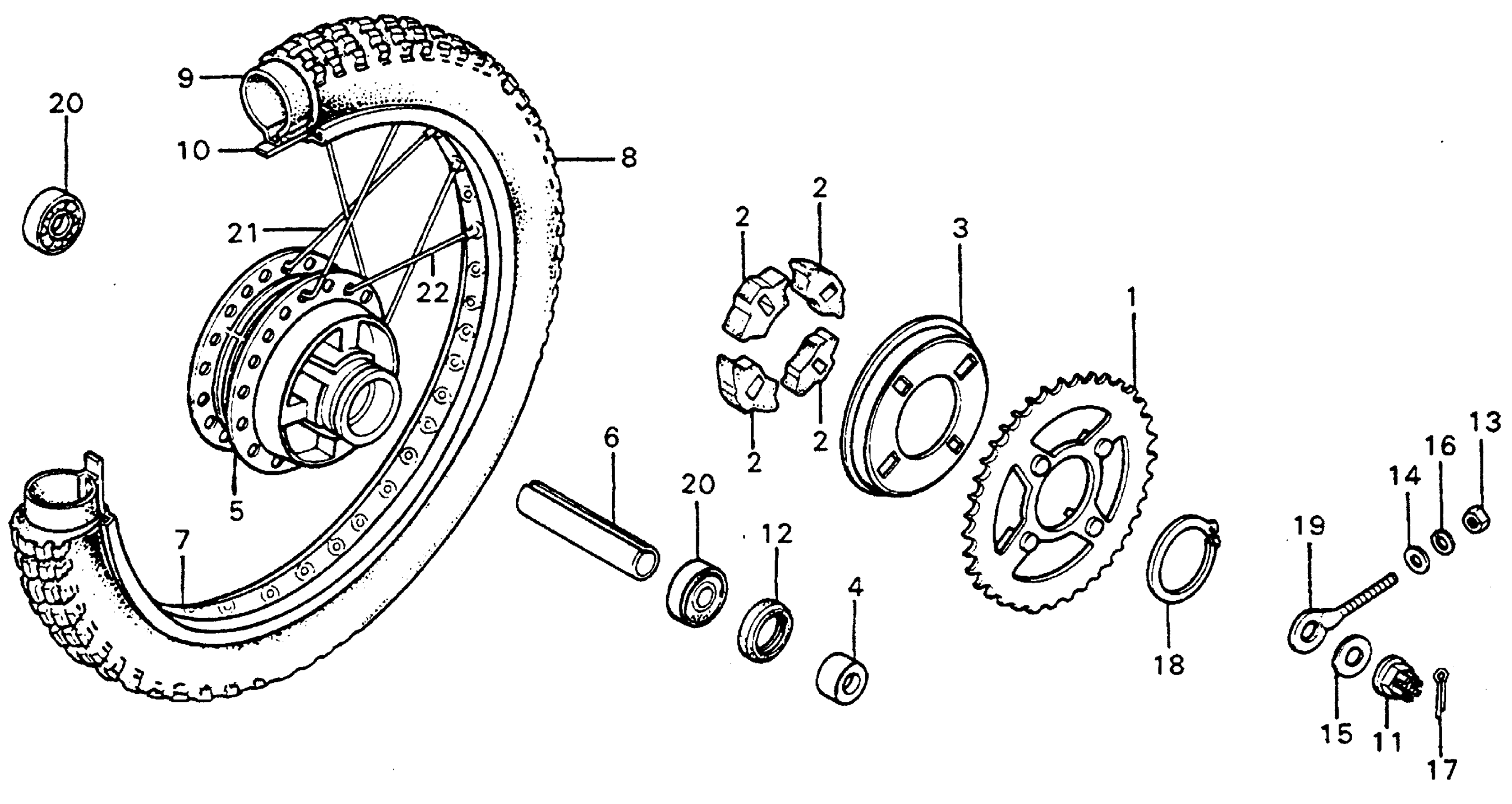

Honda XL75A (78) MOTORCYCLE, JPN, VIN# XL75-1100005 TO XL75-1116994 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (36T)

41201-124-770

Unavailable

1

SPROCKET, FINAL DRIVEN (36T) This part replaces 41201-152-000.

41201-124-770

Unavailable

2

DAMPER, RR. WHEEL

41241-051-000

$7.31

3

COVER, RR. WHEEL DAMPER

41245-051-000

$4.79

4

COLLAR, RR. WHEEL SIDE This part replaces 42304-051-000.

42304-098-000

$6.14

4

COLLAR, RR. WHEEL SIDE

42304-098-000

$6.14

5

HUB, RR. WHEEL *NH105* (MAT BLACK) This part replaces 42601-153-600ZA.

42601-153-600ZB

Unavailable

5

HUB, RR. WHEEL *NH105* (MAT BLACK)

42601-153-600ZB

Unavailable

6

COLLAR, RR. AXLE DISTANCE

42620-051-000

Unavailable

7

RIM, RR. WHEEL (1.60X14) (DAIDO) | Use up to Frame SN 1113960 This part replaces 42701-118-013.

42701-152-712

Unavailable

7

RIM, RR. WHEEL (1.60X14) (DAIDO) This part replaces 42701-152-711.

42701-152-712

Unavailable

8

TIRE, RR. (3.00-14) (BS) (NOT AVAILABLE)

42711-128-691

Unavailable

8

TIRE, RR. (3.00-14) (NITTO) (NOT AVAILABLE)

42711-128-692

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 0Y400-12801.

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 08400-12800.

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 08400-12801.

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-GC1-004.

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE)

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-118-003.

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-121-692.

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-128-003.

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-128-006.

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-169-005.

42712-116-672

Unavailable

10

FLAP, TIRE (1.60-14) (BS)

42713-GC4-003

$6.69

10

FLAP, TIRE (1.60-14) (BS) This part replaces 42713-118-003.

42713-GC4-003

$6.69

10

FLAP, TIRE (1.60-14) (BS) This part replaces 42713-128-003.

42713-GC4-003

$6.69

10

FLAP, TIRE (1.60-14) (BS) This part replaces 42713-128-006.

42713-GC4-003

$6.69

11

NUT, AXLE (12MM) This part replaces 90305-051-000.

90305-169-000

$6.28

11

NUT, AXLE (12MM)

90305-169-000

$6.28

12

OIL SEAL (26X37X6)

90753-051-003

$7.66

12

OIL SEAL (26X37X6) This part replaces 90753-051-005.

90753-051-003

$7.66

13

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM)

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

WASHER, PLAIN (12MM)

94101-12000

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

17

PIN, COTTER (3.0X45)

94201-30450

$1.49

18

CIRCLIP (OUTER) (50MM)

94511-50000

$2.25

19

ADJUSTER S, R. CHAIN

95014-10010

$4.53

20

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

21

SPOKE B (10X124.5) (INSIDE)

97285-42089-10

$3.31

22

SPOKE B (10X124) (OUTSIDE)

97824-42088-10

$3.31
