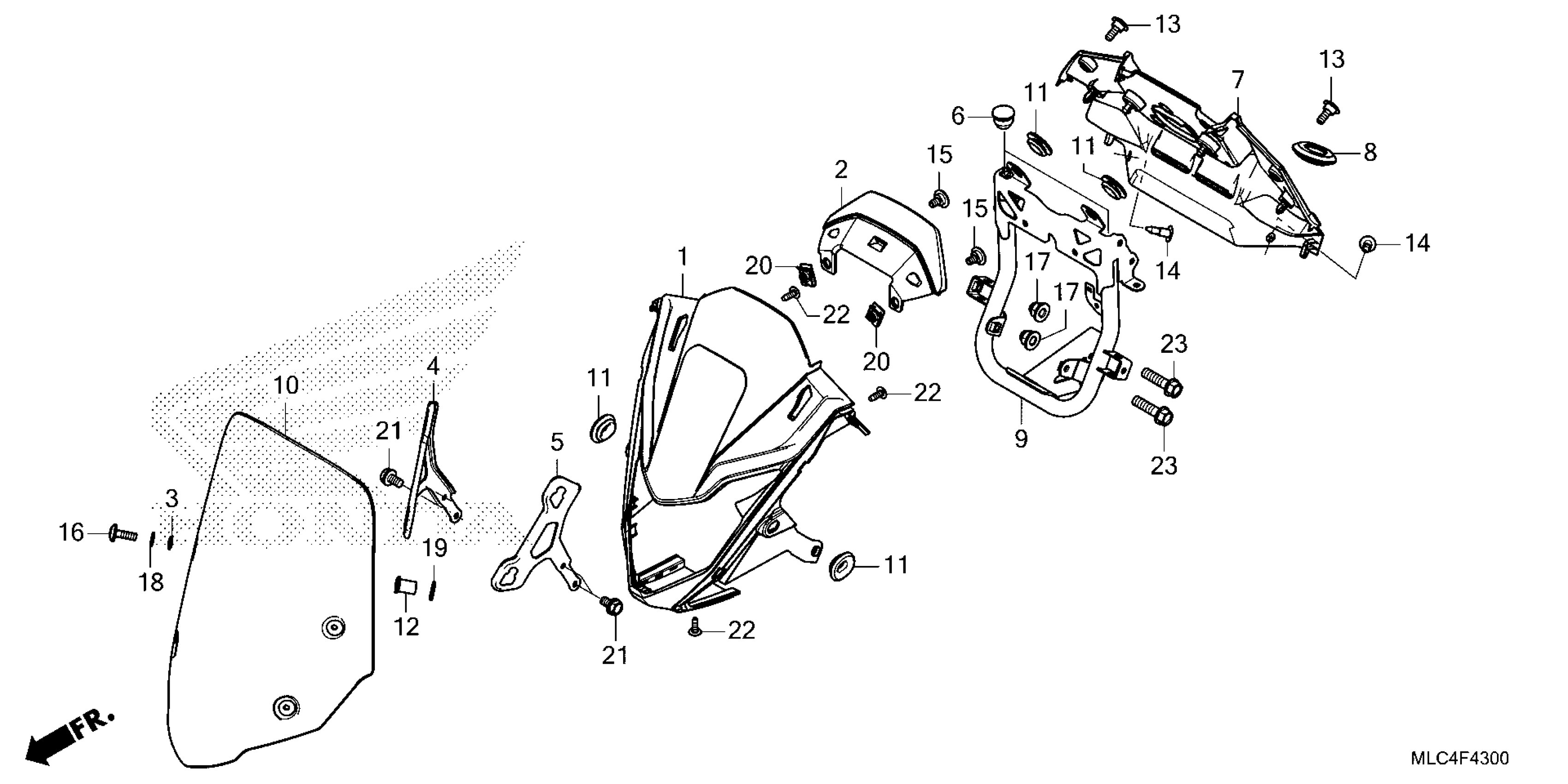

Honda XL750AC (24) MOTORCYCLE, JPN, VIN# JH2RD161-RK100001 TO JH2RD161-RK199999 FRONT COVER (1) Diagram

Description

Price

COVER A, FR. (UPPER)

64131-MLC-D00

$69.18

VISOR

64132-MLC-D00

$17.90

WASHER, SCREEN SETTING

64205-166-610

$2.04

STAY R, SCREEN

64224-MLC-D00

$14.20

STAY L, SCREEN

64234-MLC-D00

$14.20

CAP, PIPE END

64241-MKP-J80

$2.21

PANEL, METER

64260-MLC-D00

$31.82

GROMMET, PANEL (INNER)

64285-MKP-J00

$1.19

STAY COMP, FR. COWL

64501-MLC-D00

$151.28

WINDSCREEN

67101-MLC-D00

$215.31

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.38

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

SCREW, SPECIAL (5X15)

90114-MKC-A00

$2.79

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.29

SCREW, PAN (5X16)

90134-MJE-D00

$1.04

NUT, CAP (8MM)

90443-KTM-970

$0.71

WASHER, THRUST (5MM)

90504-964-000

$1.75

WASHER, NYLON (9MM)

90507-ZV1-000

$1.85

NUT, CLIP (5MM)

90677-KAN-961

$3.89

BOLT-WASHER (6X12)

93401-06012-08

$1.63

SCREW, TAPPING (4X12)

93903-24380

Unavailable

BOLT, FLANGE (8X32)

95801-08032-00

$1.91
