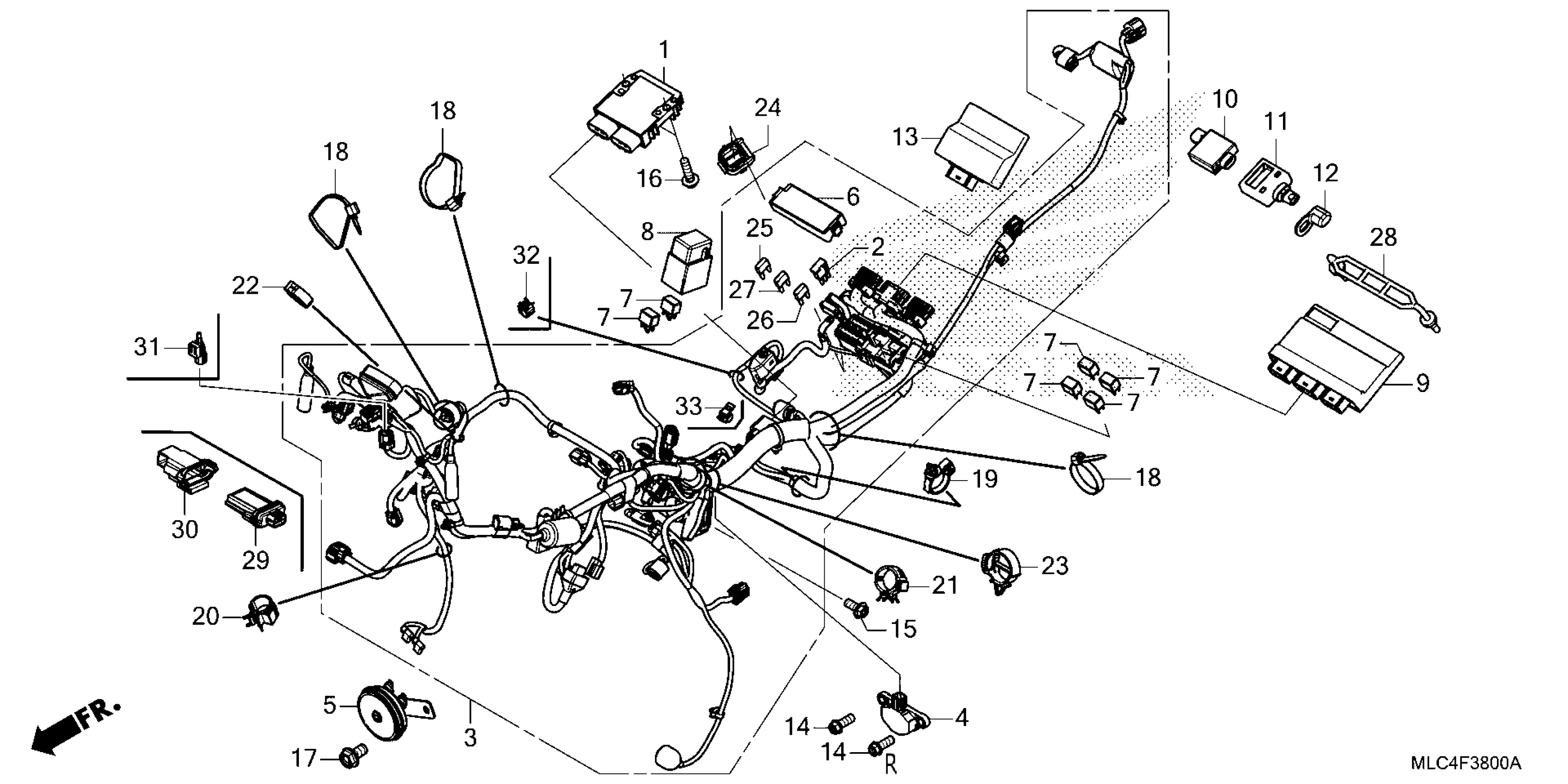

Honda XL7503AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$194.27

2

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

3

WIRE HARNESS

32100-MLC-A40

$737.38

4

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$150.05

5

HORN (LOW)

38120-KCZ-J71

$35.23

6

COVER COMP (UPPER)

38255-MLB-D00

$10.21

7

RELAY (MICRO ISO 4P)

38501-MKP-DN1

$4.80

8

COVER, RELAY (2P)

38506-KZZ-900

$3.72

9

PGM-FI UNIT

38770-MLC-C41

$1.00

10

CHARGER UNIT, USB (TYPE-C)

38940-MKR-D11

$68.87

11

COVER, USB CHARGER (TYPE-C)

38941-MLA-A00

$7.95

12

CAP, USB CHARGER COVER

38942-MLA-A00

$3.31

13

CONTROL UNIT, BODY

38950-MLB-A21

$198.49

14

BOLT, FLANGE (6X16)

90020-GHB-640

$2.26

15

BOLT, FLANGE (6X14)

90025-GHB-630

$2.25

16

BOLT, FLANGE (6X22)

90026-GHB-670

$2.43

17

BOLT, FLANGE (8X14)

90036-GHB-630

$2.23

18

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

19

CLAMP, HARNESS

90652-HC4-003

$5.95

20

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

21

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

22

CLAMP, HARNESS

90690-MEF-800

$1.49

23

STRAP, WIRE HARNESS (NOT AVAILABLE)

90690-K2K-D01

$1.49

24

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$23.15

25

FUSE, MINI (10A)

98200-41000

$1.49

26

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49

27

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67

28

BAND, TOOL

89012-GFM-900

$4.67

29

BLUETOOTH UNIT

38350-K0Z-918

$101.62

30

CUSHION

38351-MLL-D00

$4.46

31

SENSOR, AMBIENT

80525-K1W-V11

$8.21

32

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.18

33

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$6.13
