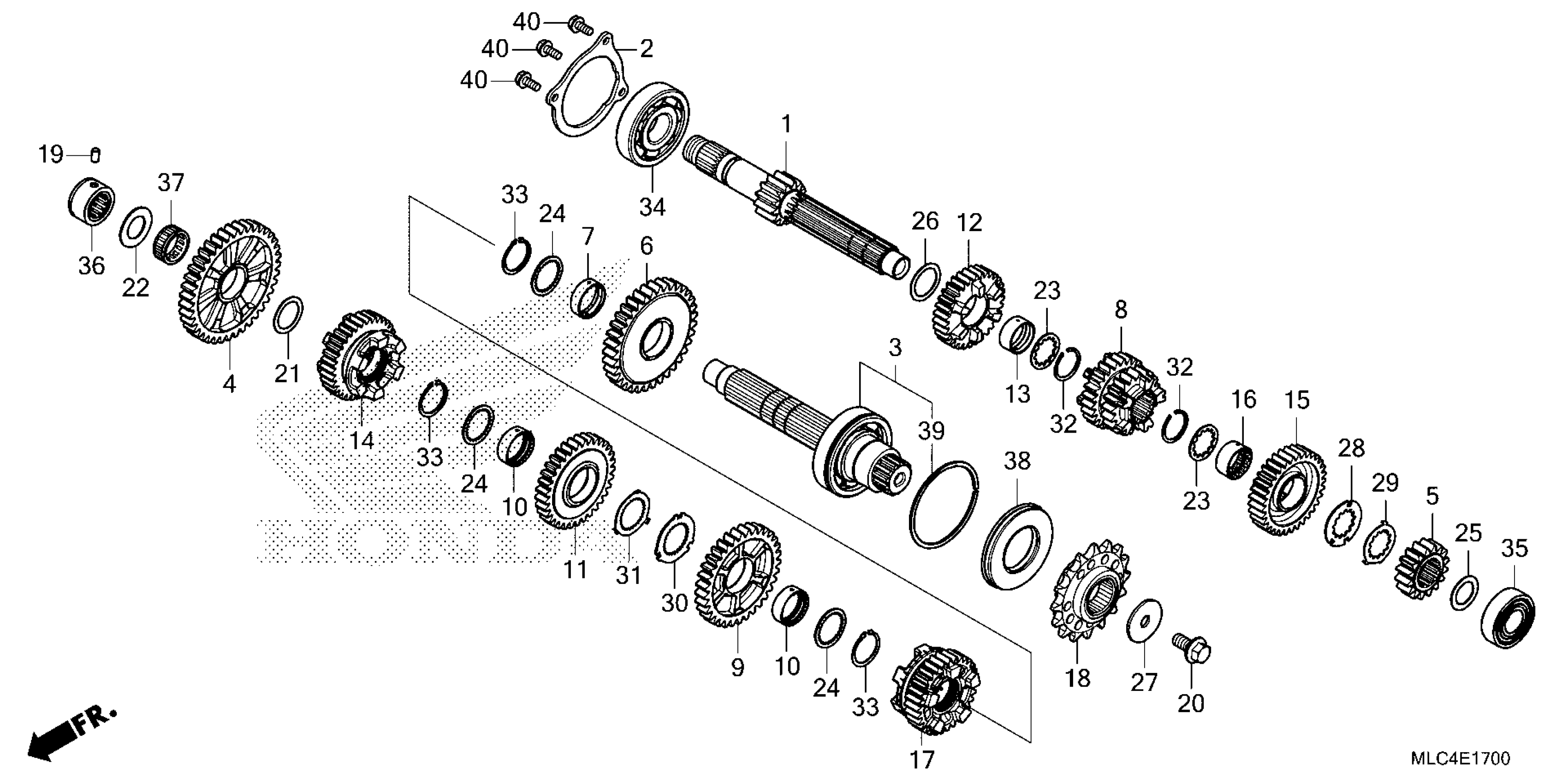

Honda XL7503AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 TRANSMISSION Diagram

#

Description
Price

1

SHAFT, MAIN

23211-MLB-D00

$111.91

2

PLATE

23212-MLB-D00

$4.16

3

COUNTERSHAFT COMP

23220-MLB-D00

$126.87

4

GEAR (C-1)

23421-MLB-D00

$82.13

5

GEAR (M-2)

23431-MLB-D00

$40.00

6

GEAR (C-2)

23441-MLB-D00

$82.13

7

COLLAR (28MM)

23442-MM4-000

$19.99

8

GEAR (M-3) (M-4)

23451-MLB-D00

$97.03

9

GEAR (C-3)

23461-MLB-D00

$78.14

10

COLLAR (28X31X10)

23462-MLB-D00

$12.78

11

GEAR (C-4)

23481-MLB-D00

$78.14

12

GEAR (M-5)

23491-MLB-D00

$79.49

13

COLLAR (25X28X12)

23492-MGZ-J00

$12.19

14

GEAR (C-5)

23501-MLB-D00

$88.91

15

GEAR (M-6)

23511-MLB-D00

$79.49

16

COLLAR, SPLINE (25X28X13)

23512-MV9-670

$24.70

17

GEAR (C-6)

23521-MLB-D00

$88.91

18

SPROCKET (16T)

23801-MLB-D00

$32.77

19

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$3.92

20

BOLT, SPECIAL (10MM)

90037-422-003

$6.82

21

WASHER, THRUST (24MM)

90402-HA5-000

$3.41

22

WASHER

90451-MKW-D00

$2.14

23

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.55

24

WASHER, SPLINE (28X27X1)

90452-MKR-D10

$3.09

25

WASHER, THRUST (20X1.00)

90454-428-000

$2.42

26

WASHER, THRUST (25MM)

90456-MA6-000

$2.42

27

WASHER (10.2MM)

90459-438-000

$5.43

28

WASHER, SPLINE (25MM)

90461-KY2-000

$4.87

29

WASHER, LOCK (25MM)

90462-KAZ-000

$8.48

30

WASHER (28MM) (M1.0)

90463-MLB-D00

$2.58

31

WASHER (28MM) (M1.0)

90464-MLB-D00

$2.58

32

CIRCLIP (25MM)

90601-107-000

$3.49

33

CIRCLIP (28MM)

90603-MN4-000

$3.49

34

BRG (63/28)

91001-MLB-D01

$30.26

35

BEARING, RADIAL BALL (6204U)

91006-MGS-D31

$15.78

36

BEARING, NEEDLE (20MM) (NTN)

91022-MJE-DB1

$39.80

37

BEARING, NEEDLE (24X28X10)

91026-MEL-003

$9.90

38

OIL SEAL (39X72X8)

91207-MBB-013

$11.50

39

RING, SNAP (72MM)

94560-72200

$3.41

40

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91
