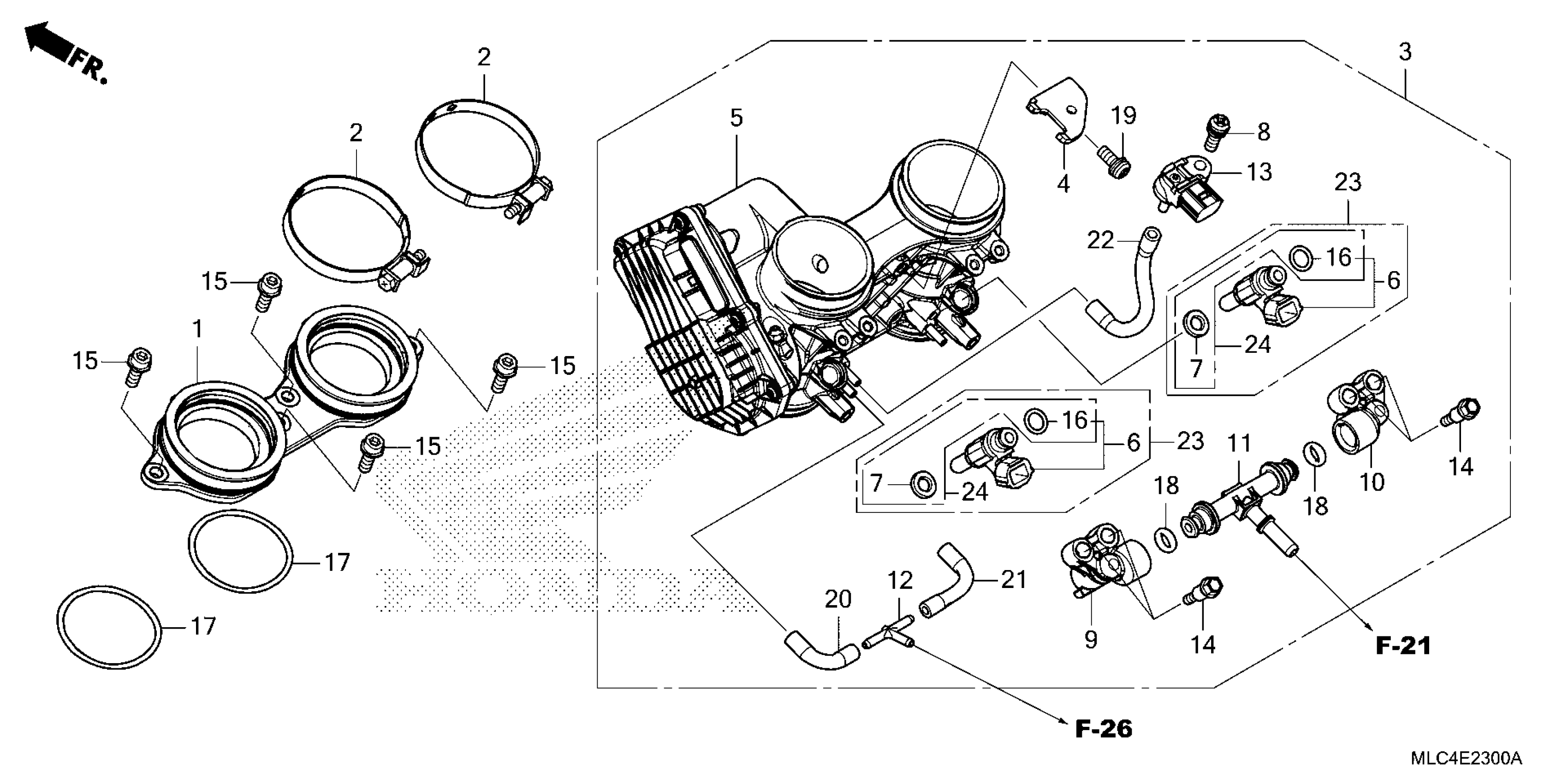

Honda XL7503AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 THROTTLE BODY Diagram

INSULATOR COMP

16210-MLB-D00

$47.46

BAND, INSULATOR

16218-MKK-D00

$9.75

BODY ASSY. (GNJ8A A)

16400-MLB-D21

$793.21

STAY, MAP SENSOR

16402-MLB-D01

$5.03

BODY SET

16410-MLB-D21

$557.35

GROMMET

16472-MLA-BA1

$7.62

BOLT-WASHER (6X18)

16542-MEL-003

$3.06

PIPE, FUEL

16610-MLA-BA1

$20.65

PIPE, FUEL

16620-MLA-BA1

$20.65

T-JOINT, FUEL

16630-MLB-D01

$22.41

JOINT, VACUUM TUBE (A)

17201-MG9-000

$14.63

SENSOR ASSY., MAP

37830-MLB-D01

$56.09

BOLT, SHOULDER

90021-MGZ-D02

$2.68

BOLT, FLANGE SOCKET (6X16)

90071-MEL-000

$2.07

O-RING

91301-MKT-D71

$1.85

O-RING (49.3X2.5)

91301-MKS-E00

$6.50

O-RING (7.47X3.6)

91301-PLC-000

$2.96

SCREW-WASHER (6X14)

93892-06014-18

$0.82

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.77

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.77

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.77

INJECTOR ASSY., FUEL

16450-MLB-D21

$87.01

SEAL SET, INJECTOR

16470-MLA-BA1

$29.10
