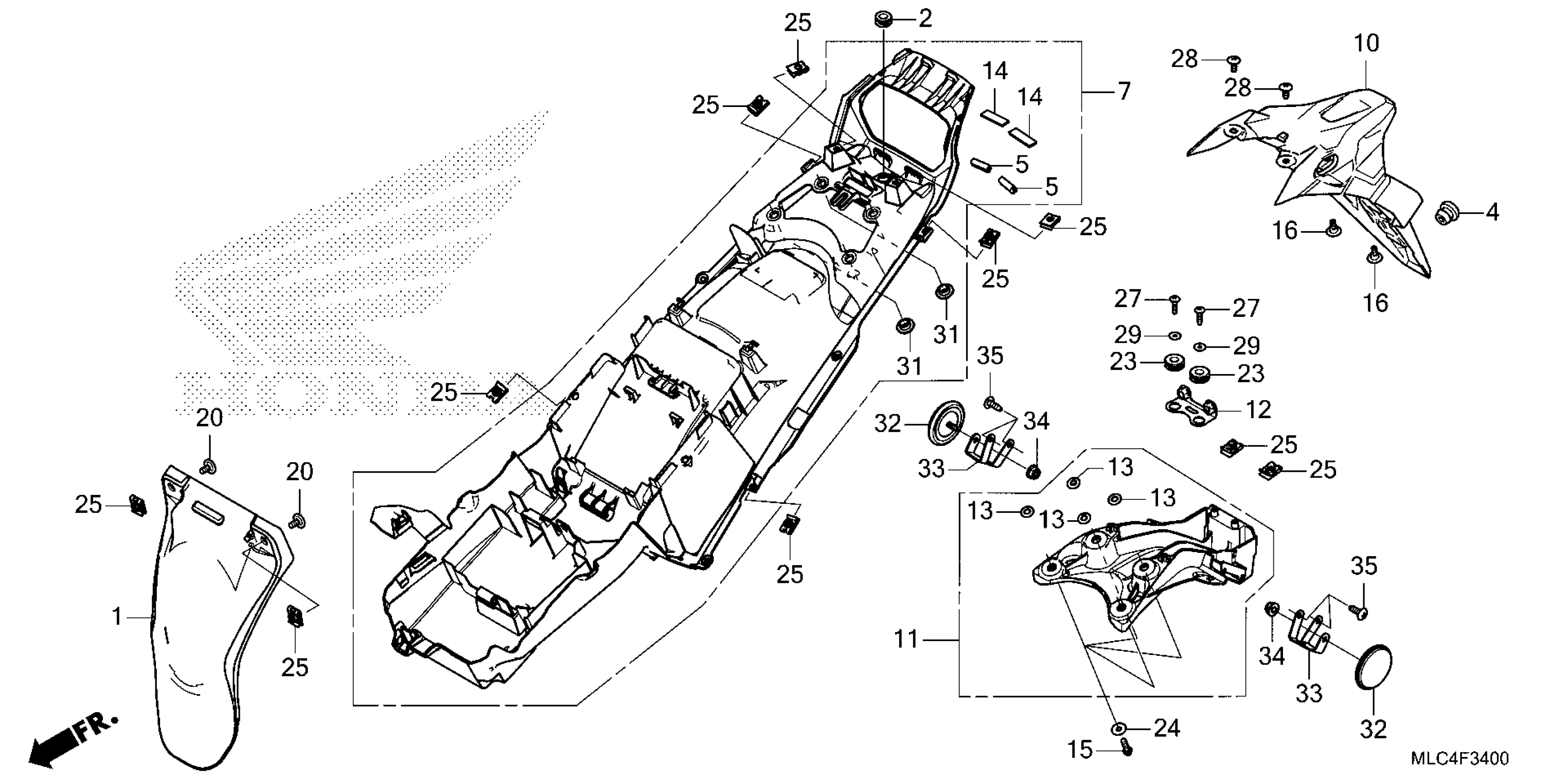

Honda XL7503AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 REAR FENDER Diagram

GUARD, MUD

17218-MLC-D00

$38.72

RUBBER, MOUNTING

19639-GBC-000

$1.28

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.77

PROTECTOR, RUBBER

77212-MFJ-D00

$1.58

FENDER COMP B, RR.

80105-MLC-D00

$110.45

FENDER A, RR.

80110-MKS-C00

$63.72

STAY, FENDER A

80115-MKS-E00

$85.23

BRACKET, LICENSE LIGHT

80116-MKS-E00

$6.59

COLLAR, FENDER

80118-MFJ-D00

$3.86

RUBBER, RR. FRAME

80129-MEG-000

$1.30

BOLT, FLANGE (6X22)

90020-GHB-670

$2.12

SCREW, SPECIAL (5X14)

90113-MGP-D00

$1.86

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.26

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$2.85

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.67

NUT, CLIP (5MM)

90677-KAN-961

$3.79

SCREW, TAPPING (4X16)

93903-24480

$0.83

SCREW, TAPPING (5X12)

93903-25280

$1.23

WASHER, PLAIN (4MM)

94103-04700

$0.86

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$4.76

REFLECTOR, RR. REFLEX (RED)(THAI STANLEY)

33741-K2E-A01

$21.46

STAY, RR. REFLECTOR

80117-MKS-A00

$11.19

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.79

SCREW, TAPPING (5X12)

93903-35280

$0.75
