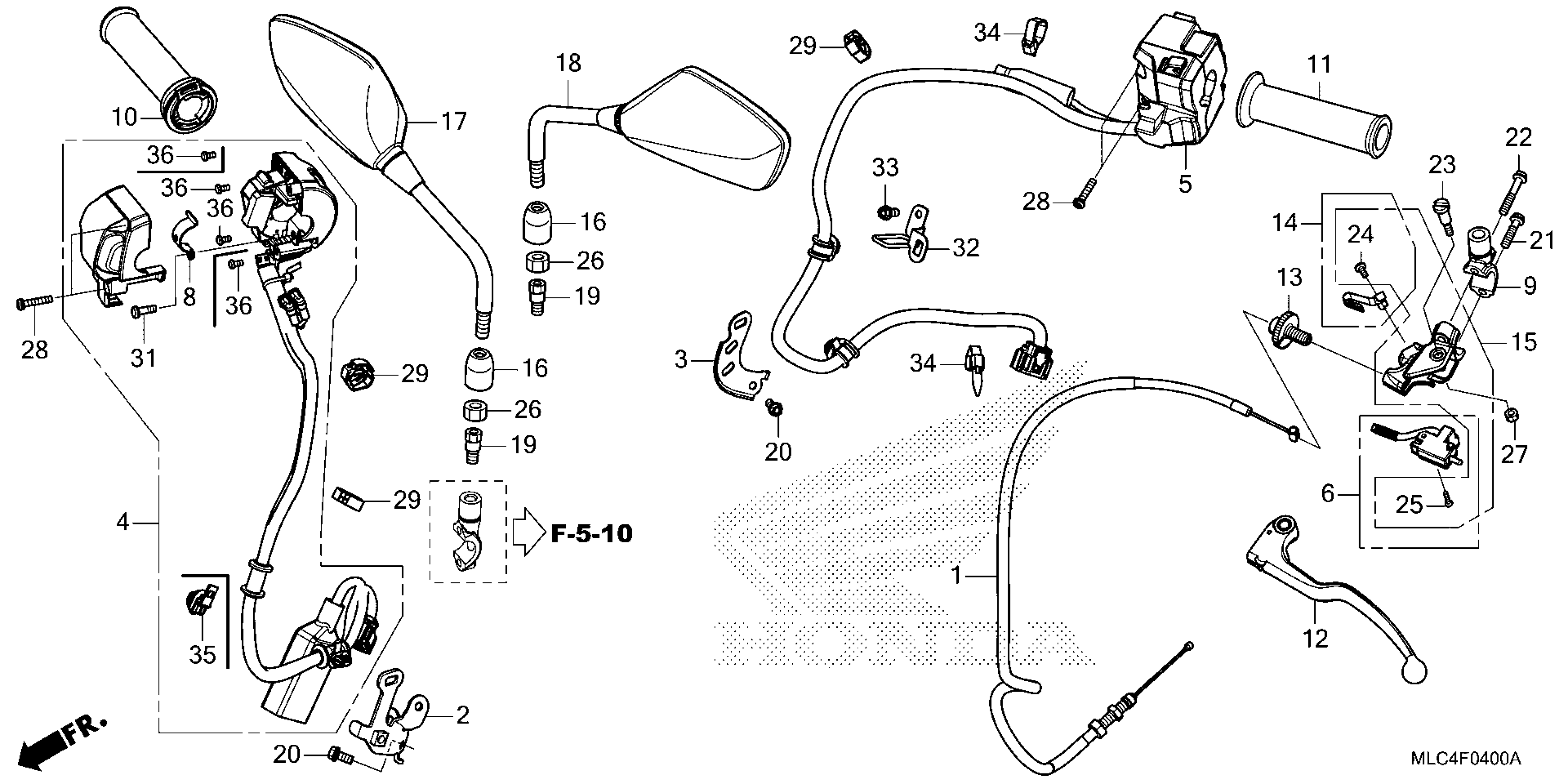

Honda XL7503AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 HANDLE SWITCH@GRIP@CABLE @MIRROR Diagram

#

Description
Price

1

CABLE COMP, CLUTCH

22870-MLC-D01

$16.75

2

STAY, R HARNESS CLIP

32150-MLC-D00

$9.29

3

STAY, L HARNESS CLIP

32155-MLB-D00

$5.26

4

SWITCH UNIT

35135-MLC-D32

$187.44

5

SWITCH, TURN SIGNAL

35200-MLC-D31

$137.22

6

SW SET, CLUTCH

35335-MLC-D00

$14.47

8

PLATE A, SETTING

37971-MLL-D01

$2.82

9

HOLDER, MASTER CYLINDER

45518-MFN-D01

$11.39

10

GRIP ASSY., THROTTLE

53140-K64-N01

$27.93

11

GRIP, L. HANDLE

53150-MGS-D30

$11.13

12

LEVER, L. HANDLE

53182-MCJ-750

$22.00

13

BOLT, CABLE ADJUSTING

53183-MCJ-750

$7.13

14

SPRING SET, CLUTCH LEVER

53190-MCJ-751

$3.84

15

BRACKET SET

53195-MKJ-E50

$30.87

16

COVER, LOCK NUT

88130-MFG-D00

$1.59

17

MIRROR COMP R

88210-MLC-D00

$65.07

18

MIRROR COMP L

88220-MLC-D00

$65.07

19

BOLT, ADAPTER (10MM)

90003-MW3-620

$7.45

20

BOLT, FLANGE (6X12)

90021-GHB-620

$2.06

21

BOLT, FLANGE (6X22)

90021-GHB-670

$2.01

22

BOLT, FLANGE (6X32)

90021-GHB-710

$2.29

23

BOLT, LEVER PIVOT

90122-MCJ-750

$4.59

24

SCREW, PAN (4X10)

90123-MCJ-751

$0.85

25

SCREW, PAN (3X20)

90124-MKJ-E51

$1.19

26

NUT, HEX. (10MM) (LEFT HAND THREAD)

90201-MW3-620

$4.20

27

NUT, U (6MM)

90301-MCJ-750

$2.09

28

SCREW-WASHER (5X25)

90508-MGE-D00

$1.19

29

CLAMP, HARNESS

90690-MEF-800

$1.21

31

SCREW-WASHER (5X8)

93892-05008-08

$1.03

32

GUIDE, CABLE

35106-MLC-D00

$5.62

33

BOLT, FLANGE (6X12)

90021-GHB-620

$2.06

34

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

35

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

36

SCREW-WASHER (4X8)

93892-04008-08

$1.13

36

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.13
