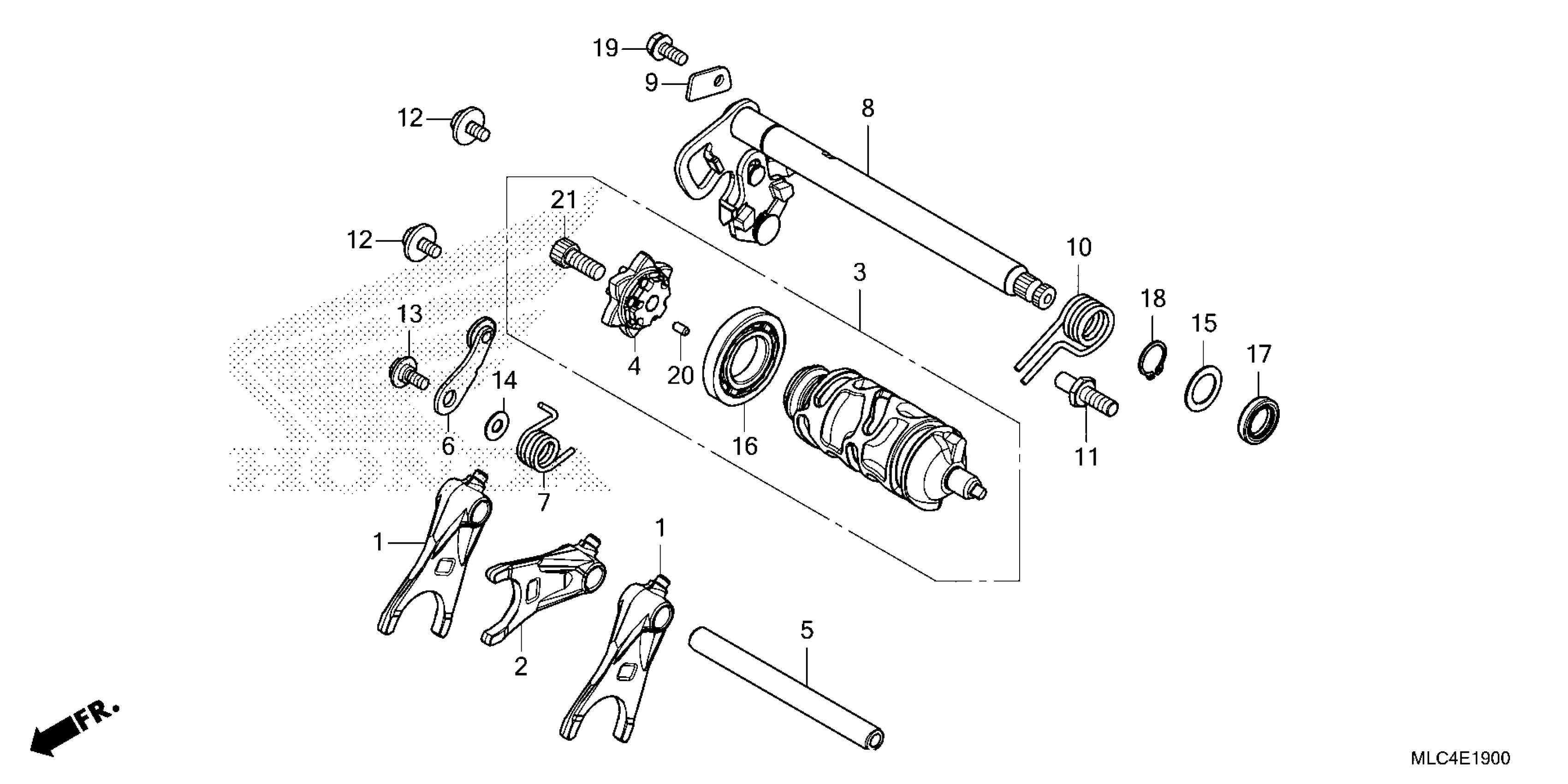

Honda XL7503AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 GEARSHIFT DRUM Diagram

FORK, GEARSHIFT

24211-MLB-D00

$46.46

FORK C, GEARSHIFT

24212-MLB-D00

$44.44

DRUM COMP, GEARSHIFT

24310-MLB-D00

$117.13

CENTER COMP

24315-MLB-D00

$31.93

SHAFT, GEARSHIFT FORK

24321-MEE-000

$17.92

STOPPER, GEARSHIFT DRUM

24430-MJP-G50

$15.18

SPRING

24435-MLB-D00

$3.30

SPINDLE, GEARSHIFT

24610-MLB-D20

$61.28

PLATE, SPINDLE SETTING

24613-MJP-G50

$2.85

SPG

24651-MLB-D00

$5.39

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$8.52

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-MR5-670

$2.33

WASHER, DRUM STOPPER

90417-360-000

$1.74

WASHER, THRUST (16MM)

90453-235-000

$1.83

BRG (25X50X8)

91007-MLB-D01

$15.10

OIL SEAL (16X24X5)

91201-MGS-D31

$10.16

CIRCLIP (OUTER) (16MM)

94510-16000

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

ROLLER (4X8)

96220-40080

$1.49

BOLT, SOCKET (8X20)

96600-08020-10

$2.13
