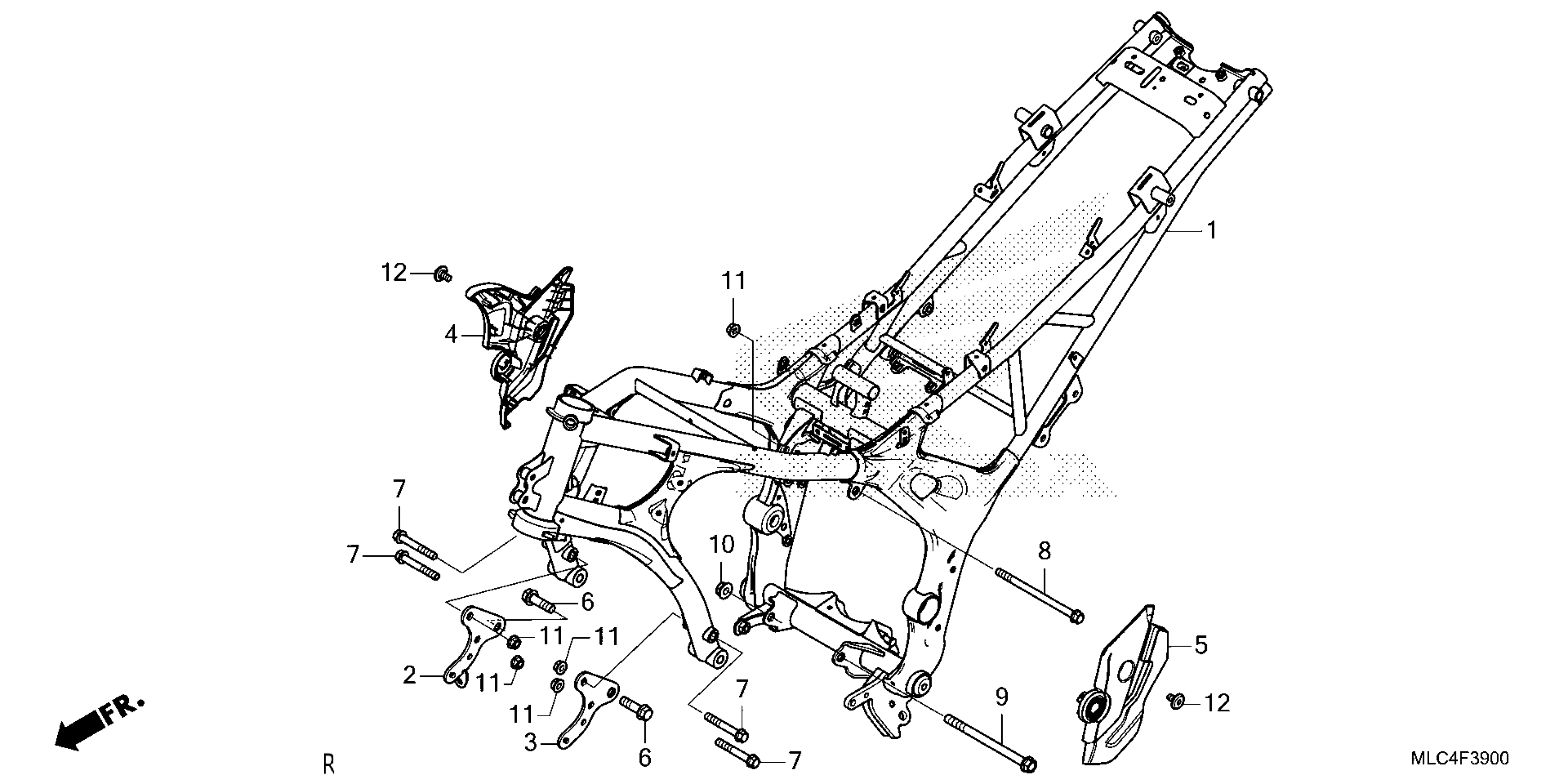

Honda XL7503AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 FRAME Diagram

#

Description
Price

1

FRAME *NHA86M*

50100-MLC-D30ZA

$1,424.86

2

PLATE COMP, FR.

50350-MLB-D00

$21.25

3

PLATE COMP, FR.

50360-MLB-D00

$21.25

4

COVER COMP, R PIVOT

50401-MLC-D00

$24.23

5

COVER, L PIVOT

50451-MLC-D00

$16.00

6

BOLT (12X40)

90101-MLB-D00

$3.62

7

BOLT (10X67)

90102-MLB-D00

$3.06

8

BOLT (10X156)

90103-MLB-D00

$6.10

9

BOLT, FLG (12X160)

90104-MLB-D00

$8.33

10

NUT, FLANGE (12MM)

90364-MEJ-000

$1.57

11

NUT, FLANGE (10MM)

90303-428-900

$3.12

11

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.12

12

BOLT, SPL (8X16)

90104-MLC-D00

$2.72
