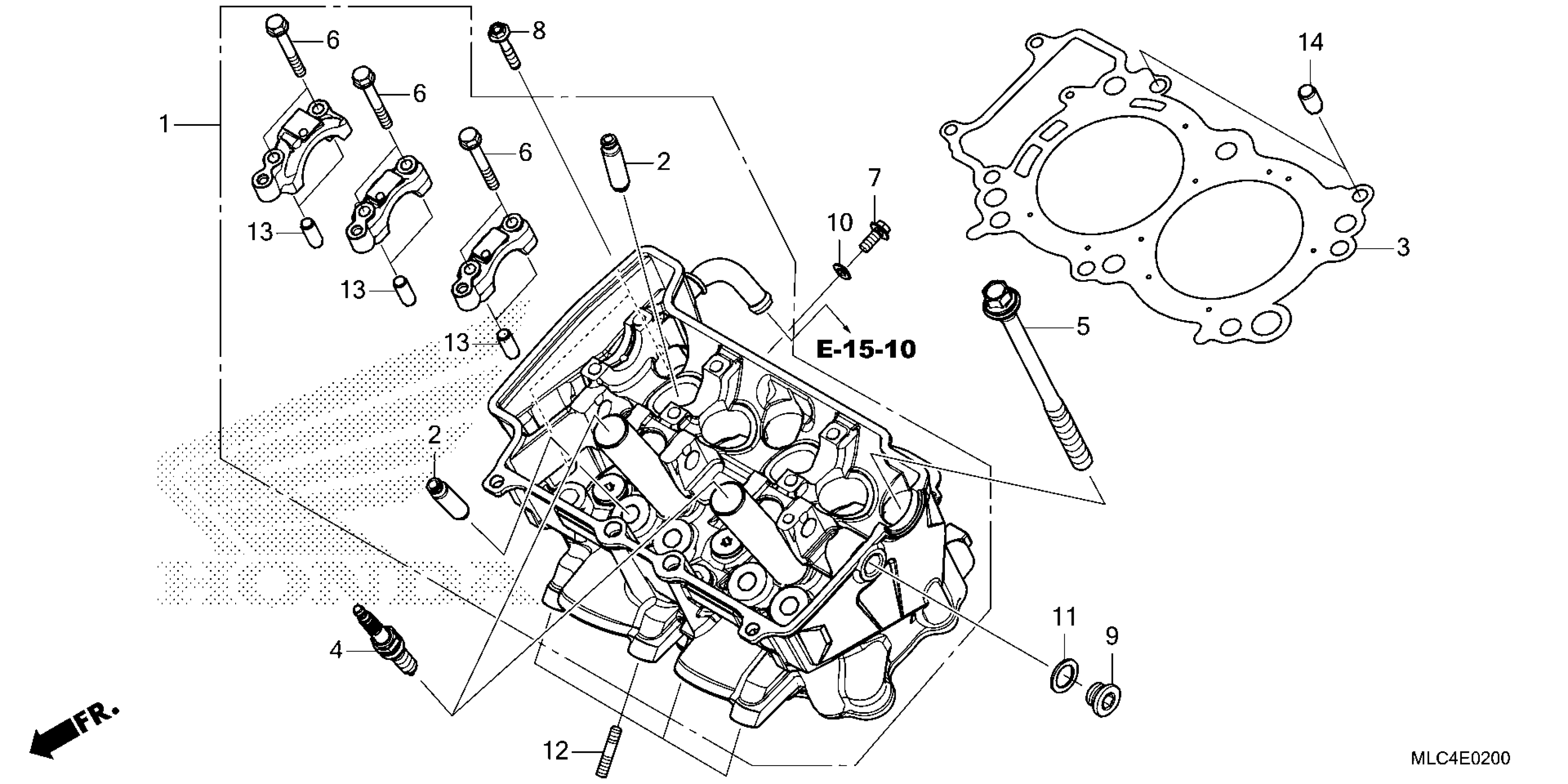

Honda XL7503AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 CYLINDER HEAD Diagram

#

Description

Price

1

CYLINDER HEAD ASSY.

12010-MLB-D20

$664.54

2

GUIDE, VALVE (OVER SIZE)

12204-HL4-305

$16.90

3

GASKET, CYL HD

12251-MLB-D01

$36.82

4

SPARK PLUG (SILMAR8A9S) (NGK)

31909-MJP-G51

$30.11

5

BOLT-WASHER (12X163)

90007-MLB-D00

$10.28

6

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

7

BOLT, FLANGE (6X14)

90028-GHB-630

$2.08

8

BOLT (6X32)

90028-GHB-710

$1.89

9

BOLT, SEALING (14MM)

90032-MJP-G50

$6.75

10

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

11

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

12

BOLT, STUD (8X25)

92900-08025-0B

$2.20

13

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.25

14

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28
