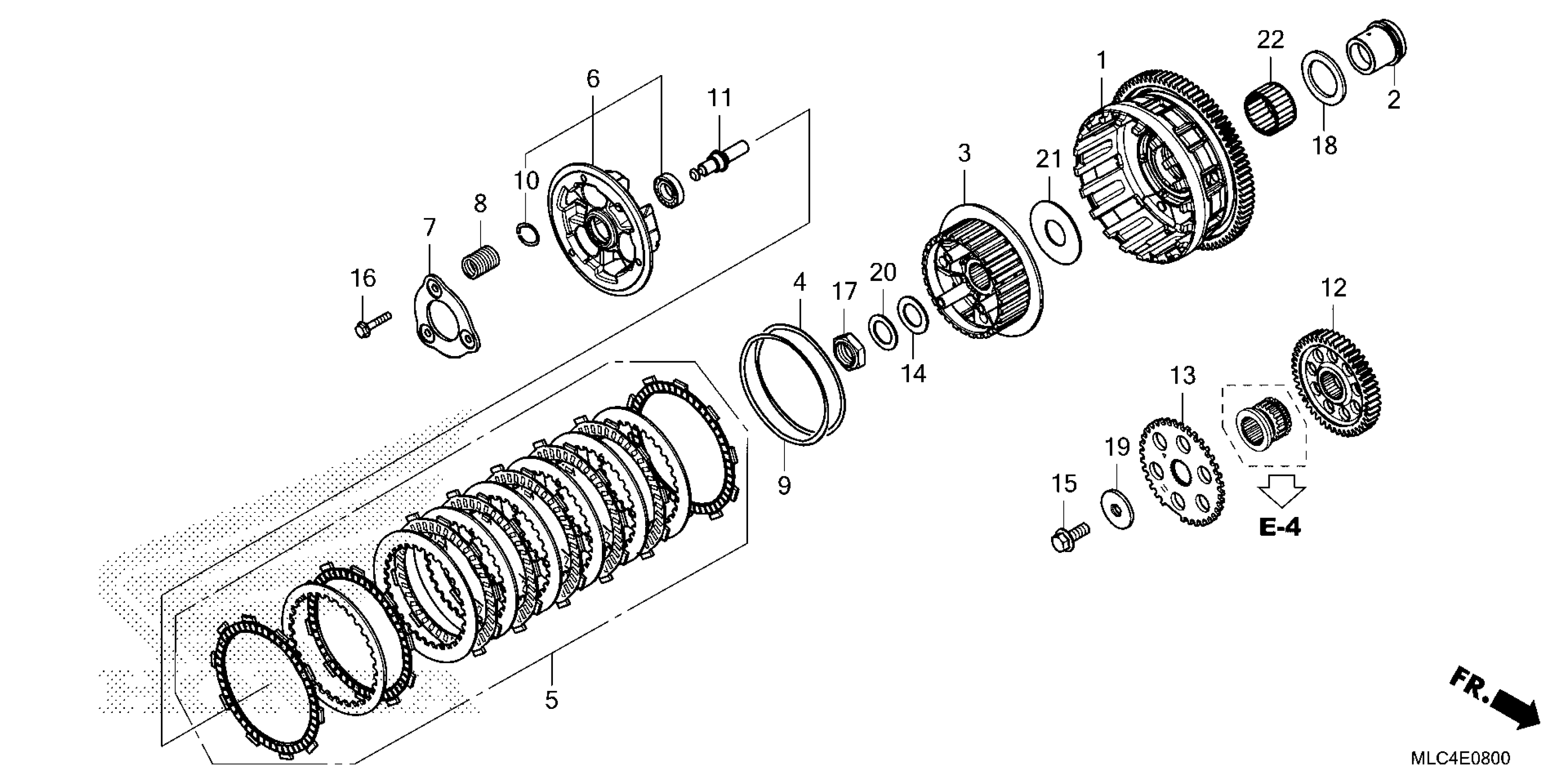

Honda XL7503AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 CLUTCH Diagram

Description

Price

CLUTCH OUTER COMP

22100-MLB-D01

$282.91

GUIDE, CLUTCH

22116-MLB-D00

$15.17

CENTER, CLUTCH

22121-MKZ-J01

$75.68

SEAT, JUDDER SPRING

22125-ML7-000

$9.59

DISK SET, CLUTCH

22210-MLB-305

$107.89

PLATE COMP

22350-MLB-D01

$70.70

PLATE, SETTING

22361-MKN-D11

$2.49

SPRING, CLUTCH

22401-MLB-D00

$4.17

SPRING, JUDDER

22402-K87-A31

$14.16

SEAT, CLUTCH SPRING

22425-MJP-G51

$10.54

PIN, CLUTCH LIFTER

22847-MLB-D00

$30.17

GEAR (45T)

23103-MLB-D20

$66.57

PLATE, CRANK PULSER

30291-MLB-D00

$18.09

WASHER, SWINGARM SIDE

52143-KZ3-860

$3.00

BOLT, SPECIAL (10X25)

90013-MJP-G50

$3.88

BOLT, FLANGE (6X30)

90050-MKZ-J01

$1.86

NUT, LOCK (22MM)

90231-MM5-000

$9.38

WASHER (35X50X3.2)

90401-MEA-670

$4.90

WASHER (10.5X40X5)

90414-MKT-D00

$6.09

WASHER, SPRING (22MM)

90432-MM5-000

$7.66

WASHER (60X25X2)

90459-MM4-000

$9.63

BEARING B, NEEDLE (35X41X23.8) (WHITE)

91102-MEE-003

$6.09
