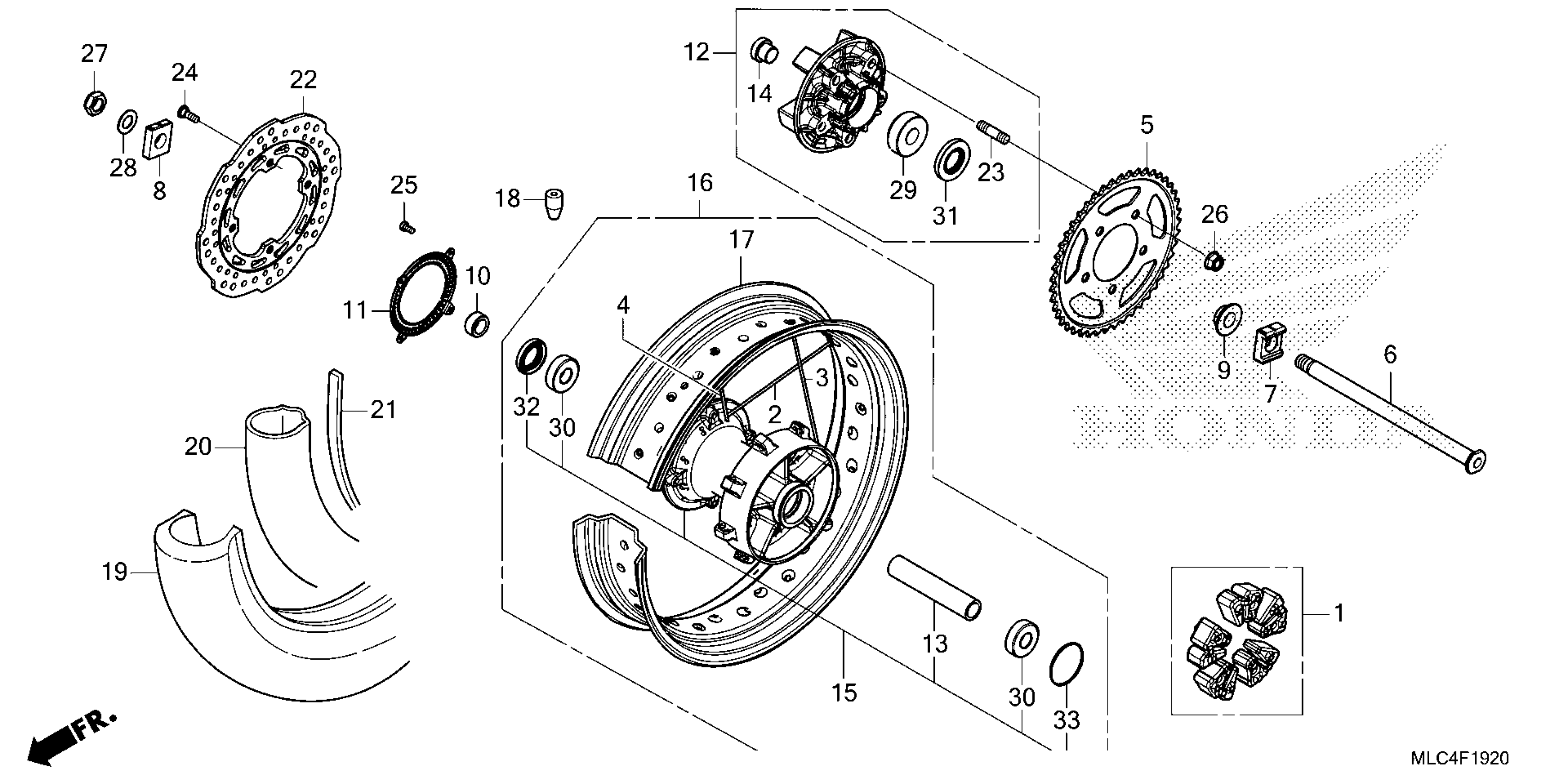

Honda XL7502AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MBB-000

$38.94

2

SPOKE SET A, RR. (R. OUTSIDE)

06420-MKK-D00

$5.38

3

SPOKE SET B, RR. (L. SIDE)

06421-MKK-D00

$5.38

4

SPOKE SET C, RR. (R. INSIDE)

06422-MKK-D00

$5.38

5

SPROCKET (45T)

41201-MLC-D00

$48.26

6

AXLE, RR. WHEEL

42301-MKS-E00

$45.80

7

COLLAR, L. RR. AXLE

42305-MKS-E00

$27.64

8

COLLAR, R. RR. AXLE

42306-MKS-E00

$23.81

9

COLLAR, L. RR. WHEEL SIDE

42311-MGS-D10

$19.32

10

COLLAR, RR. BRAKE SIDE

42312-MGS-D10

$14.03

11

RING, RR. PULSER

42515-MKS-E00

$51.52

12

FLANGE SUB-ASSY.

42615-MLC-D00

$154.16

13

COLLAR, RR. AXLE DISTANCE

42620-MKS-E20

$29.87

14

COLLAR B, RR. WHEEL DISTANCE

42625-MJP-G50

$15.12

15

HUB SUB-ASSY., RR.

42635-MLC-D00

$456.51

16

WHEEL SUB-ASSY., RR.

42650-MLC-D10

$820.93

17

RIM, RR. WHEEL

42701-MKK-DA2

$348.70

18

WEIGHT, BALANCE (15G)

42704-MEG-003

$7.52

19

TIRE, RR. (150/70R18 M/C 70H) (METZELER)

42711-MKS-E02

$309.10

19

TIRE, RR.

42711-MLC-D02

$181.87

20

TUBE, TIRE This part replaces 42712-MGC-N23.

42712-MGC-N22

$33.64

20

TUBE, TIRE (METZELER)

42712-MKS-E02

$36.12

21

FLAP, TIRE (DUNLOP)

42713-MGC-N21

$4.78

21

FLAP

42713-MKS-E02

$5.06

22

DISK, RR. BRAKE (YUTAKA)

43251-MJP-G51

$295.62

23

BOLT 2, STUD (12X25)

90102-MAS-000

$3.73

24

BOLT (8X24)

90108-MLB-D00

$3.21

25

BOLT, TORX (5X8)

90131-MGE-000

$2.80

26

NUT U, FLANGE (12MM)

90302-MKT-D01

$3.36

27

NUT, U (18MM)

90306-MCS-G01

$6.35

28

WASHER (18X32X2)

90401-KZ4-890

$4.16

29

BEARING, RADIAL BALL (63/22)

91051-MAS-003

$35.95

30

BEARING, RADIAL BALL (6204UU) (NSK)

91053-MKY-D51

$13.62

31

DUST SEAL (30X56X7.5)

91252-MAS-003

$10.89

32

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$10.89

32

DUST SEAL (30X47X8) (NOK)

91253-443-762

$10.89

33

O-RING (55X2)

91351-MGS-D30

$2.80
