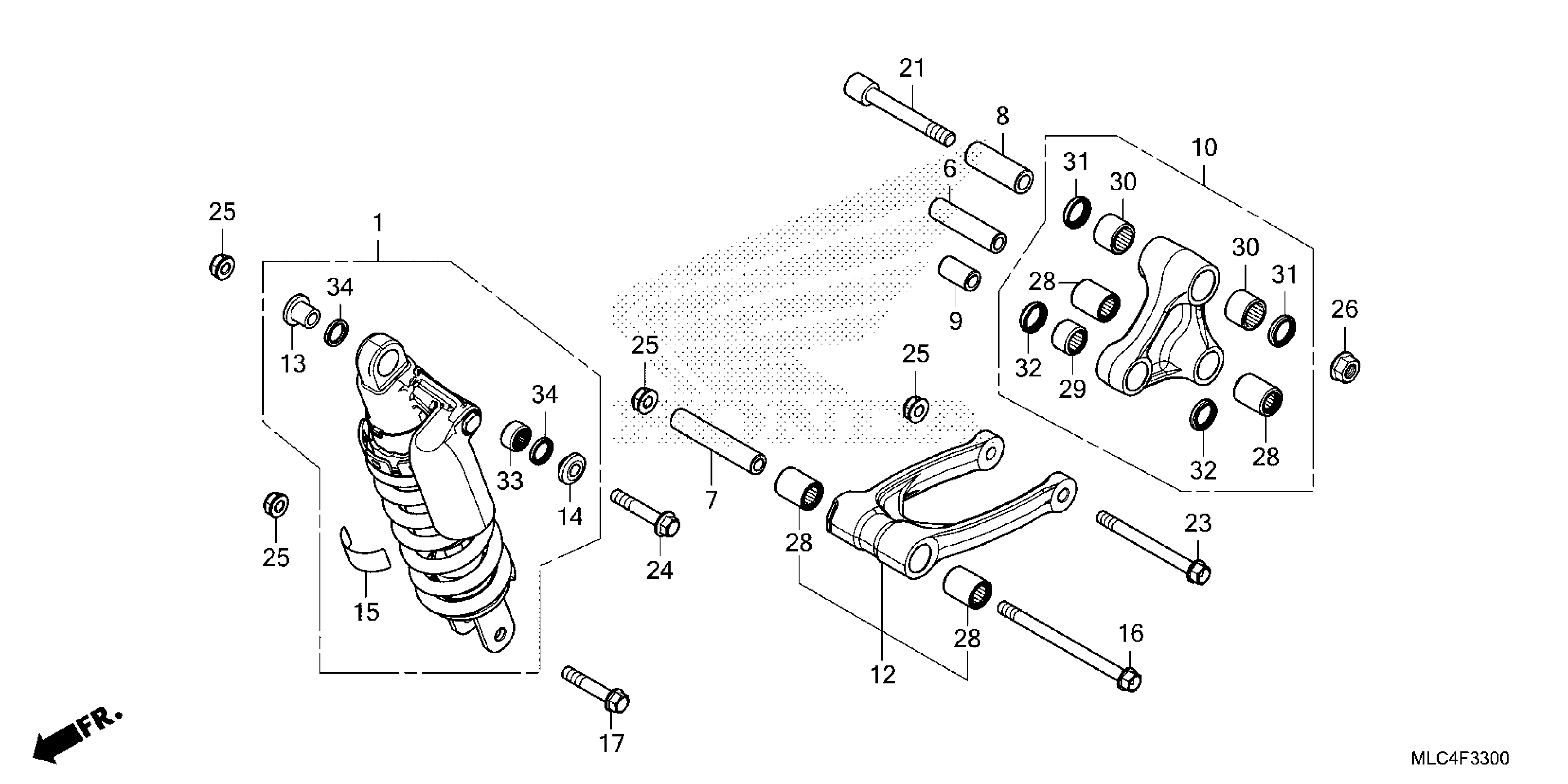

Honda XL7502AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 REAR SHOCK ABSORBER Diagram

CUSHION ASSY., RR.

52400-MLC-M02

$995.18

COLLAR B, CUSHION ARM

52462-MJP-G50

$11.20

COLLAR B, CUSHION ARM

52463-MGS-D10

$12.97

COLLAR C, CUSHION ARM

52463-MJP-G50

$11.59

COLLAR D, CUSHION ARM

52464-MJP-G50

$7.36

ARM SUB-ASSY., CUSHION

52465-MKK-D00

$344.75

ROD SUB-ASSY., CUSHION CONNECTING

52475-MJP-G50

$208.92

COLLAR A, RR. SHOCK

52486-MCB-611

$4.38

COLLAR B, RR. SHOCK

52487-MCB-611

$3.62

LABEL, RR. DAMPER

87516-MBL-610

$4.31

BOLT (10X115)

90121-MLC-D00

$6.82

BOLT (10X53)

90122-MLC-D00

$3.11

BOLT, SOCKET (12X91)

90128-MJP-G50

$14.38

BOLT, FLG (10X106)

90130-MLG-E00

$6.74

BOLT, FLANGE (10X55)

90153-KF0-000

$9.92

NUT, U FLANGE (10MM)

90305-MLB-D01

$2.41

NUT, U FLANGE (12MM)

90305-MLC-D01

$3.57

BEARING, NEEDLE (17X24X30)

91052-MGS-D31

$9.78

BEARING (17X24X17)

91071-K45-NL1

$13.23

BEARING, NEEDLE (20X26X20)

91071-KSP-901

$2.62

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

BEARING, NEEDLE (16X22X12)

91077-GS2-702

$19.89

DUST SEAL, RR. CUSHION (UPPER)

91351-GS2-701

$4.48
