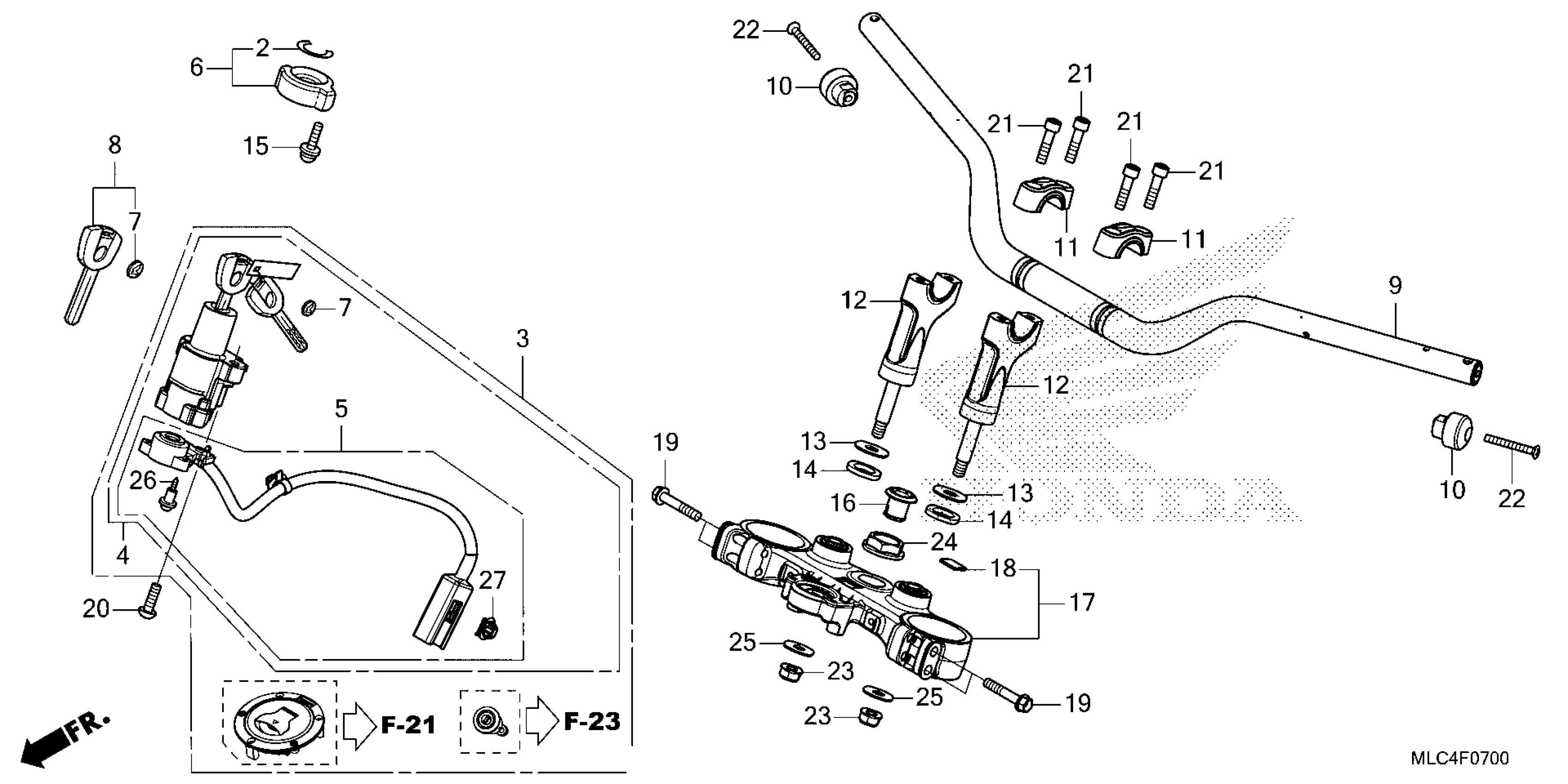

Honda XL7502AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 HANDLEBAR@TOP BRIDGE Diagram

Description

Price

SEAL, IGNITION SWITCH

30433-MBW-602

$2.58

LOCK SET

35010-MLC-A00

$334.28

SWITCH ASSY.

35100-MLC-A01

$116.78

BASE COMP, CONTACT

35101-MLB-D01

$57.32

COVER, COMBINATION SWITCH

35106-MAT-A00

$9.44

EMBLEM, KEY | (Optional).

35113-MJE-D00

$19.80

KEY, BLANK | (Optional).

35121-MJE-A02

$19.74

HANDLEBAR

53100-MLC-D30

$122.36

WEIGHT, STRG.HNDL

53104-MLC-D00

$18.86

HOLDER, HANDLE (UPPER) NHA40M (MAT KRYPTON SILVER METALLIC)

53131-K94-T00ZE

$10.48

HLDR, HNDL NHA40M

53132-MLC-D00ZC

$65.40

WASHER, HANDLE HOLDER

53135-MJP-G50

$1.68

RUBBER, HANDLE HOLDER

53136-MJP-G50

$2.03

SCREW-WASHER (5X25)

53192-MFL-000

$1.68

CAP, STEERING NUT

53232-K94-T00

$2.00

BRIDGE COMP

53300-MLC-D00

$181.86

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.37

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$3.65

BOLT (8X45)

90105-MLC-D00

$2.19

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

BOLT, SOCKET (8X32)

90155-K87-A00

$0.83

SCREW, OVAL (6X50) SCREW, OVAL (6X55)

90191-MJ0-000

$3.18

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.42

NUT, STEERING STEM FLANGE

90304-MCF-000

$9.83

WASHER, PLAIN (10MM)

90501-MJP-G50

$2.38

SCREW, TAPPING (3X16)

91059-KY2-711
