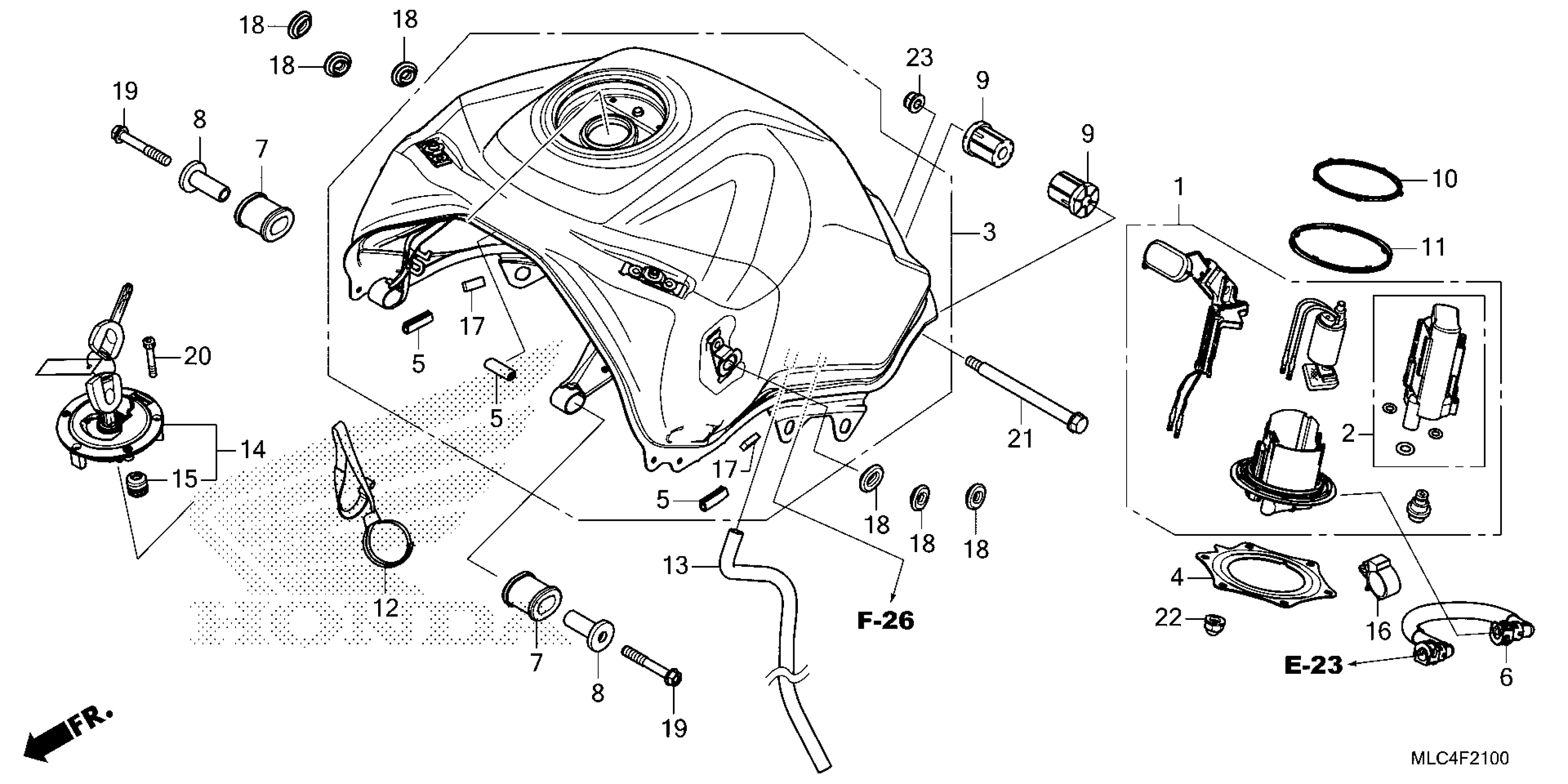

Honda XL7502AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 FUEL TANK@FUEL PUMP Diagram

UNIT, FUEL PUMP

16700-MLC-D01

$535.72

FILTER ASSY., FUEL

16730-MLB-D01

$36.33

TANK, FUEL (TYPE1)

17500-MLC-D30ZC

$623.87

PLATE

17506-MLB-D00

$8.34

TRIM, FUEL TANK *NH1* (BLACK)

17516-KCZ-000ZB

$2.02

HOSE COMP, FUEL FEED

17526-MLB-D01

$47.57

RUBBER, FR. TANK MOUNTING

17534-MKN-D50

$2.75

COLLAR

17538-KZZ-900

$2.41

CUSHION, RR. FUEL TANK PIVOT

17572-KPP-T00

$2.38

GASKET, FUEL PUMP

17572-MKT-D00

$20.49

DUST SEAL

17573-MKT-D00

$6.80

STRAP, FUEL TANK

17576-MLB-D00

$7.46

TUBE, TANK DRAIN

17590-MLB-D00

$17.80

CAP COMP

17620-MJS-J33

$243.95

SEAL, BREATHER

17621-MGP-D62

$5.14

CLIP, RETURN HOSE

53781-MKG-VB1

$1.49

RUBBER, TAILLIGHT

80103-MFE-670

$1.49

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

BOLT, FLANGE (6X40)

90021-GHB-740

$2.70

BOLT, SOCKET (4X24) (SUS)

90110-MGP-D60

$3.26

BOLT, TANK HINGE

90135-MS2-000

$6.22

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07
