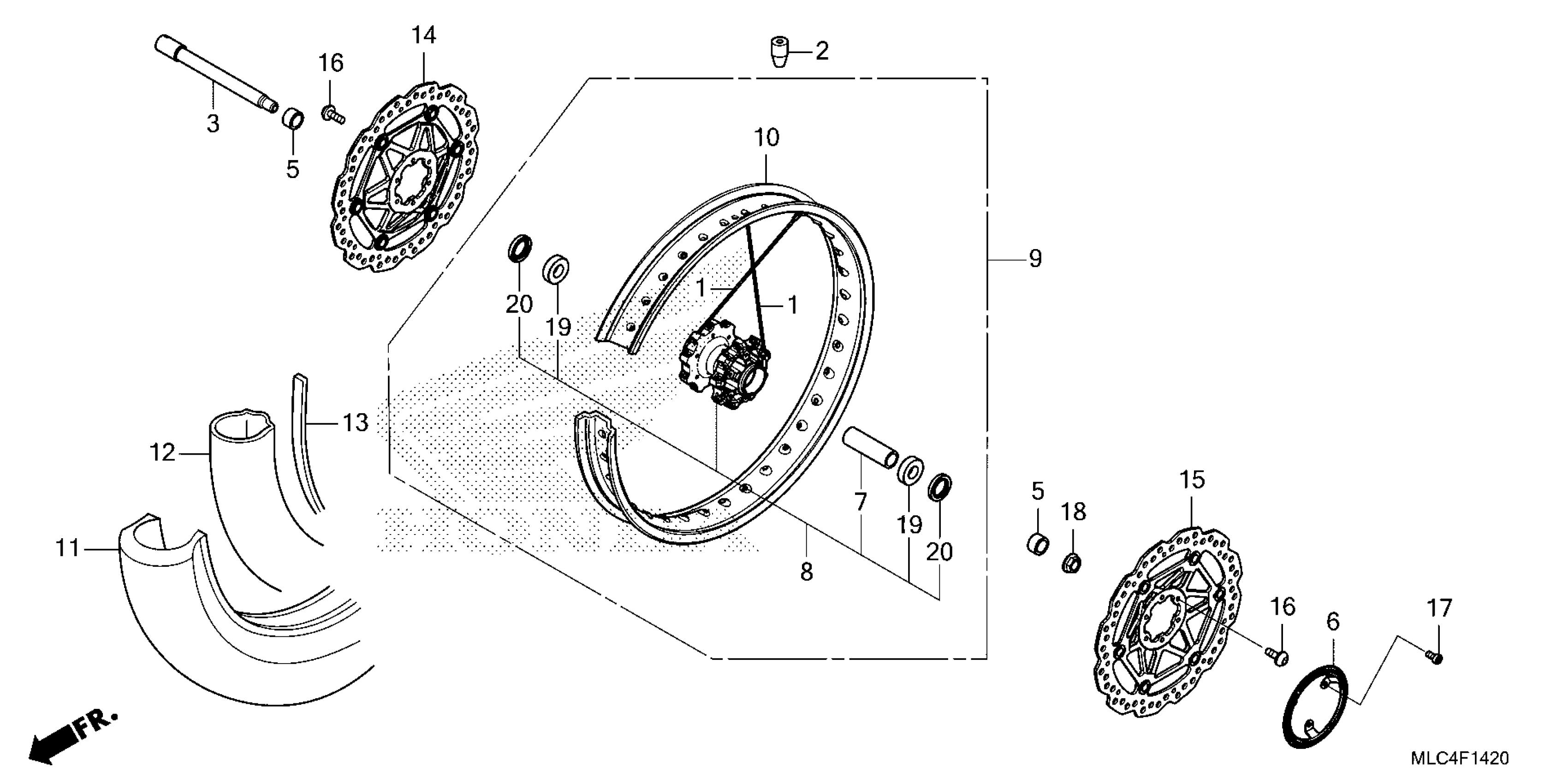

Honda XL7502AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 FRONT WHEEL Diagram

SPOKE SET, FR.

06440-MKK-D00

$5.92

WEIGHT, BALANCE (15G)

42704-MEG-003

$8.08

WEIGHT, BALANCE (20G)

42705-MEG-003

$8.08

AXLE, FR. WHEEL

44301-MKS-E00

$55.57

COLLAR, FR. WHEEL SIDE

44311-MJP-G50

$11.20

RING, FR. PULSER

44515-MKS-E00

$63.04

COLLAR, FR. AXLE DISTANCE

44620-MKS-E00

$22.82

HUB SUB-ASSY., FR.

44635-MKS-E00

$253.41

WHEEL SUB-ASSY., FR.

44650-MKS-ND0

$682.63

RIM, FR. WHEEL (21X2.15)

44701-MKK-DA2

$318.70

TIRE, FR. (90/90-21 M/C 54H) (METZELER)

44711-MKS-E02

$245.87

TIRE, FR.

44711-MLC-D02

$144.67

TUBE, TIRE (METZELER)

44712-MKS-E02

$35.25

TUBE, TIRE (DUNLOP)

44712-400-034

$44.01

FLAP, TIRE (80/100-21) (DUNLOP)

44713-KS6-641

$6.08

FLAP

44713-MKS-E02

$4.23

DISK, R. FR. BRAKE

45120-MLC-D31

$359.66

DISK, L. FR. BRAKE

45220-MLC-D31

$359.66

BOLT (6X17)

90103-MLC-D00

$2.10

BOLT, TORX (5X8)

90131-MGE-000

$2.92

NUT, FR. AXLE

90304-MJP-G50

$5.25

BEARING, RADIAL BALL (6004UU) (NTN CORP.)

91009-GE0-004

$14.88

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31
