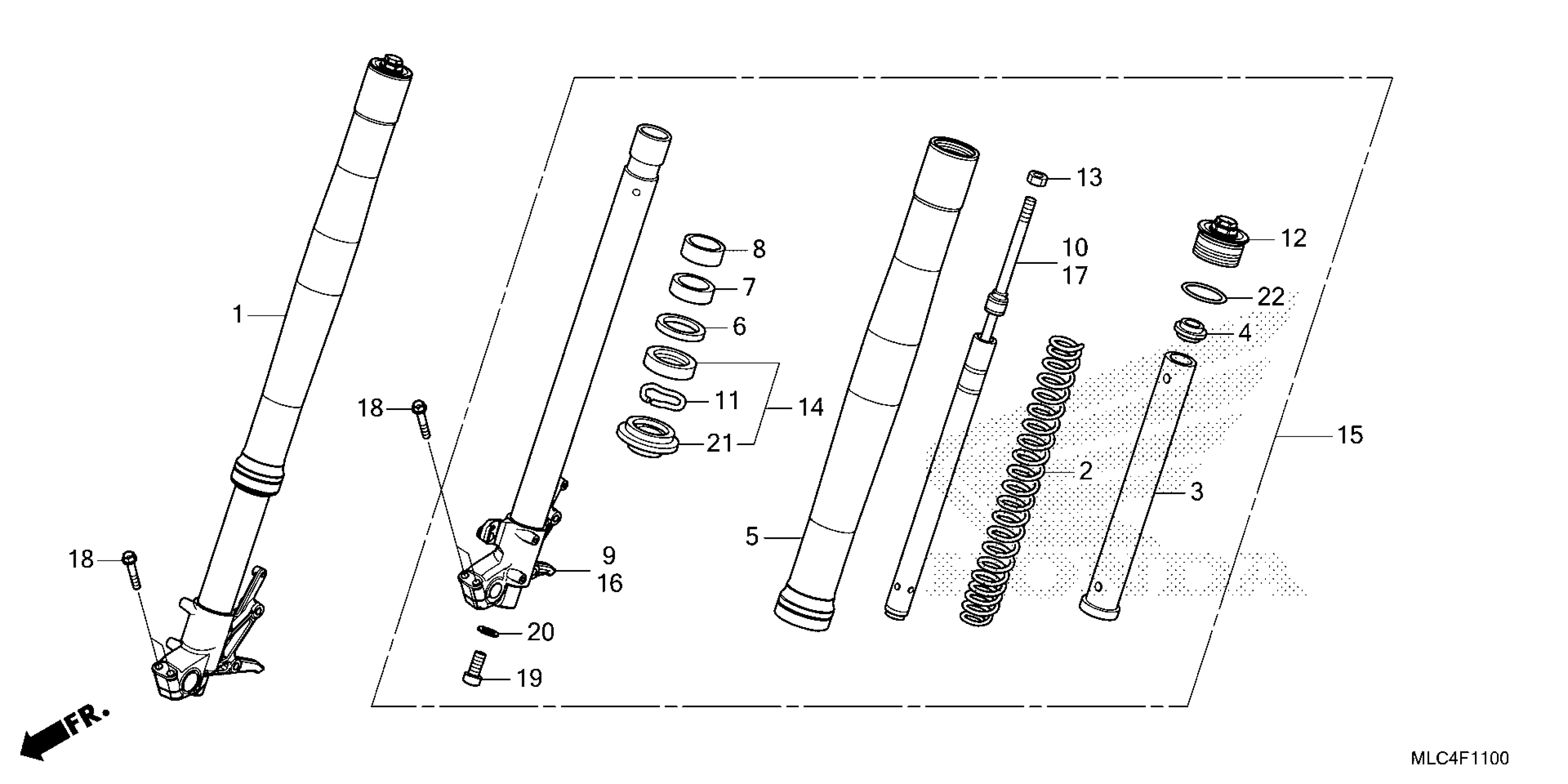

Honda XL7502AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 FRONT FORK Diagram

Description

Price

FORK ASSY., R. FR.

51400-MLC-D31

$909.34

SPRING, FR. R FORK

51401-MLC-D01

$46.57

COLLAR, SPRING

51403-MLC-D01

$15.57

STOPPER, SPRING SEAT

51406-MW4-003

$7.54

TUBE (OUTER)

51410-MLC-D01

$373.07

RING, BACK-UP

51412-KA4-711

$8.88

BUSH, GUIDE

51414-MFN-D01

$6.75

BUSH, SLIDER

51415-MFN-D01

$28.09

PIPE COMP, R SLIDE

51425-MLC-D01

$280.16

DAMPER, FR.

51430-MLC-D31

$292.91

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

BOLT COMP, FR. FORK

51450-MLC-D01

$115.54

NUT, HEX. (10MM)

51451-MAJ-G41

$2.68

SEAL SET, FR. FORK

51490-MLC-D01

$17.58

FORK ASSY., L. FR.

51500-MLC-D31

$909.34

PIPE COMP, L SLIDE

51525-MLC-D01

$268.15

DAMPER COMP, FR.

51530-MLC-D01

$298.42

BOLT (8X45)

90105-MLC-D00

$2.22

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

DUST SEAL

91254-MLC-D01

$11.90

O-RING (44.7X2.4)

91356-KZ3-003

$3.74
