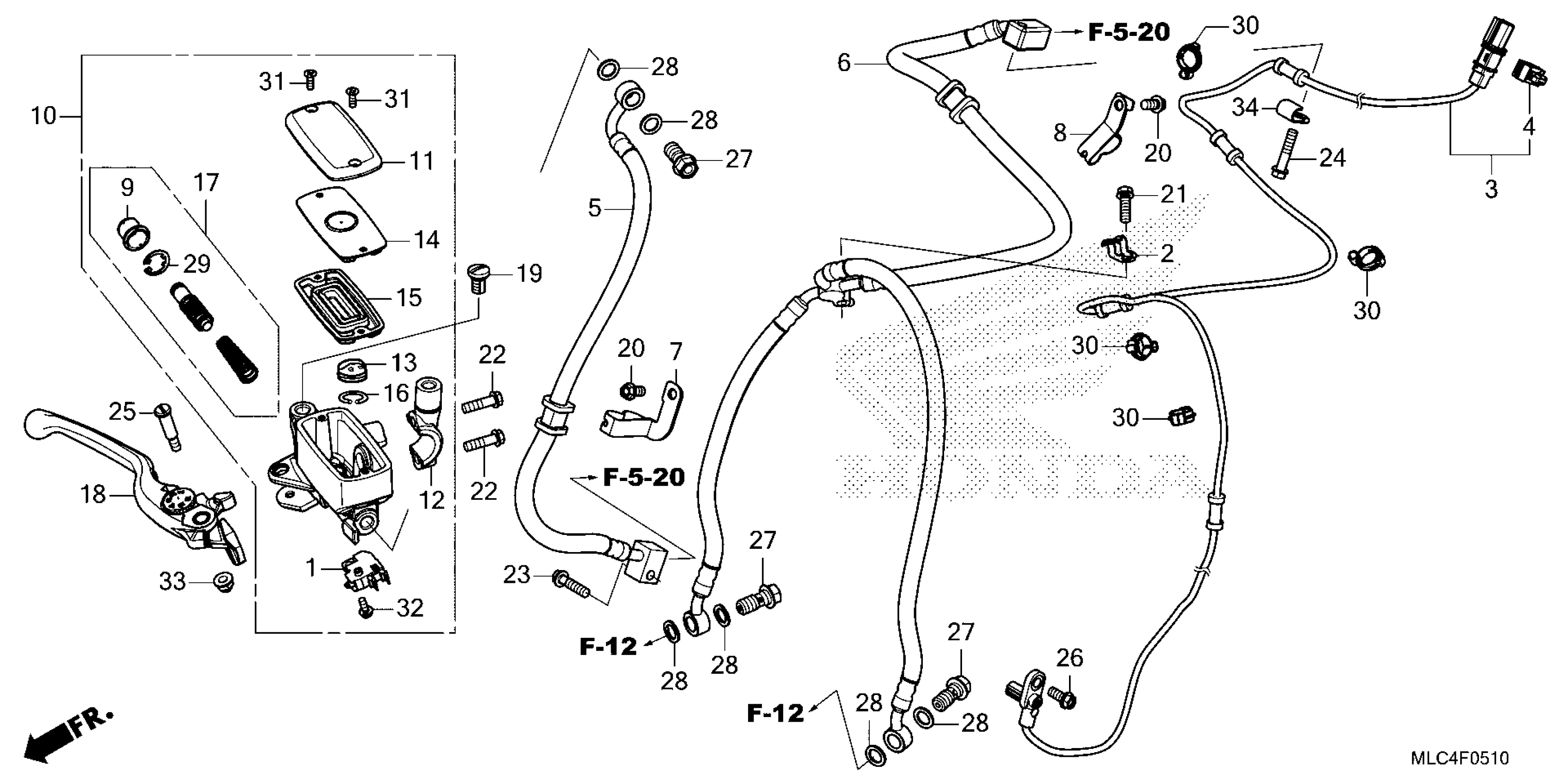

Honda XL7502AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

CLAMP, SENSOR WIRE

38514-MKK-D00

$3.85

SENSOR, FR. SPEED

38520-MLC-D31

$56.52

CLIP, CONNECTOR (DARK BLUE)

42524-T5A-003

$3.00

HOSE COMP A, FR. BRK

45125-MLC-D01

$42.10

HOSE COMP D, FR. BRK

45128-MLC-D01

$113.38

CLAMP A, FR.

45155-MLC-D00

$6.18

CLAMP B, FR.

45156-MLC-D00

$5.36

BOOT

45504-410-003

$12.16

SUB-ASSY., FR. M/C

45510-MLC-D01

$202.69

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MIRROR

45517-KFR-861

$12.43

SEPARATOR

45518-MEN-J01

$7.18

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

RING

45523-KA3-731

$2.92

MASTER CYLINDER SET

45530-MA4-671

$47.76

LEVER ASSY., R. HANDLE

53170-MKK-D01

$50.87

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

PLUG, HANDLE LEVER BRACKET This part replaces 53174-463-770.

53174-116-670

$2.48

BOLT, FLANGE (6X12)

90021-GHB-620

$2.23

BOLT, FLANGE (6X18)

90021-GHB-650

$2.26

BOLT, FLANGE (6X22)

90021-GHB-670

$2.18

BOLT, FLANGE (6X25)

90021-GHB-680

$2.26

BOLT, FLANGE (6X30)

90105-MEJ-D00

$1.85

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, FLANGE (6X14)

90117-MKS-E00

$2.31

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

CLIP, CABLE (12MM)

90690-MGS-D81

$2.23

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

CLAMP, SENSOR WIRE

38515-K94-T10

$1.49
