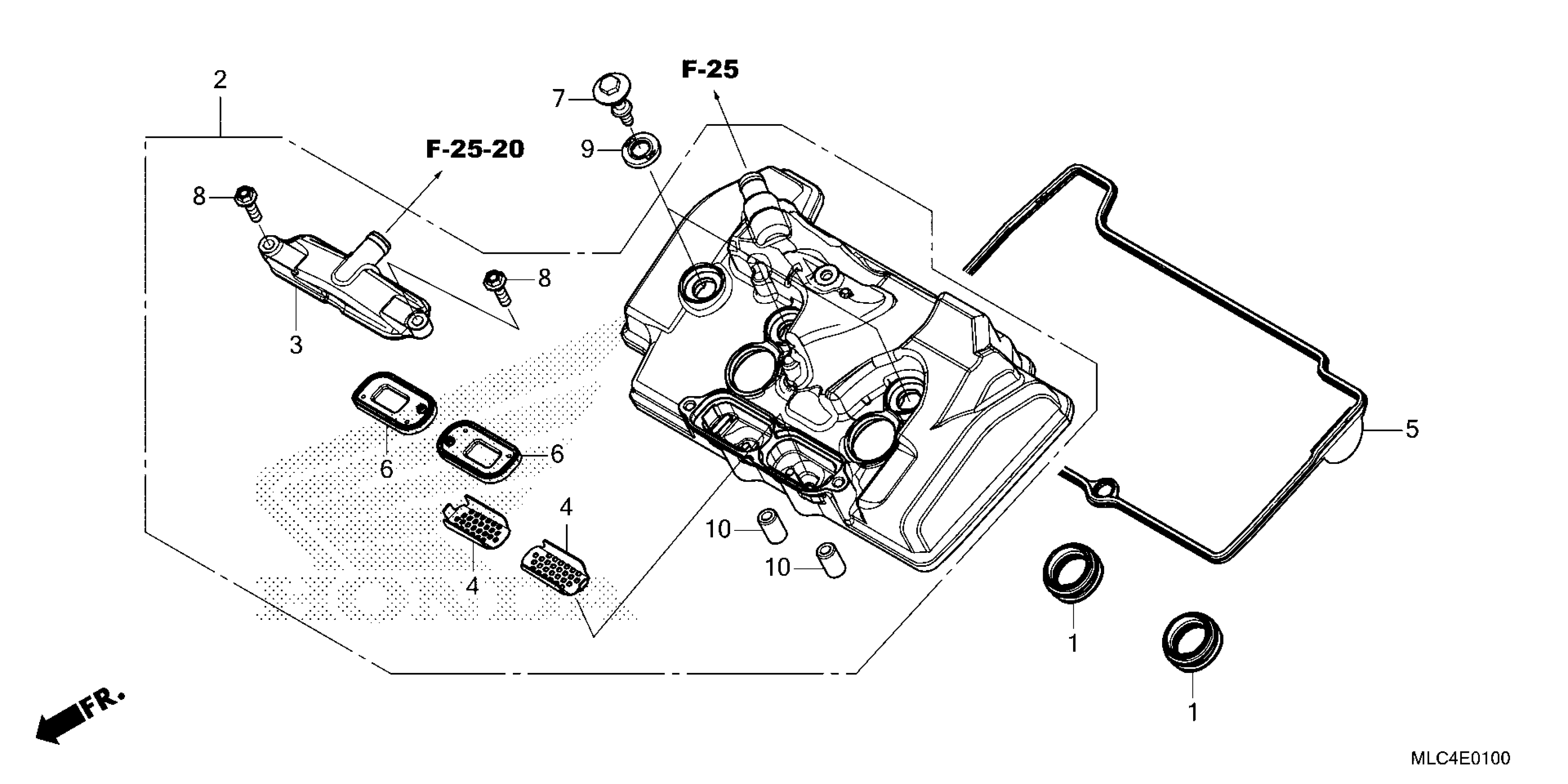

Honda XL7502AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 CYLINDER HEAD COVER Diagram

SEAL, PLUG TUBE

12229-MLB-D00

$6.48

COVER, CYLINDER HEAD

12310-MLB-D00

$210.14

COVER, REED VALVE

12331-MLB-D00

$20.64

PLATE, PORT (AI)

12341-MAT-750

$12.74

GASKET, HEAD COVER

12391-MLB-D00

$18.83

VALVE, REED (ARAI)

18601-KEA-741

$17.20

BOLT, HEAD COVER

90017-KWW-740

$3.42

BOLT (6X20)

90028-GHB-660

$1.67

RUBBER, MOUNTING (Honda Code 3699139)

90543-MV9-670

$4.60

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.24
