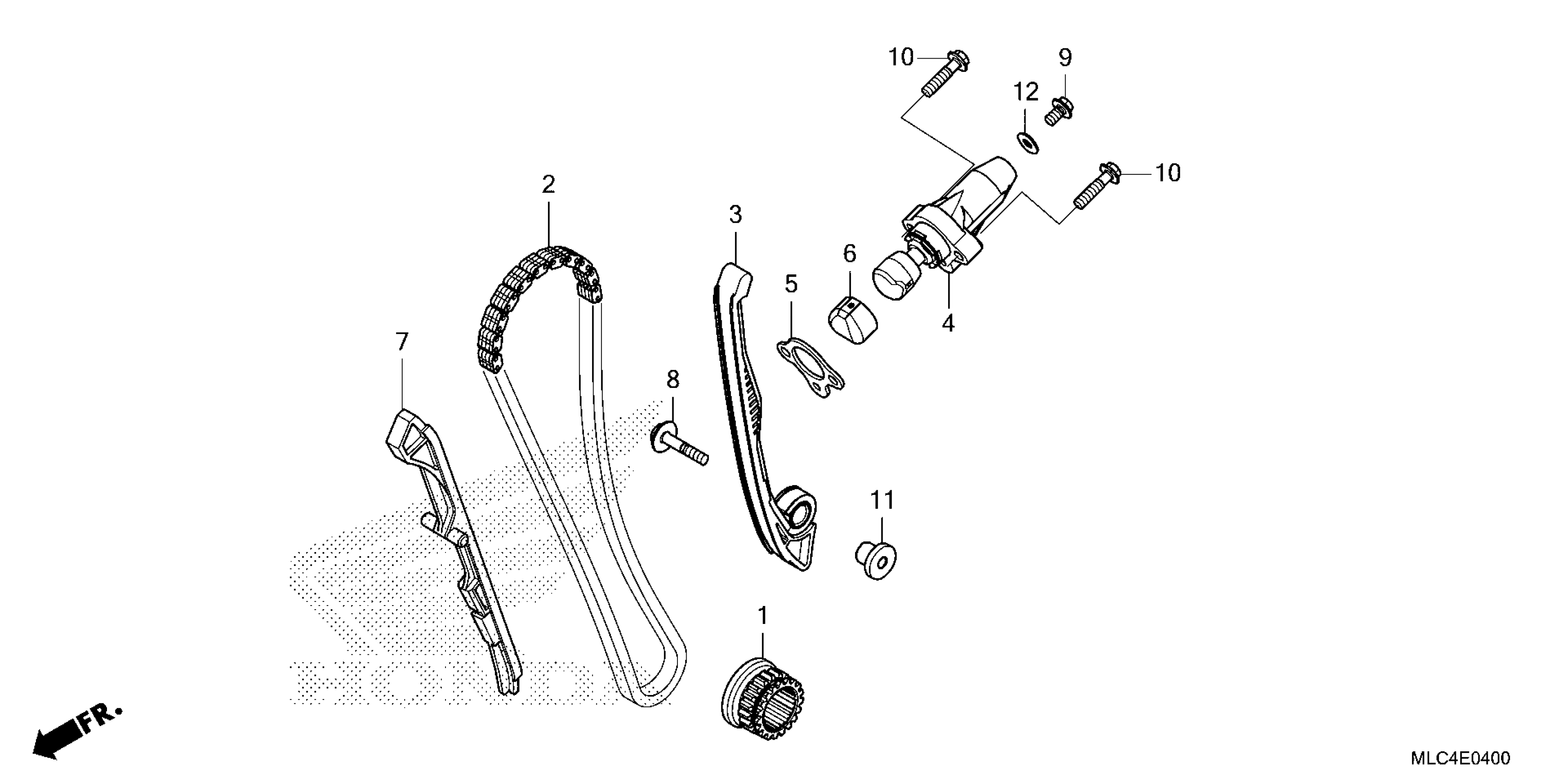

Honda XL7502AC (25) MOTORCYCLE, JPN, VIN# JH2RD171-SK000001 TO JH2RD171-SK099999 CAM CHAIN@TENSIONER Diagram

SPROCKET, TIMING

14311-MLB-D00

$38.89

CHAIN (SCH-0411L)

14401-MLB-D01

$67.46

TENSIONER COMP

14510-MLB-D00

$66.34

LIFTER, TENSIONER

14520-MLB-D01

$84.93

GASKET, TENSIONER HOLE

14523-HL4-003

$3.37

CAP, LIFTER PAT

14524-MBB-000

$7.72

GUIDE A, CAM CHAIN

14611-MLB-D00

$38.52

PIVOT, CAM CHAIN TENSIONER

90022-MFJ-D00

$2.25

BOLT, FLANGE (6X10)

90028-GHB-610

$1.92

BOLT, FLANGE (6X25) (S-NSHF)

90028-GHB-680

$1.49

COLLAR, CAM CN TN

90401-MLB-D00

$6.82

WASHER, SEALING (6MM)

90442-397-000

$2.28
