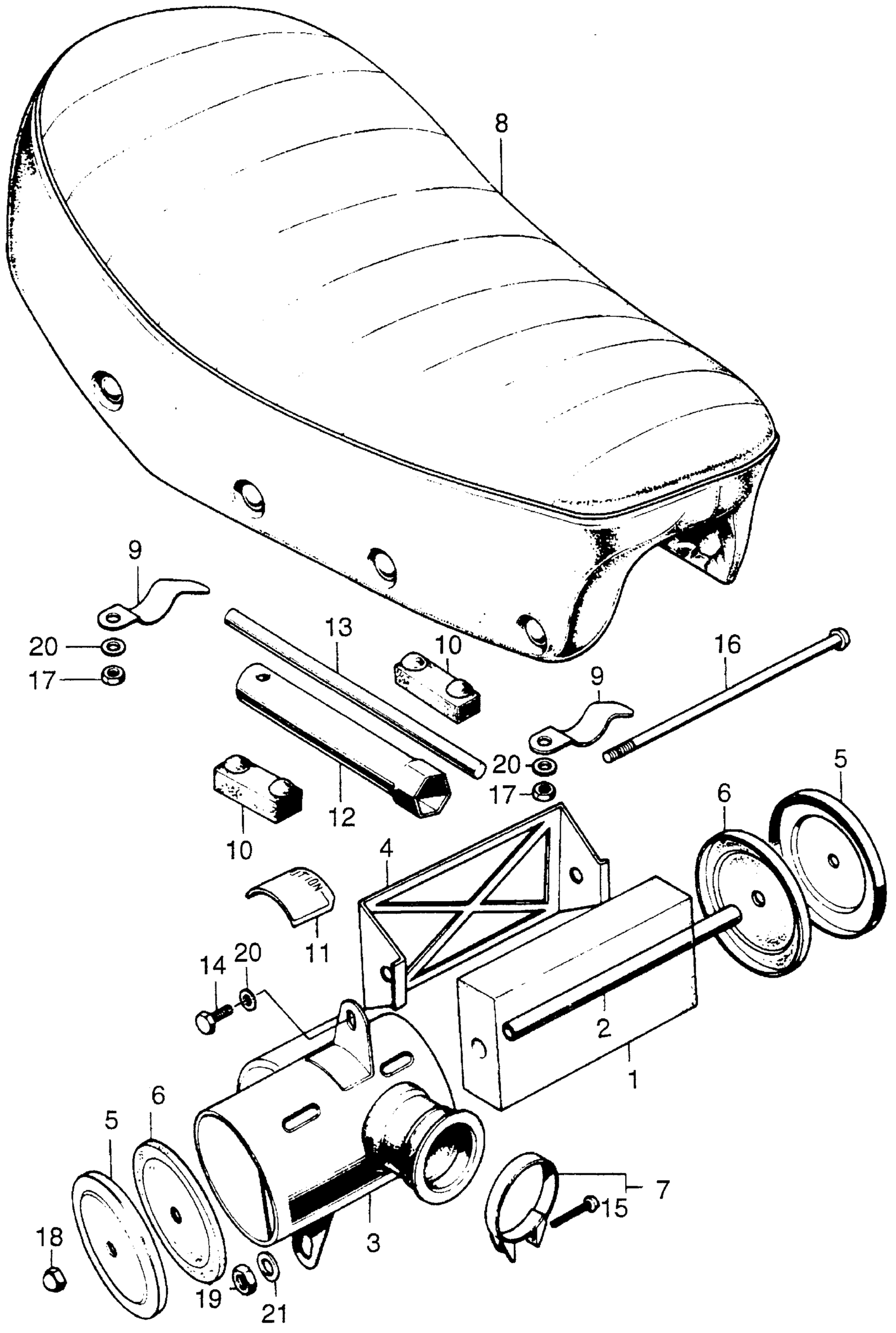

Honda XL70K1A MOTORCYCLE, JPN, VIN# XL70-1100003 SEAT + AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-098-771

$6.17

2

PIPE, AIR CLEANER (INNER)

17212-045-000

Unavailable

3

HOUSING, AIR CLEANER *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE) This part replaces 17221-118-771CT.

17221-118-771SG

Unavailable

3

HOUSING, AIR CLEANER *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

17221-118-771SG

Unavailable

4

PLATE, AIR CLEANER ELEMENT MOUNT

17222-098-771

$7.08

5

COVER, AIR CLEANER HOUSING *NH35M* (CLOUD SILVER METALLIC)

17231-098-950ZA

Unavailable

5

COVER, AIR CLEANER HOUSING *NH35M* (CLOUD SILVER METALLIC) This part replaces 17231-137-670.

17231-098-950ZA

Unavailable

6

GASKET, AIR CLEANER HOUSING

17252-098-771

$11.62

7

BAND, INSULATOR

16223-GBF-830

$11.87

7

BAND, INSULATOR This part replaces 17255-098-000.

16223-GBF-830

$11.87

7

BAND, INSULATOR This part replaces 17256-367-690.

16223-GBF-830

$11.87

8

SEAT (NOT AVAILABLE)

77100-137-671

Unavailable

9

PLATE, HOLDER PLUG WRENCH (NOT AVAILABLE)

77136-114-670

Unavailable

10

RUBBER B, SEAT SETTING

77205-286-000

$5.28

11

LABEL, AIR CLEANER CAUTION

87508-120-000

$5.26

12

WRENCH, SPARK PLUG

89216-045-010

$6.26

13

BAR, HANDLE

89217-045-670

$4.94

14

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

14

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

14

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

15

SCREW, PAN (4X25)

93500-04025-0A

$1.93

16

SCREW, PAN (6X135) This part replaces 93500-06135-02.

93500-06135-1B

$3.47

16

SCREW, PAN (6X135)

93500-06135-1B

$3.47

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

NUT, CAP (6MM)

94021-06020

$1.73

19

NUT, HEX. (8MM)

94030-08000

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

WASHER, PLAIN (8MM)

94101-08000

$1.49
