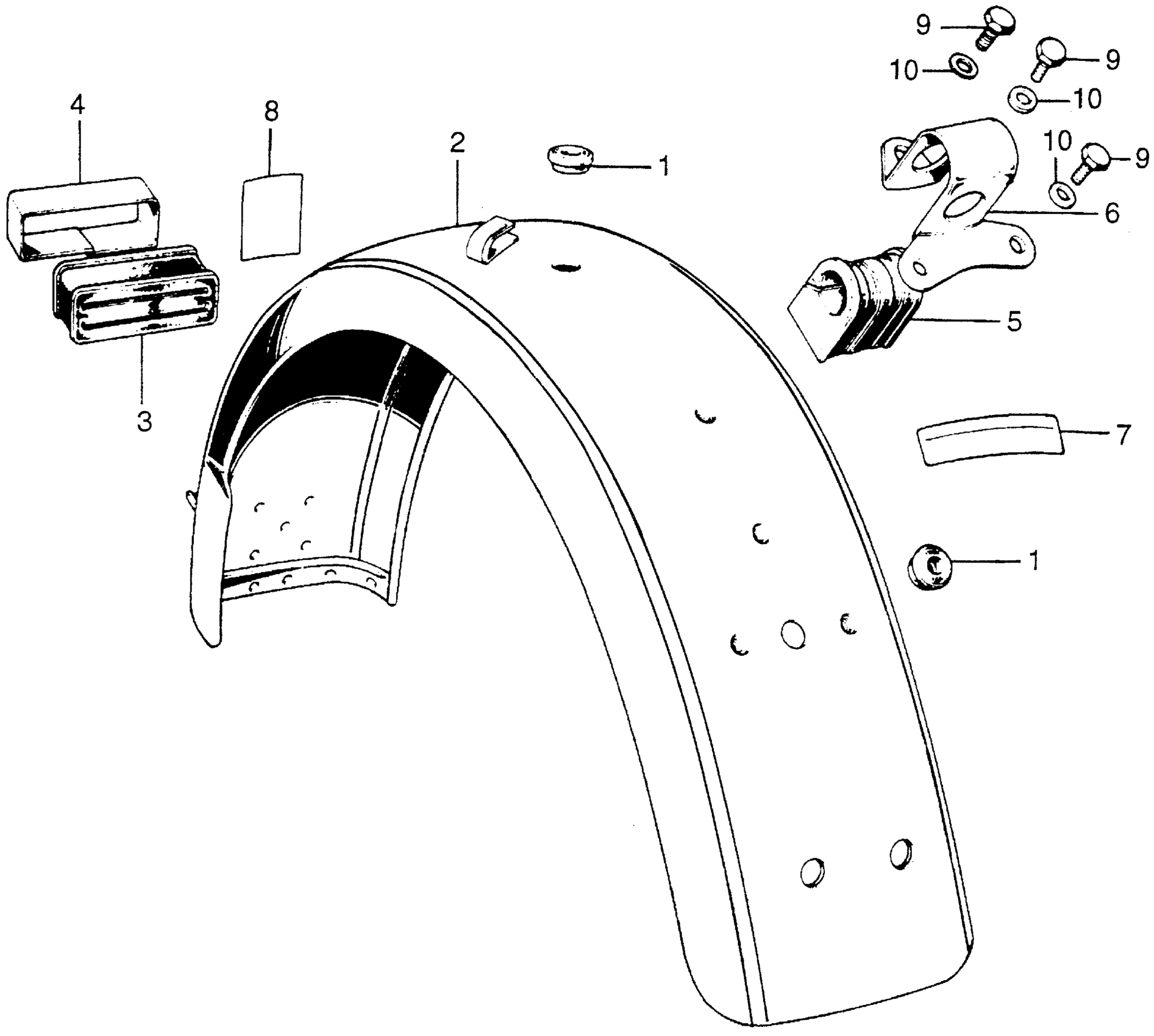

Honda XL70K1A MOTORCYCLE, JPN, VIN# XL70-1100003 REAR FENDER Diagram

GROMMET, WIRE HARNESS

32983-011-000

$3.08

FENDER, RR. *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

80100-118-770MA

Unavailable

RUBBER, RR. FENDER MOUNT (NOT AVAILABLE)

80103-118-000

Unavailable

PLATE, RR. FENDER MOUNT *NH1* (BLACK) (NOT AVAILABLE)

80105-118-000B

Unavailable

RUBBER, RR. FENDER MOUNT (NOT AVAILABLE) This part replaces 80106-118-000.

80106-312-000

Unavailable

STAY, RR. FENDER MOUNT *NH1* (BLACK) (NOT AVAILABLE)

80107-118-770B

Unavailable

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-137-670

Unavailable

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-118-770

Unavailable

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.29

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.29

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM)

94101-06800

Unavailable
