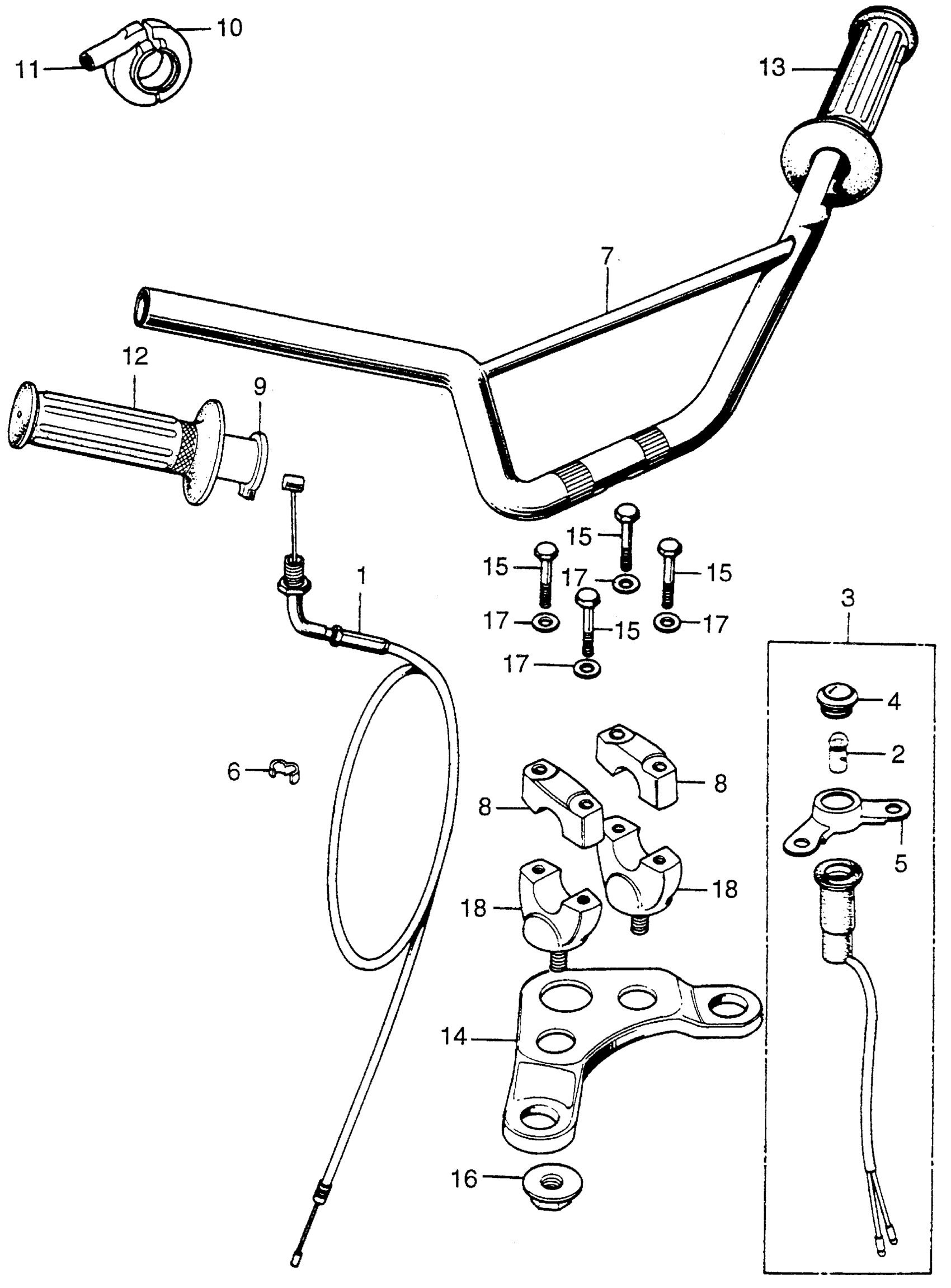

Honda XL70K1A MOTORCYCLE, JPN, VIN# XL70-1100003 HANDLEBAR Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-137-671

Unavailable

2

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

3

LAMP ASSY., TURN SIGNAL PILOT (NOT AVAILABLE)

37560-137-671

Unavailable

4

LENS, TURN SIGNAL PILOT (NOT AVAILABLE)

37561-098-951

Unavailable

5

STAY, TURN SIGNAL PILOT SETTING *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

37565-137-672SG

Unavailable

6

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

7

HANDLEBAR (NOT AVAILABLE)

53100-137-671

Unavailable

8

HOLDER A2, HANDLEBAR (UPPER) This part replaces 95014-21200.

95014-21201

Unavailable

8

HOLDER A2, HANDLEBAR (UPPER)

95014-21201

Unavailable

9

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-137-670

Unavailable

10

CASE (UPPER)

53143-355-000

Unavailable

11

CASE (LOWER)

53144-355-000

Unavailable

12

GRIP, R. HANDLEBAR

53165-116-670

$12.17

13

GRIP, L. HANDLEBAR

53166-116-670

$12.19

14

BRIDGE, FORK TOP *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

53231-118-670SG

Unavailable

15

BOLT, HEX. (6X28)

90117-065-000

$2.62

16

NUT, HEX. (10MM)

90354-115-000

$3.69

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

HOLDER B1, HANDLEBAR

95014-32100

$13.08

18

HOLDER B2, HANDLEBAR (LOWER)

95014-32200

Unavailable
