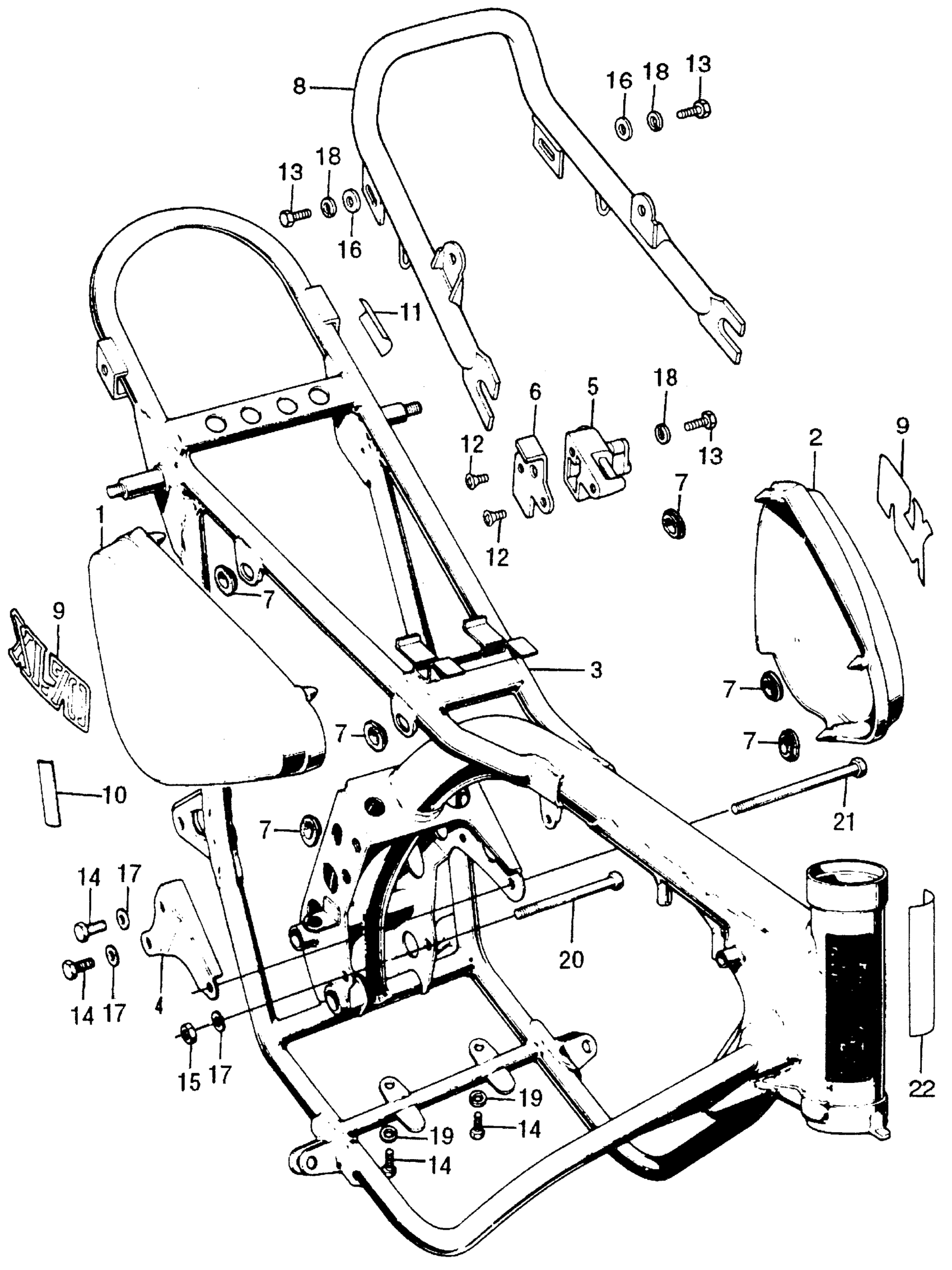

Honda XL70K1A MOTORCYCLE, JPN, VIN# XL70-1100003 FRAME + SIDE COVER Diagram

COVER, R. SIDE *PB5CS* (CANDY RIVIERA BLUE SPECIAL) (NOT AVAILABLE)

17231-118-770NL

Unavailable

COVER, L. SIDE *PB5CS* (CANDY RIVIERA BLUE SPECIAL) (NOT AVAILABLE)

17331-118-770NL

Unavailable

FRAME *NH1* (BLACK)

50100-137-671B

Unavailable

PLATE, ENGINE HANGER SET *NH1* (BLACK) (NOT AVAILABLE)

50356-118-000B

Unavailable

HOLDER ASSY., HELMET (NOT AVAILABLE)

50710-110-781

Unavailable

STAY, HELMET HOLDER (NOT AVAILABLE)

50715-137-670

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

BUMPER, RR. (NOT AVAILABLE)

84101-137-670

Unavailable

EMBLEM, SIDE COVER (NOT AVAILABLE)

87128-137-671

Unavailable

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

LABEL, MUFFLER CAUTION This part replaces 87506-045-000.

87504-028-670

$2.92

LABEL, HELMET HOLDER

87511-323-670

$2.72

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

NUT, HEX. (8MM)

94030-08000

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

BOLT, HEX. (8X100) This part replaces 95300-08100.

95300-08100-00

Unavailable

BOLT, HEX. (8X100)

95300-08100-00

Unavailable

BOLT, HEX. (8X111) This part replaces 95300-08111.

95300-08111-00

$2.92

BOLT, HEX. (8X111)

95300-08111-00

$2.92

PLATE, NAME

87125-041-680

$4.92
