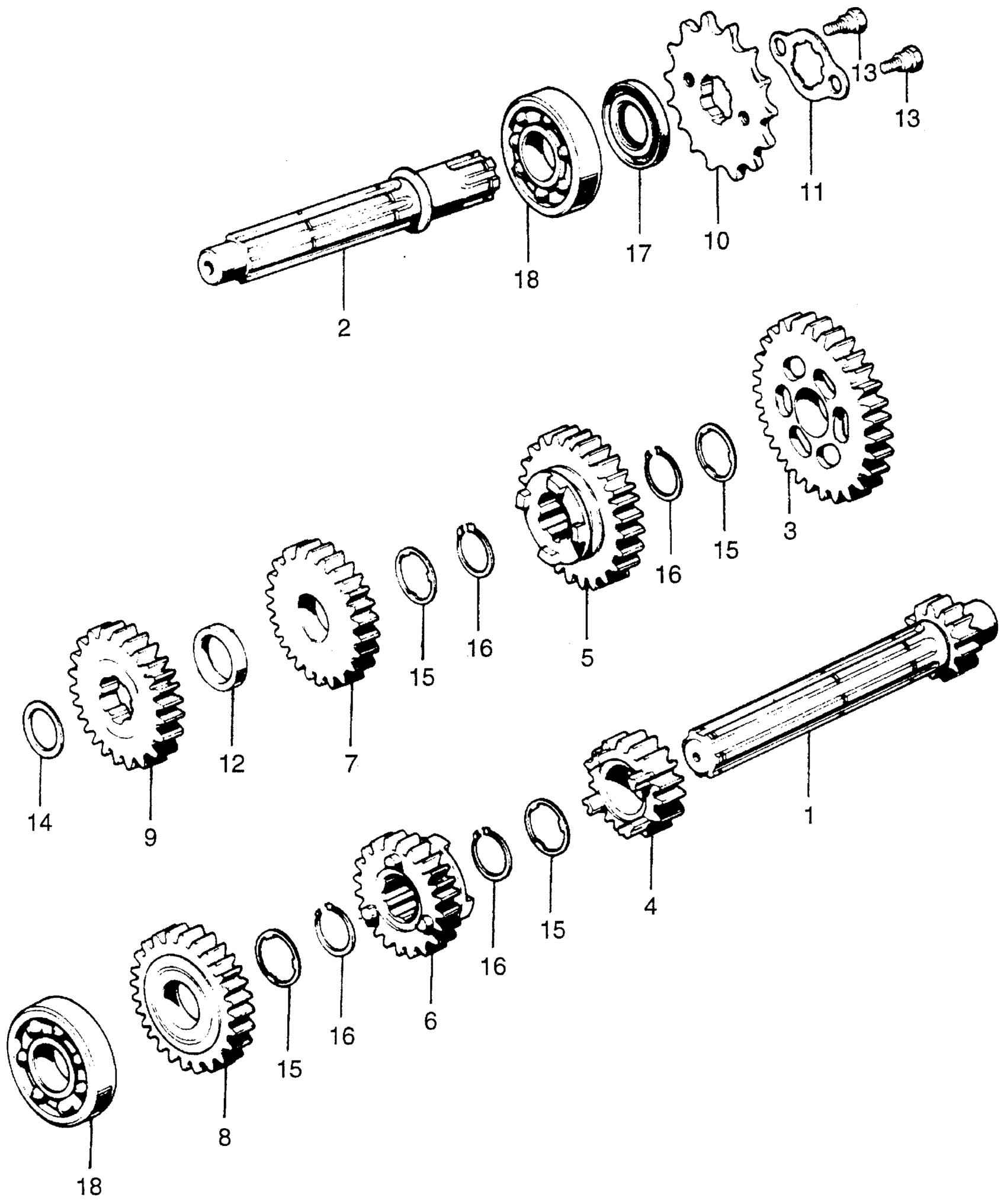

Honda XL70A MOTORCYCLE, JPN, VIN# XL70-1000001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (12T)

23211-118-305

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-118-305

Unavailable

3

GEAR, COUNTERSHAFT LOW (34T)

23421-118-305

Unavailable

4

GEAR, MAINSHAFT SECOND (16T)

23431-118-305

Unavailable

5

GEAR, COUNTERSHAFT SECOND (30T) (NOT AVAILABLE)

23441-118-305

Unavailable

6

GEAR, MAINSHAFT THIRD (20T)

23451-118-305

Unavailable

7

GEAR, COUNTERSHAFT THIRD (26T) (NOT AVAILABLE)

23461-118-305

Unavailable

8

GEAR, MAINSHAFT TOP (24T)

23471-118-305

$29.43

9

GEAR, COUNTERSHAFT TOP (23T)

23481-118-305

Unavailable

10

SPROCKET, DRIVE (13T)

23800-GB4-000

$15.25

10

SPROCKET, DRIVE (13T) This part replaces 23800-041-010.

23800-GB4-000

$15.25

11

PLATE, DRIVE SPROCKET FIXING

23802-041-010

$1.84

12

COLLAR, GEAR This part replaces 23911-065-005.

23911-065-000

Unavailable

13

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.29

14

WASHER (13.5MM)

90451-035-000

Unavailable

15

WASHER, SPLINE (17MM)

90461-035-000

$2.35

16

CIRCLIP (OUTER) (17MM)

90601-001-000

Unavailable

17

OIL SEAL (17X29X5) (NOK) This part replaces 91203-035-000.

91203-035-005

$8.00

17

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.00

18

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$7.82

18

BEARING, RADIAL BALL (6203)

96100-62030-00

$7.82
