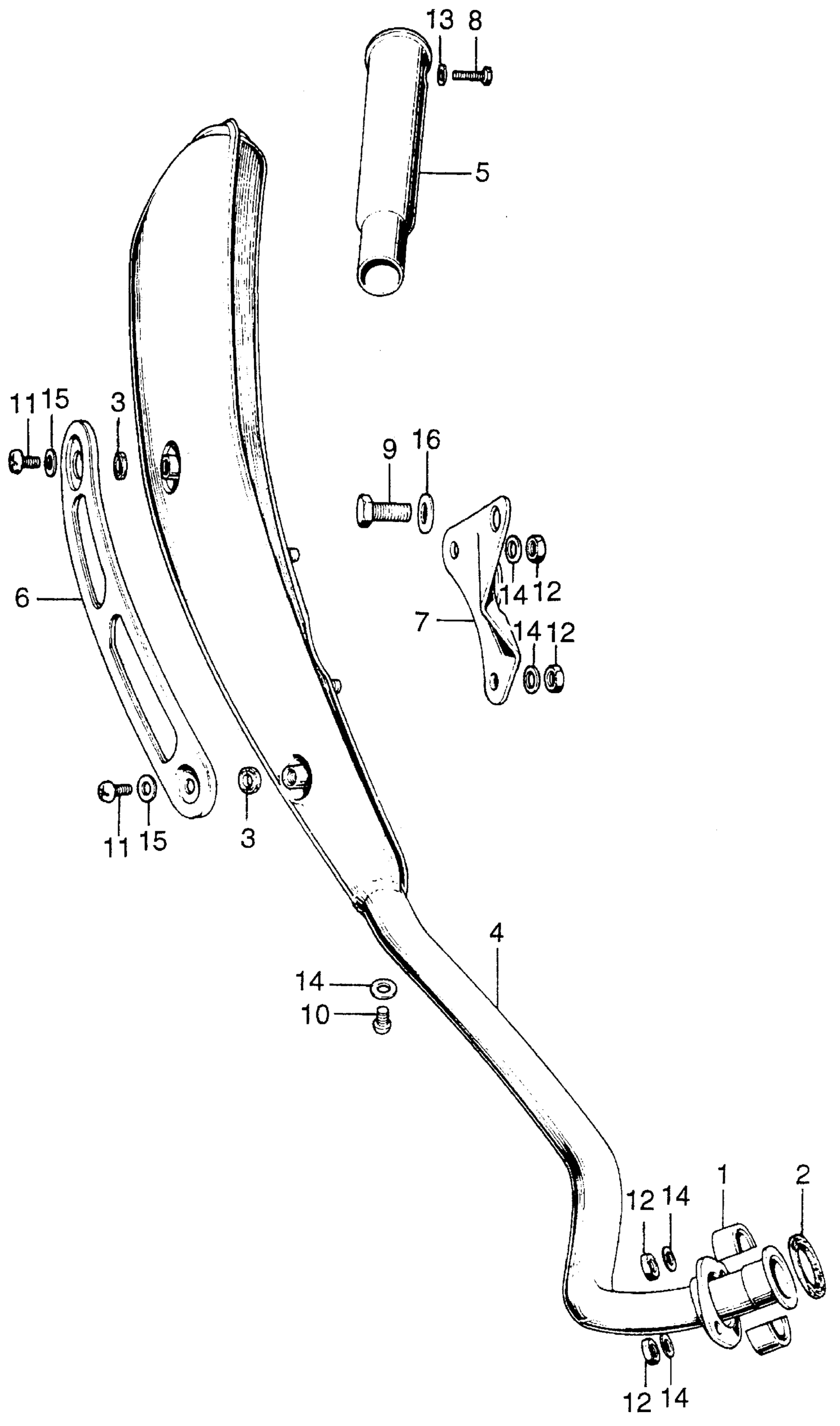

Honda XL70A MOTORCYCLE, JPN, VIN# XL70-1000001 MUFFLER Diagram

#

Description
Price

1

COLLAR, EX. PIPE JOINT

18233-051-000

$2.56

2

GASKET, EX. PIPE

18291-HB2-900

$3.72

2

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

2

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

3

GASKET, PROTECTOR

18292-167-890

$1.88

3

GASKET, PROTECTOR This part replaces 18292-290-000.

18292-167-890

$1.88

3

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

4

MUFFLER, EX. (NOT AVAILABLE)

183A0-118-670

Unavailable

4

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-118-670CT.

183A0-118-670

Unavailable

4

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-118-670SH.

183A0-118-670

Unavailable

4

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-118-677.

183A0-118-670

Unavailable

5

PIPE, EX. DIFFUSER

18311-077-020

$26.81

5

PIPE, EX. DIFFUSER This part replaces 18311-118-670.

18311-077-020

$26.81

6

PROTECTOR, MUFFLER (NOT AVAILABLE)

18318-118-670

Unavailable

7

STAY, MUFFLER MOUNT *NH1* (BLACK) (NOT AVAILABLE)

18340-118-000B

$6.92

8

BOLT, HEX. (5X14) This part replaces 92000-05014-0A.

92101-05014-0A

$1.49

8

BOLT, HEX. (5X14)

92101-05014-0A

$1.49

9

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

9

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

10

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

10

SCREW, PAN (6X8)

93500-06008

$1.49

10

SCREW, PAN (6X8)

93500-06008-0A

$1.49

10

SCREW, PAN (6X8)

93500-06008-0H

$1.49

10

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

11

SCREW, PAN (6X10)

93500-06010-0B

$1.49

11

SCREW, PAN (6X10) This part replaces 93500-06010-02.

93500-06010-0B

$1.49

12

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM)

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

13

WASHER, PLAIN (5MM)

94101-05000

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06200

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49
