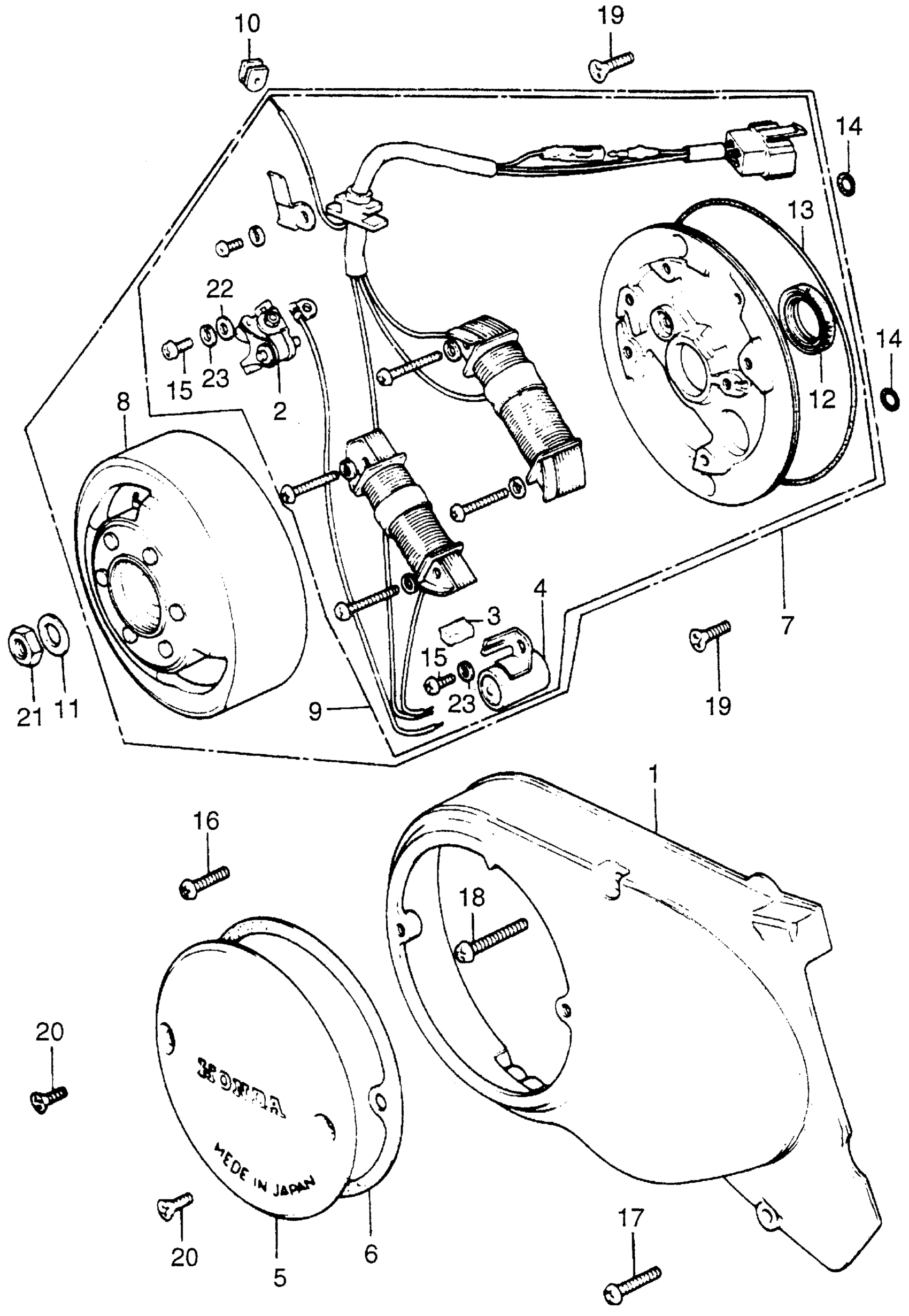

Honda XL70A MOTORCYCLE, JPN, VIN# XL70-1000001 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE This part replaces 11341-098-010.

11341-165-750

Unavailable

1

COVER, L. CRANKCASE

11341-165-750

Unavailable

2

POINTS (MITSUBISHI) This part replaces 30202-035-006.

30202-041-005

Unavailable

2

POINTS (MITSUBISHI)

30202-041-005

Unavailable

2

POINTS (HITACHI)

30202-041-015

$26.27

3

FELT, OIL (MITSUBISHI) (NOT AVAILABLE)

30205-001-096

Unavailable

3

FELT, OIL (HITACHI)

30205-041-005

$3.57

4

CONDENSER (MITSUBISHI)

30250-035-006

Unavailable

4

CONDENSER (HITACHI)

30250-041-005

$22.21

5

COVER, POINTS

30371-098-750

Unavailable

6

GASKET, POINTS COVER This part replaces 30374-040-010.

30374-040-020

$2.92

6

GASKET, POINTS COVER

30374-040-020

$2.92

6

GASKET, POINTS COVER This part replaces 30374-040-306.

30374-040-020

$2.92

7

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-098-742

Unavailable

7

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-098-741

Unavailable

8

FLYWHEEL (MITSUBISHI) (NOT AVAILABLE)

31121-051-016

Unavailable

8

FLYWHEEL (NOT AVAILABLE) This part replaces 31121-098-722.

31121-118-671

Unavailable

8

FLYWHEEL (NOT AVAILABLE)

31121-118-671

Unavailable

9

STATOR ASSY. (NOT AVAILABLE)

31141-098-742

Unavailable

9

STATOR ASSY. (NOT AVAILABLE)

31141-098-741

Unavailable

10

GROMMET, NEUTRAL SWITCH WIRE

32981-035-000

Unavailable

11

WASHER, MAGNET FIXING

90426-035-000

$2.35

12

OIL SEAL (18.9X30X5) This part replaces 91202-GB4-682.

91202-GK4-722

$5.71

12

OIL SEAL (18.9X30X5)

91202-GK4-722

$5.71

12

OIL SEAL (18.9X30X5) This part replaces 91202-035-000.

91202-GK4-722

$5.71

12

OIL SEAL (18.9X30X5) This part replaces 91202-035-003.

91202-GK4-722

$5.71

12

OIL SEAL (18.9X30X5) This part replaces 91202-035-005.

91202-GK4-722

$5.71

13

O-RING (107X2) (ARAI) This part replaces 91301-035-000.

91301-035-003

$6.56

13

O-RING (107X2)

91301-035-003

$6.56

14

O-RING (6X1.7)

91317-171-003

$2.80

14

O-RING (6X1.7) (ARAI) This part replaces 91317-703-000.

91317-171-003

$2.80

15

SCREW, PAN (4X10)

93500-04010-0A

$0.83

16

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$0.93

16

SCREW, PAN (6X20)

93500-06020-0A

$0.93

17

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.09

17

SCREW, PAN (6X28)

93500-06028-0A

$1.09

18

SCREW, PAN (6X35)

93500-06035-0A

$1.00

18

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.00

19

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$0.90

19

SCREW, FLAT (6X16) (YAMADA)

93600-06016-0A

$0.90

20

SCREW, OVAL (5X12)

93700-05012-0A

$0.71

21

NUT, HEX. (10MM)

94030-10000

$1.29

22

WASHER, PLAIN (4MM)

94101-04000

$0.90

23

WASHER, SPRING (4MM)

94111-04000

$0.97
