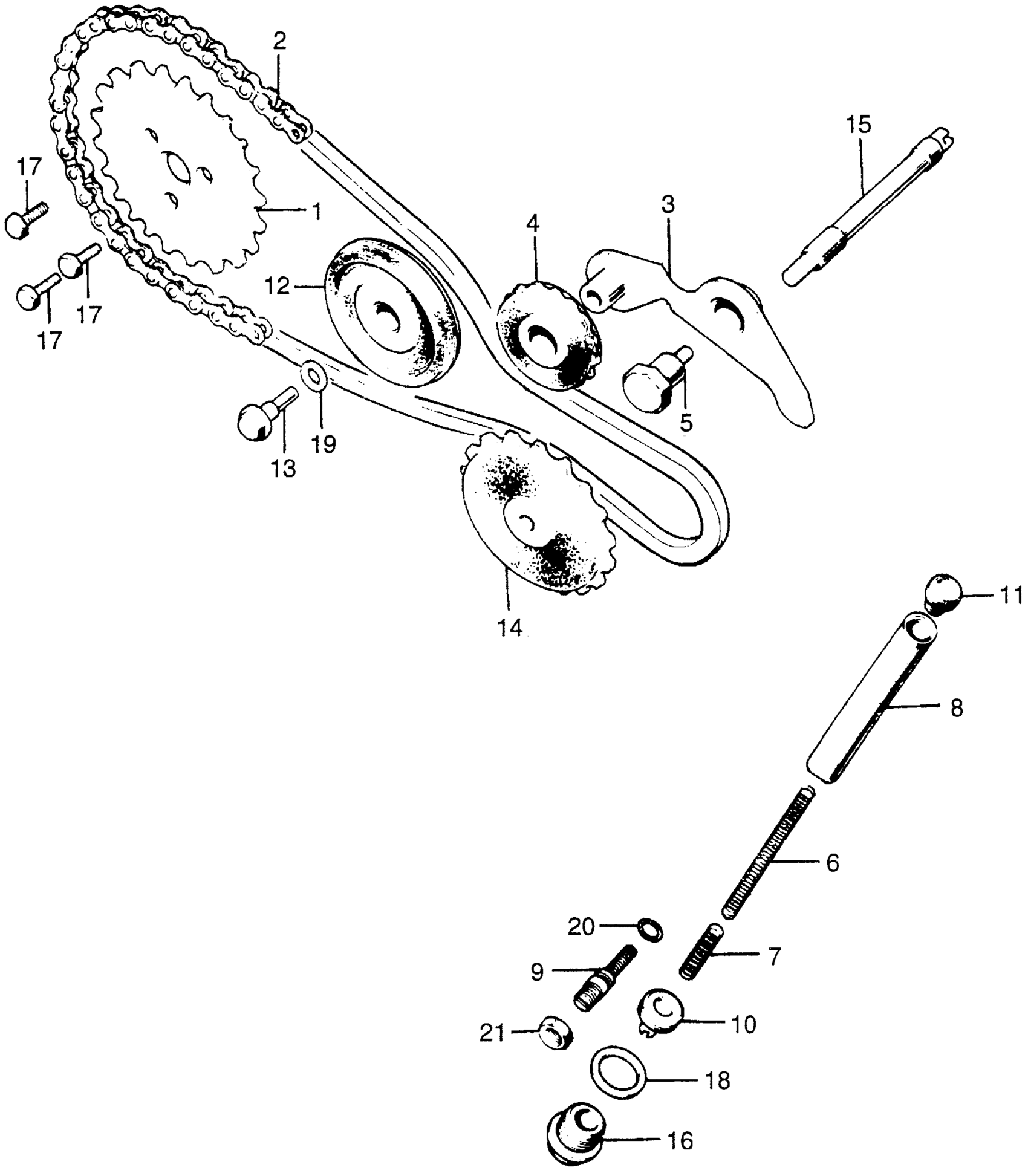

Honda XL70A MOTORCYCLE, JPN, VIN# XL70-1000001 CAM CHAIN TENSIONER Diagram

SPROCKET, CAM (28T) This part replaces 14321-035-003.

14321-035-700

$17.46

SPROCKET, CAM (28T) This part replaces 14321-035-010.

14321-035-700

$17.46

SPROCKET, CAM (28T)

14321-035-700

$17.46

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-000.

14401-115-010

$29.93

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-003.

14401-115-010

$29.93

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-005.

14401-115-010

$29.93

ARM, CAM CHAIN TENSIONER This part replaces 14500-035-010.

14500-035-020

$28.03

ARM, CAM CHAIN TENSIONER

14500-035-020

$28.03

ROLLER, CAM CHAIN TENSIONER

14502-086-000

$16.33

PIVOT, CAM CHAIN TENSIONER

14531-035-000

$3.87

SPRING A, CAM CHAIN TENSIONER

14541-086-010

Unavailable

SPRING B, CAM CHAIN TENSIONER

14542-086-000

$4.24

ROD, CAM CHAIN TENSIONER PUSH

14550-086-010

Unavailable

BOLT, CAM CHAIN TENSIONER ADJUSTING

14561-086-010

$10.41

BOLT B, CAM CHAIN TENSIONER ADJUSTING

14562-086-000

Unavailable

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

$2.33

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-000.

14610-086-010

$20.24

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-003.

14610-086-010

$20.24

ROLLER, CAM CHAIN GUIDE

14610-086-010

$20.24

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-013.

14610-086-010

$20.24

PIN, CAM CHAIN GUIDE ROLLER This part replaces 14615-035-000.

14615-035-010

$2.84

PIN, CAM CHAIN GUIDE ROLLER

14615-035-010

$2.84

SPROCKET, CAM CHAIN GUIDE (25T) This part replaces 14670-035-030.

14670-GBJ-M30

$23.34

SPINDLE, CAM CHAIN GUIDE SPROCKET

14675-035-060

Unavailable

BOLT, SEALING (14MM)

90081-086-000

$5.44

BOLT, KNOCK (5MM)

90083-035-010

$2.07

WASHER, SEALING (14MM)

90441-035-000

$2.39

WASHER (8MM)

90481-035-000

$1.87

O-RING (5.5X1.5)

91301-216-000

$2.38

NUT, HEX. (8MM)

94001-08000-0S

$1.49
