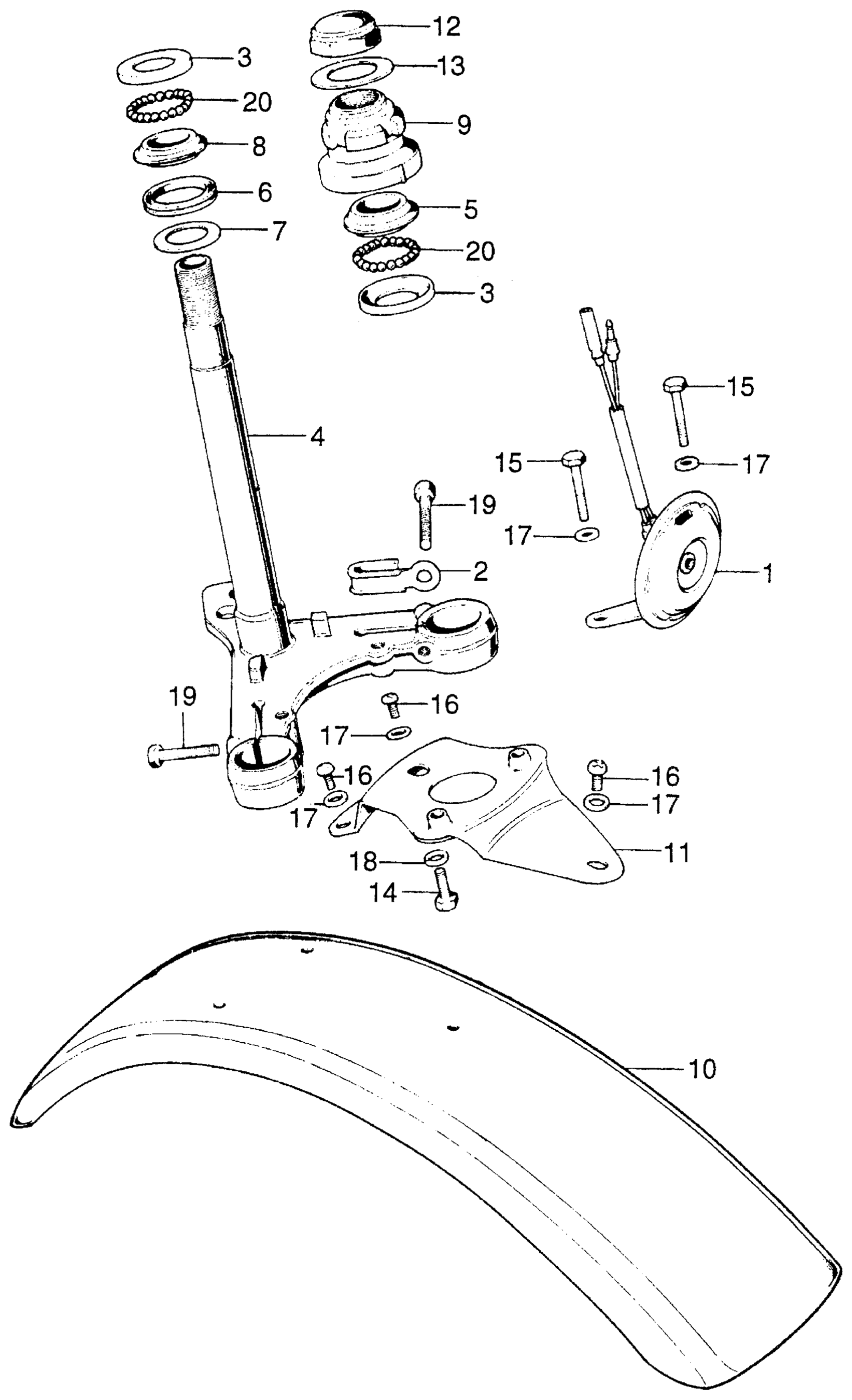

Honda XL70A (76) MOTORCYCLE, JPN, VIN# XL70-1200004 STEERING STEM + FRONT FENDER Diagram

#

Description
Price

1

HORN ASSY. (NOT AVAILABLE)

38100-137-701

Unavailable

2

CLIP, FR. BRAKE CABLE

45465-028-000

Unavailable

3

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$11.13

3

RACE, STEERING TOP BALL

50301-041-010

$11.13

3

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$11.13

4

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-118-770B

Unavailable

5

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$9.96

5

RACE, STEERING CONE (UPPER)

53211-028-010

$9.96

5

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$9.96

6

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.36

7

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$2.74

8

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$9.63

8

RACE, STEERING CONE (LOWER)

53212-030-010

$9.63

8

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$9.63

8

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$9.63

9

THREAD, STEERING HEAD TOP This part replaces 53220-051-690.

53220-098-670

$15.11

9

THREAD, STEERING HEAD TOP

53220-098-670

$15.11

10

FENDER, FR. *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

61100-118-000MA

Unavailable

11

BRACKET, FR. FENDER *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

61102-118-770MA

Unavailable

12

NUT, STEERING STEM This part replaces 90304-011-000.

90304-159-000

$6.54

12

NUT, STEERING STEM

90304-159-000

$6.54

12

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$6.54

13

WASHER, STEERING STEM

90503-051-870

$2.58

14

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.33

14

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.33

14

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.33

14

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.33

14

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

14

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.33

15

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.67

15

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.67

15

BOLT, HEX. (6X35)

92201-06035-0A

$1.67

16

SCREW, PAN (6X12) This part replaces 33114-200-000.

93500-06012-0B

$0.90

16

SCREW, PAN (6X12) This part replaces 33127-259-222.

93500-06012-0B

$0.90

16

SCREW, PAN (6X12)

93500-06012-0B

$0.90

16

SCREW, PAN (6X12) This part replaces 93500-06012-02.

93500-06012-0B

$0.90

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

17

WASHER, PLAIN (6MM)

94101-06800

Unavailable

18

WASHER, SPRING (6MM)

94111-06000

$0.86

19

BOLT, HEX. (8X32) (NOT AVAILABLE) This part replaces 95300-08032.

95300-08032-00

Unavailable

19

BOLT, HEX. (8X32) (NOT AVAILABLE)

95300-08032-00

Unavailable

20

BALL, STEEL (#6) (3/16)

96211-06000

$0.46
