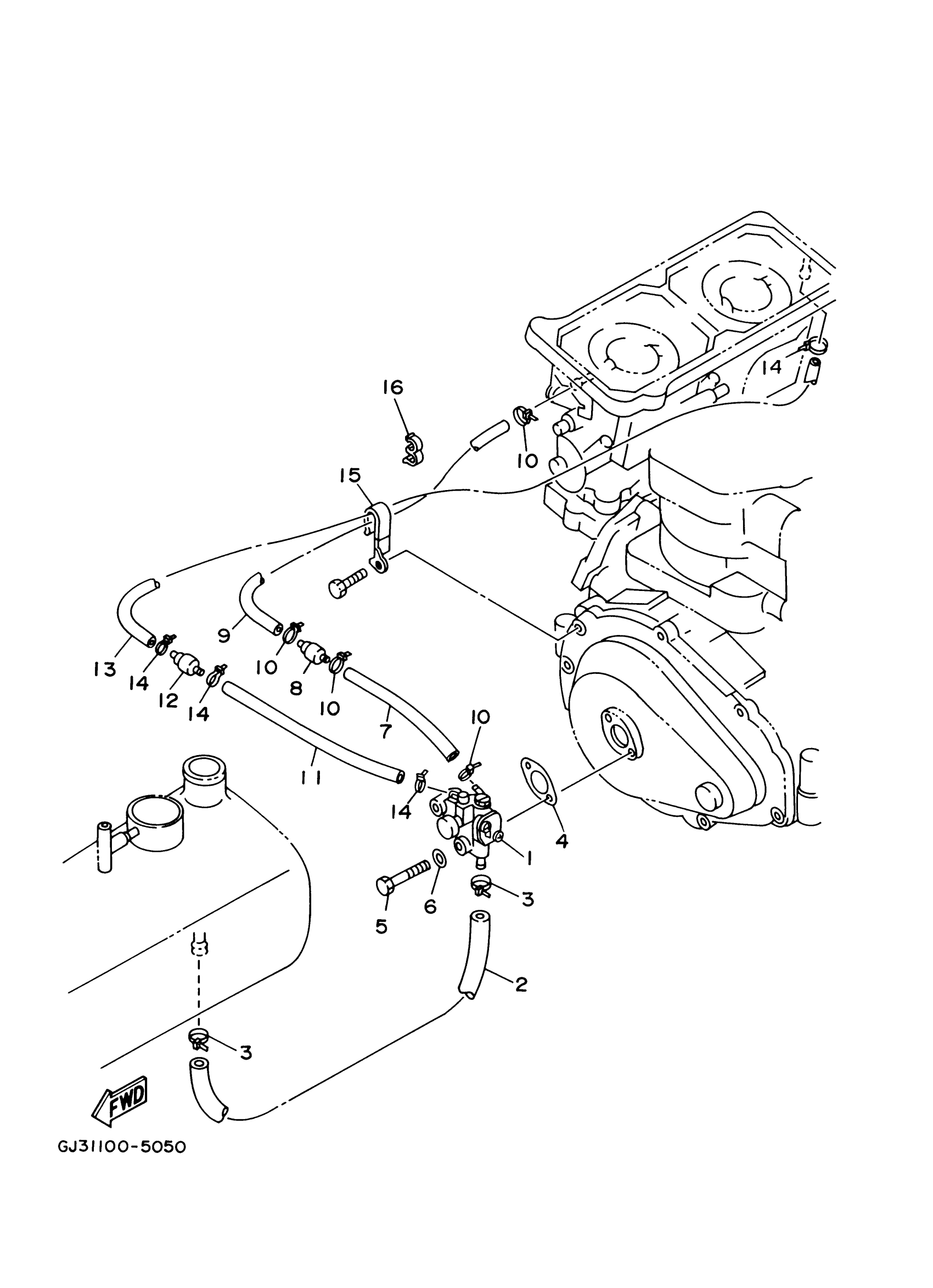

Yamaha XL700Z (XL700) F0M7 2001 OIL PUMP Diagram

#

Description

Price

1

OIL INJECTION PUMP ASSY

61X-13200-12-00

Unavailable

2

HOSE (L700)

90445-117F2-00

$30.99

3

CLAMP

90465-10098-00

Unavailable

4

. GASKET, PUMP CASE

6R8-13116-A0-00

Unavailable

5

BOLT(J52)

97080-06035-00

Unavailable

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

HOSE(62T)

90446-07M48-00

Unavailable

8

VALVE, CHECK

6R3-13183-10-00

Unavailable

9

HOSE(62T)

90446-07M48-00

Unavailable

10

CLAMP

90465-10098-00

Unavailable

11

HOSE(62T)

90446-07M48-00

Unavailable

12

VALVE, CHECK

6R3-13183-10-00

Unavailable

13

HOSE(62T)

90446-07M48-00

Unavailable

14

CLAMP

90465-10098-00

Unavailable

15

CLAMP

90465-08M69-00

$12.49

16

CLAMP(6R8)

90464-10M38-00

Unavailable
