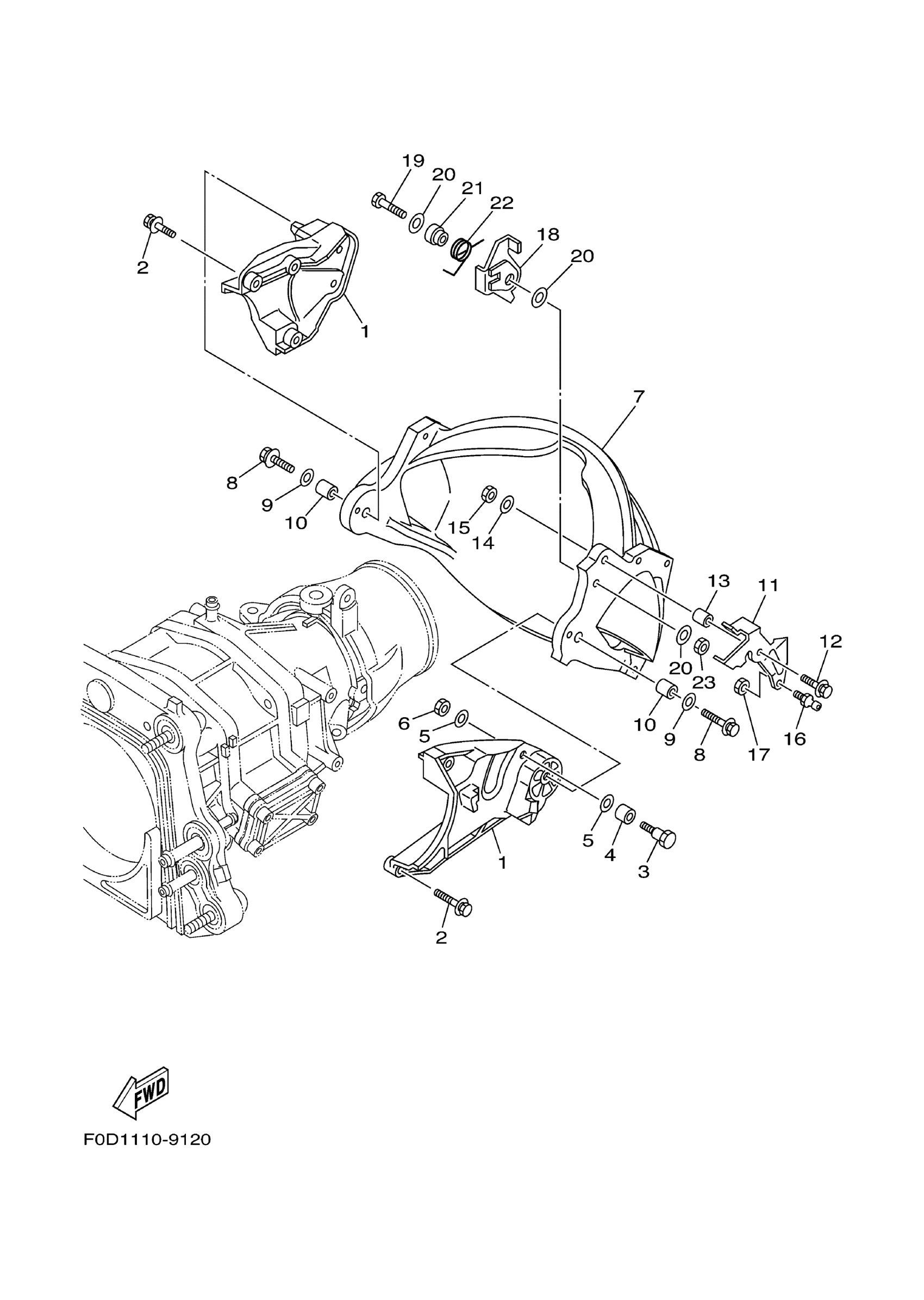

Yamaha XL700Z (XL700) F0M7 2001 JET UNIT 3 Diagram

#

Description
Price

1

BRACKET 1

66V-51341-00-94

$84.83

2

BOLT, WITH WASHER

90119-06892-00

$3.79

3

BOLT

90109-08851-00

$4.01

4

COLLAR

90387-10M09-00

$14.27

5

WASHER

9299R-08600-00

$2.00

6

NUT

9538R-08600-00

$1.36

7

GATE, REVERSE

99999-03375-00

Unavailable

8

BOLT, WITH WASHER

90119-08841-00

$1.01

9

WASHER, FENDER MOLD

90201-088T2-00

$1.17

10

COLLAR

90387-08M30-00

$7.40

11

LEVER, SHIFT ROD

66V-44121-00-00

Unavailable

12

BOLT,WITH WASHER

90119-06890-00

$1.07

13

COLLAR

90387-06M74-00

Unavailable

14

WASHER, PLATE

90201-068T1-00

$1.80

15

NUT

9538R-06600-00

$0.79

16

STUD, JOINT BALL

66V-U146E-00-00

$9.62

17

NUT

9538R-06600-00

$0.79

18

LEVER, SHIFT ROD

66V-44125-00-00

$40.89

19

BOLT

90101-06833-00

$2.50

20

WASHER, PLATE

90201-068T1-00

$1.80

21

COLLAR

90387-06M84-00

Unavailable

22

SPRING, TORSION

90508-14M43-00

$1.82

23

NUT

9538R-06600-00

$0.79
