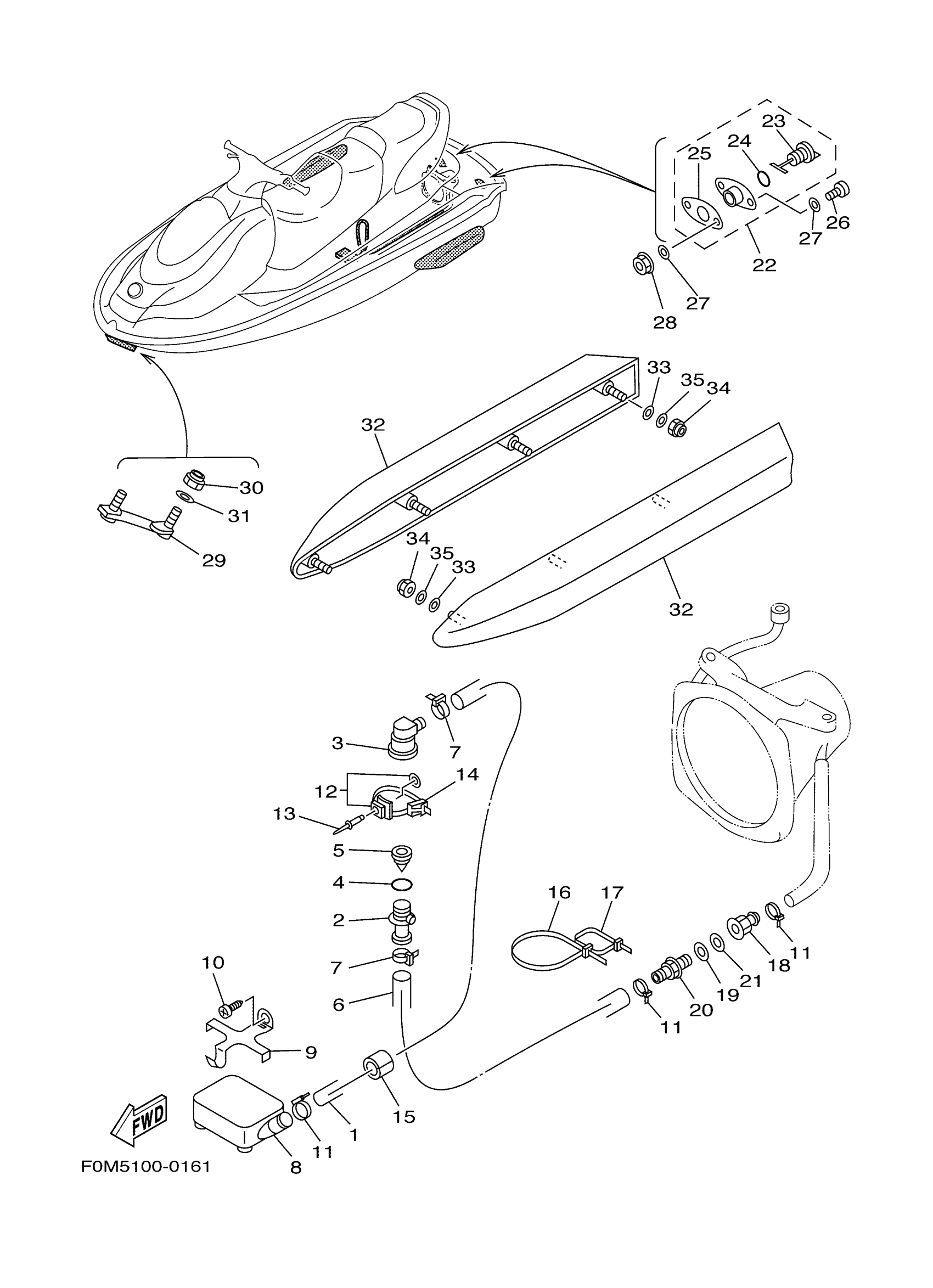

Yamaha XL700Z (XL700) F0M7 2001 HULL DECK Diagram
#
1
HOSE
90445-14M11-00
Unavailable
2
JOINT, HOSE
68N-5112T-00-00
Unavailable
3
JOINT, HOSE 2
63M-51165-00-00
Unavailable
4
O-RING
93210-22ME5-00
Unavailable
5
VALVE 1
63M-5316M-00-00
Unavailable
6
HOSE
90445-19M01-00
Unavailable
7
BAND
90601-200U1-00
Unavailable
8
STRAINER, BILGE
GD0-U761D-00-00
Unavailable
9
BASE, STRAINER BLIGE
EW2-67618-00-00
Unavailable
10
SCREW, TAPPING
9778R-50112-00
Unavailable
11
BAND
90601-200U1-00
Unavailable
12
CLAMP COMP (EU0)
90600-91736-00
$8.49
13
RIVET, BLIND
90267-489U7-00
Unavailable
14
CLAMP
90464-32801-00
Unavailable
15
PACKING, HOSE 2
GJ1-U7578-12-00
Unavailable
16
NYLON CLIP 1(GD0)
90601-20016-00
Unavailable
17
BAND
90601-200U4-00
Unavailable
18
CONNECTION, THRU-HULL 1/4
90604-80759-00
Unavailable
19
GASKET
90430-13909-00
Unavailable
20
CONNECTION, THROUGH HALL (GD0)
90604-80775-00
Unavailable
21
GASKET
90430-13909-00
Unavailable
22
DRAIN PLUG ASSY
EU0-62280-00-00
Unavailable
23
. PLUG, DRAIN
EU0-62282-00-00
Unavailable
24
. O-RING
EU0-62283-00-00
Unavailable
25
. PACKING DRAIN (EU0)
EU0-62285-01-00
Unavailable
26
SCREW, PAN HEAD
9788R-05025-00
Unavailable
27
WASHER
9299R-05200-00
Unavailable
28
NUT, FLANGE
9572R-05300-00
Unavailable
29
BOWEYE 1
FN8-U1624-00-00
Unavailable
30
NUT, NYLON (6J8)
95780-08300-00
Unavailable
31
WASHER
9299R-08200-00
Unavailable
32
STABILIZER (BLACK)
GH3-U883M-30-00
Unavailable
33
PACKING, STABILIZER
GT3-U883U-00-00
Unavailable
34
NUT, NYLON
9572R-06300-00
Unavailable
35
WASHER
9299R-06200-00
Unavailable
