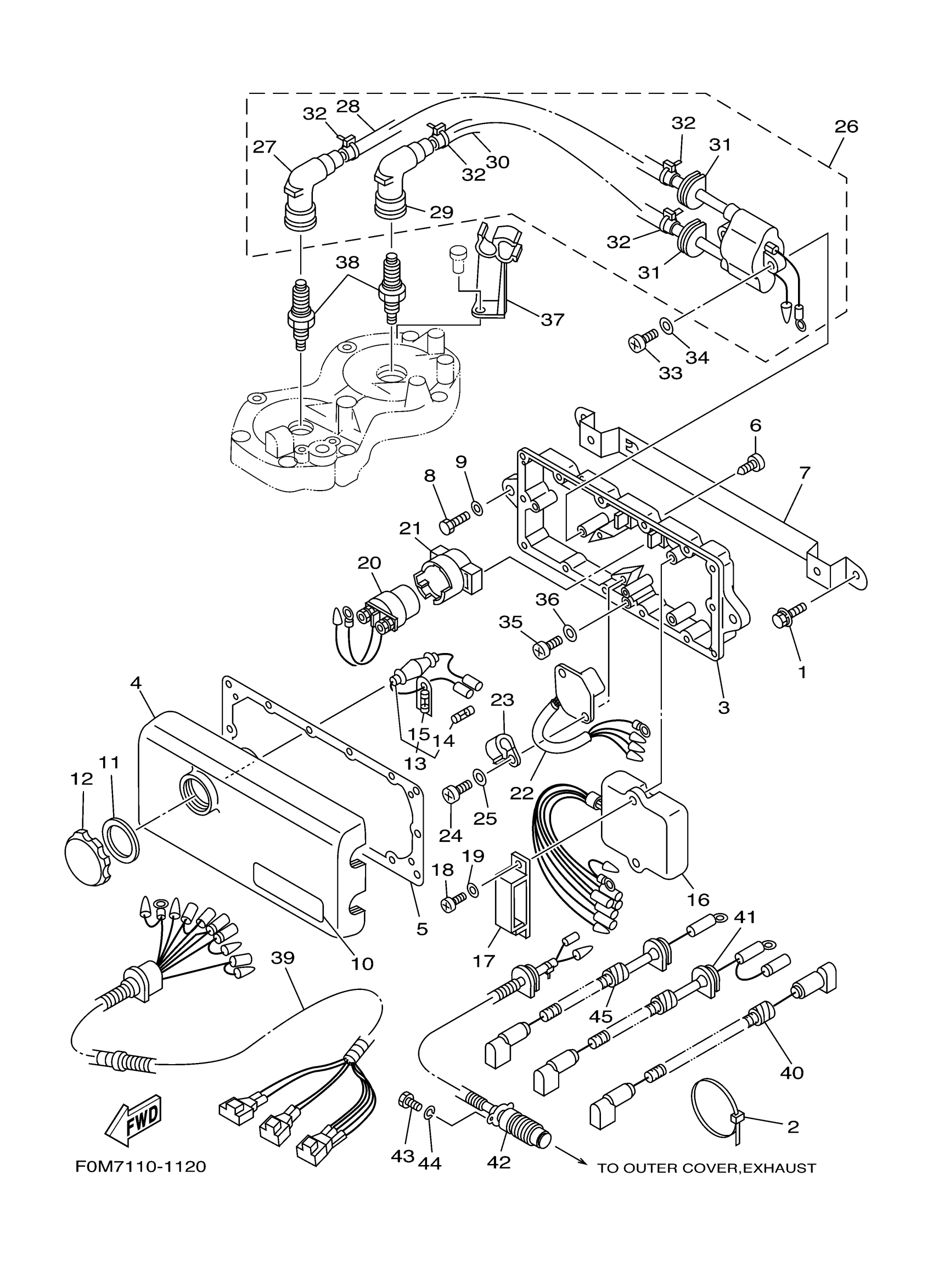

Yamaha XL700Z (XL700) F0M7 2001 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-08800-00

Unavailable

2

BAND (EU0)

90601-20009-00

Unavailable

3

HOUSING

62L-8552A-00-8P

Unavailable

4

COVER, CASE

6M6-8552E-01-00

Unavailable

5

GASKET, TERMINAL

6M6-81921-00-00

Unavailable

6

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

7

BRACKET

66D-85542-00-00

Unavailable

8

BOLT (62G)

97095-08025-00

$8.49

9

.. WASHER, PLATE

92990-08600-00

Unavailable

10

MARK 3

6R7-83623-40-00

Unavailable

11

GASKET

6M6-81844-00-00

Unavailable

12

CAP

6M6-8132W-00-00

Unavailable

13

FUSE HOLDER ASSY

6K8-82150-02-00

$38.99

14

FUSE (10A)

1E6-82151-00-00

$7.99

15

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

16

C.D.I. UNIT ASSY

62T-85540-04-00

Unavailable

17

CLAMP

90464-06M29-00

Unavailable

18

SCREW, PAN HEAD

98580-06016-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

STARTER RELAY ASSY

6G1-81941-10-00

Unavailable

21

HOLDER, RELAY

6M6-81952-01-00

Unavailable

22

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

Unavailable

23

CLAMP

90465-06M86-00

Unavailable

24

SCREW, PAN HEAD

98580-06016-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

IGNITION COIL ASSY

62E-85570-11-00

Unavailable

27

. CAP, PLUG

62E-82371-11-00

Unavailable

28

. TUBE, CORD

62E-82351-01-00

Unavailable

29

. CAP, PLUG

62E-82371-11-00

Unavailable

30

. TUBE, CORD 2

62E-82352-01-00

Unavailable

31

GROMMET

90480-06M43-00

Unavailable

32

CLAMP

90465-10098-00

Unavailable

33

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

34

WASHER, PLAIN (646)

92990-06600-00

Unavailable

35

SCREW, PAN HEAD

98580-06016-00

Unavailable

36

WASHER, PLAIN (646)

92990-06600-00

Unavailable

37

CLAMP, CORD

62T-82361-00-00

Unavailable

38

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable

39

EXTENSION, WIRE LEAD

63N-82553-00-00

Unavailable

40

WIRE, LEAD

63N-82117-00-00

Unavailable

41

WIRE, LEAD

63N-82117-11-00

Unavailable

42

THERMOSWITCH ASSY

62T-82560-01-00

Unavailable

43

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

44

WASHER, SPRING

92995-06100-00

Unavailable

45

WIRE, LEAD

62L-82117-20-00

Unavailable
