- XL700Y (XL700) F0M5 2000
ENGINE HATCH 2

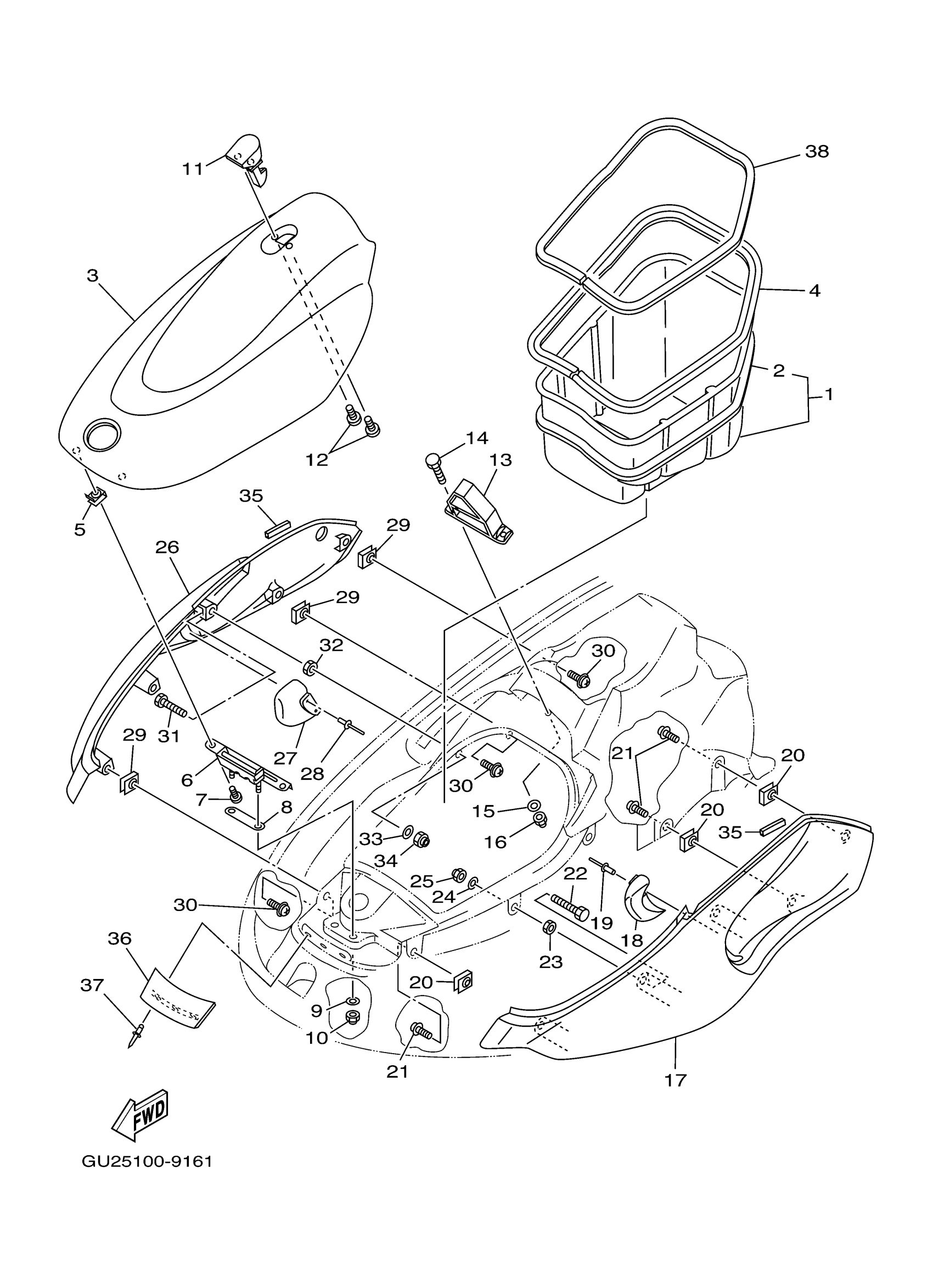

Yamaha XL700Y (XL700) F0M5 2000 ENGINE HATCH 2 Diagram
#
1
BOW LOCKER ASSY
GU2-U475A-00-00
Unavailable
2
PACKING 4
GJ3-U266C-31-00
Unavailable
3
LID, ENGINE ROOM(DARK RED MET)
GU2-U517B-09-P2
Unavailable
4
PACKING 3
GU2-U266B-30-00
Unavailable
5
NUT, SPRING(GJ3)
90183-06902-00
$11.49
6
HINGE, LID
GU2-6517D-00-00
Unavailable
7
BOLT, WITH WASHER
90119-069UJ-00
Unavailable
8
PLATE HINGE LID
GU2-U518E-01-00
Unavailable
9
WASHER
9299R-06200-00
Unavailable
10
NUT, NYLON
9572R-06300-00
Unavailable
11
LOCK, LID
F1K-6517C-00-00
Unavailable
12
SCREW, WITH WASHER
90159-059U2-00
Unavailable
13
HOOK,LID LOCK
GU2-6517F-01-00
Unavailable
14
BOLT
9708R-06020-00
Unavailable
15
WASHER
9299R-06200-00
Unavailable
16
NUT, NYLON
9572R-06300-00
Unavailable
17
COVER,SIDE 1
GU2-U377B-00-P2
Unavailable
18
INNER, COVER SIDE 1
GU2-U377H-01-00
Unavailable
19
RIVET, BLIND
90267-48802-00
Unavailable
20
NUT, SPRING(GJ3)
90183-06902-00
$11.49
21
BOLT, WITH WASHER
90119-06830-00
Unavailable
22
BOLT
90101-069U0-00
Unavailable
23
NUT(650)
95380-06700-00
Unavailable
24
WASHER
9299R-06200-00
Unavailable
25
NUT, NYLON
9572R-06300-00
Unavailable
26
COVER,SIDE 2
GU2-U377C-00-P2
Unavailable
27
INNER, COVER SIDE 2
GU2-U377J-01-00
Unavailable
28
RIVET, BLIND
90267-48802-00
Unavailable
29
NUT, SPRING(GJ3)
90183-06902-00
$11.49
30
BOLT, WITH WASHER
90119-06830-00
Unavailable
31
BOLT
90101-069U0-00
Unavailable
32
NUT(650)
95380-06700-00
Unavailable
33
WASHER
9299R-06200-00
Unavailable
34
NUT, NYLON
9572R-06300-00
Unavailable
35
TRIM
GU2-U5162-00-00
Unavailable
36
COVER, FRONT(DARK RED MET.)
GU2-U513M-09-P2
Unavailable
37
RIVET, BLIND
90267-48802-00
Unavailable
38
PACKING
GJ3-U2664-02-00
Unavailable
