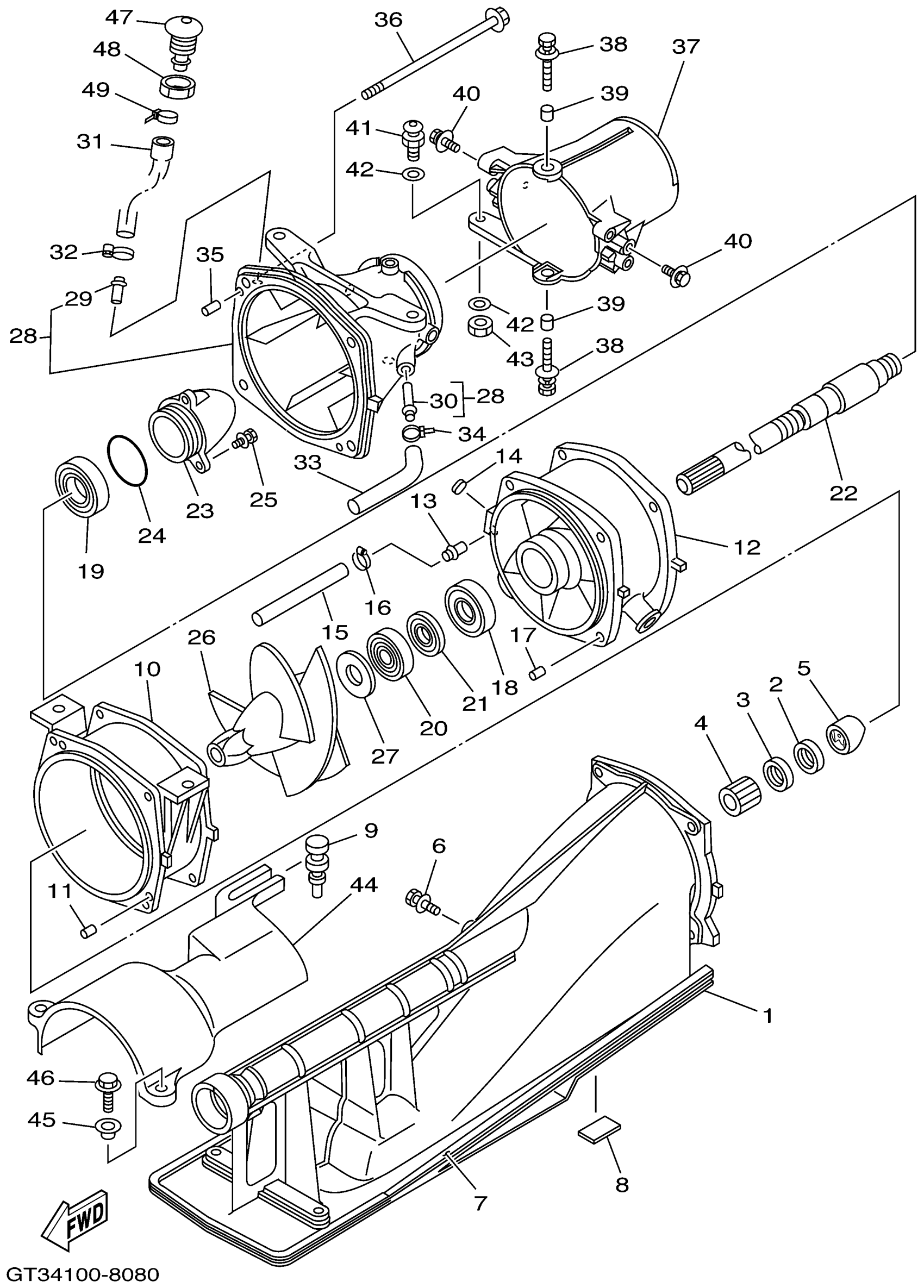

Yamaha XL700X (WAVE RUNNER XL700) F0M1 1999 JET UNIT 1 Diagram

#

Description
Price

1

DUCT, INTAKE

65U-R1311-00-00

Unavailable

2

OIL SEAL

93102-17M49-00

$9.79

3

OIL SEAL

93102-17M50-00

Unavailable

4

BUSHING, DRIVE SHAFT

65V-45318-00-00

$84.83

5

SPACER

65U-R1348-01-00

Unavailable

6

BOLT, WITH WASHER

90119-06892-00

$3.79

7

. FELT, PACKING

6R8-51367-01-00

$10.36

8

. FELT, PACKING

63M-51368-00-00

$3.64

9

GROMMET(6R7)

90480-06M46-00

$9.31

10

HOUSING, IMPELLER

63M-51312-02-94

Unavailable

11

PIN, DOWEL (614)

93606-12019-00

$3.05

12

DUCT, IMPELLER

63M-51315-02-00

Unavailable

13

NIPPLE

65A-R1129-10-00

Unavailable

14

PLUG

90331-12M05-00

$3.71

15

HOSE (L108)

90445-18M03-00

$15.36

16

BAND, HOSE 18

90601-118UF-00

$2.07

17

PIN, DOWEL (614)

93606-12019-00

$3.05

18

BEARING

93305-205U1-00

$104.53

19

BEARING (6K8)

93306-205U1-00

Unavailable

20

OIL SEAL(6R7)

93102-25M34-00

Unavailable

21

OIL SEAL(6R7)

93101-25M50-00

Unavailable

22

SHAFT, DRIVE

65R-45511-00-00

$381.80

23

CAP KIT

65A-R1326-10-KT

Unavailable

24

. O-RING

93210-46M16-00

$7.15

25

BOLT,WITH WASHER

90119-06890-00

$1.07

26

IMPELLER

65R-R1321-12-00

$328.77

27

SPACER

62T-51348-00-00

$52.82

28

NOZZLE

65R-R1318-00-00

Unavailable

29

. NIPPLE

65A-R1129-00-00

Unavailable

30

NIPPLE,HOSE

65A-R1334-01-00

Unavailable

31

PIPE 1

62E-51673-00-00

$24.98

32

BAND, HOSE 18

90601-118UF-00

$2.07

33

HOSE (L380)

90445-14M25-00

Unavailable

34

CLAMP

90465-10098-00

$1.68

35

PIN, DOWEL (614)

93606-12019-00

$3.05

36

BOLT,WASHER BASED

90105-088D7-00

Unavailable

37

NOZZLE,DEFLECTOR

65R-R1313-01-00

Unavailable

38

BOLT, WITH WASHER

90119-08852-00

$3.79

39

COLLAR

90387-08M08-00

$10.75

40

BOLT, WITH WASHER

90119-08852-00

$3.79

41

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

42

WASHER,PLATE

90201-068M4-00

Unavailable

43

NUT(650)

95380-06700-00

Unavailable

44

COVER

65R-R1381-00-00

Unavailable

45

COLLAR

90387-06M60-00

$6.37

46

BOLT, WITH WASHER

90119-06892-00

$3.79

47

SPOUT

FN8-6269B-00-00

$22.49

48

NUT

EU0-61652-00-00

$11.48

49

CLIP

90600-91755-00

$5.91
