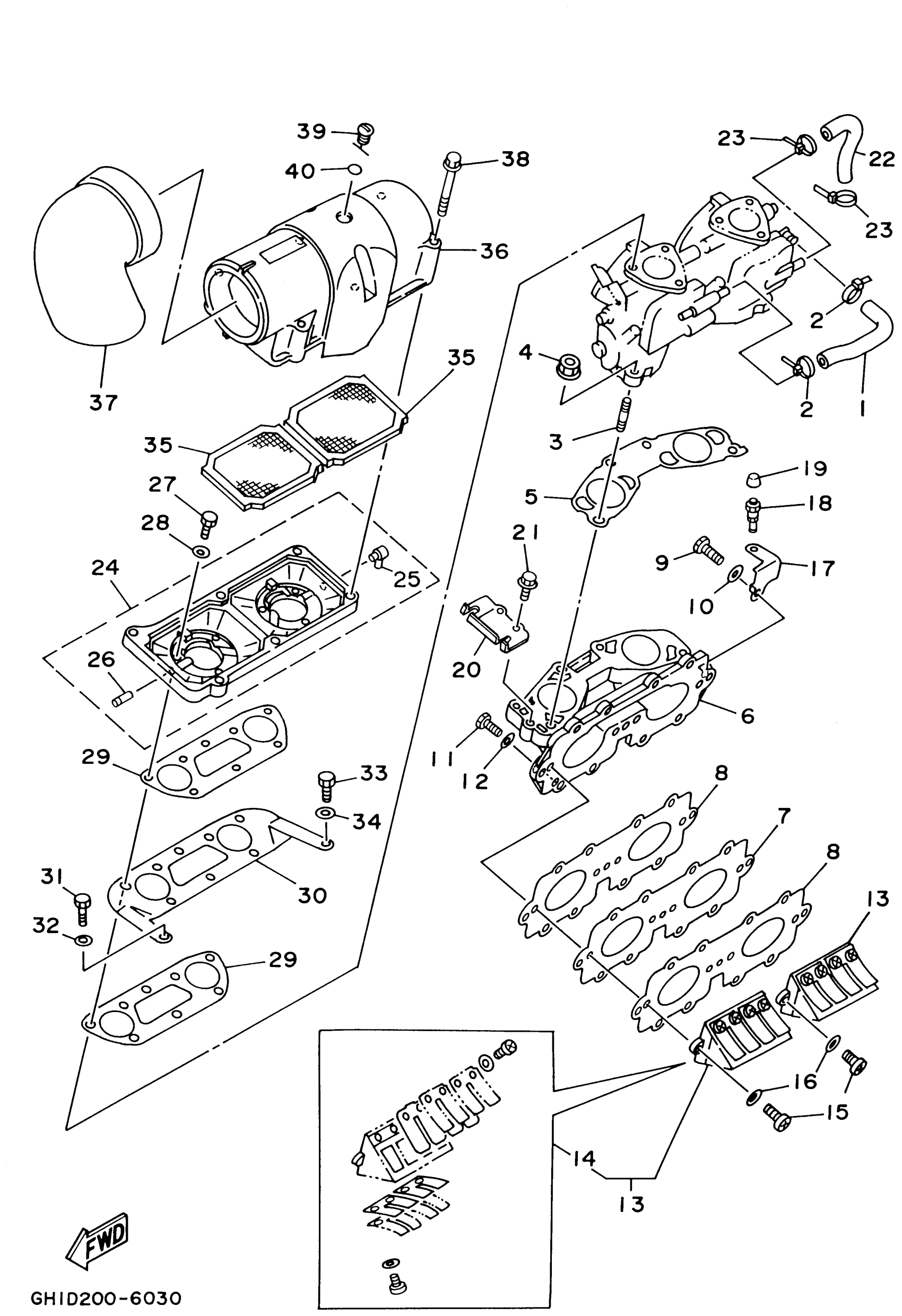

Yamaha XL700X (WAVE RUNNER XL700) F0M1 1999 INTAKE Diagram

#

Description
Price

1

PIPE 3

62T-24313-01-00

$11.05

2

CLAMP

90465-10098-00

$1.68

3

BOLT, STUD

90116-08M60-00

$4.55

4

NUT

90179-08M15-00

$6.37

5

. GASKET, MANIFOLD

62T-13556-00-00

$11.85

6

MANIFOLD, INTAKE

62T-13555-00-00

$131.80

7

. PLATE,REED VALVE

62T-13624-00-00

$19.68

8

. GASKET

62T-13566-00-00

$8.88

9

BOLT(3RV)

97014-06035-00

$1.54

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

BOLT(62Y)

97013-06025-00

$1.35

12

WASHER, PLAIN (646)

92990-06600-00

$1.84

13

REED VALVE ASSY

62T-13610-00-00

$162.11

14

. REED SET

62T-W0004-00-00

$73.56

15

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

16

WASHER, PLAIN (646)

92990-05600-00

Unavailable

17

PLATE

62T-14243-01-00

$18.49

18

NIPPLE, GREASE

61L-5169A-00-00

$7.40

19

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

20

PLATE

62T-14527-02-00

$18.49

21

BOLT, WITH WASHER(61B)

97513-06516-00

Unavailable

22

PIPE 4

62T-24314-01-00

$9.08

23

CLAMP

90465-10098-00

$1.68

24

COVER, CARBURETOR 2

62T-14284-01-8S

$148.47

25

NIPPLE, HOSE

6E5-11372-01-00

$9.99

26

. PIPE, JOINT

6H1-14485-00-00

$6.64

27

BOLT(62Y)

97013-06020-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

$1.84

29

. GASKET, AIR COOLER COVER 1

62T-13674-00-00

$5.55

30

PLATE

62T-14255-00-00

$45.44

31

BOLT (661)

97013-06012-00

Unavailable

32

WASHER, PLAIN (646)

92990-06600-00

$1.84

33

BOLT

90109-06M66-00

$10.99

34

WASHER, PLATE

90201-06M31-00

$2.80

35

ELEMENT, AIR CLEANER

62T-14451-00-00

$38.49

36

COVER, CARBURETOR 1

62T-14283-01-00

$50.99

37

PIPE

62T-14419-00-00

$78.77

38

BOLT, WITH WASHER

90119-05M02-00

$3.46

39

GROMMET

62T-14435-00-00

$3.70

40

. O-RING

93210-13M63-00

$3.52
