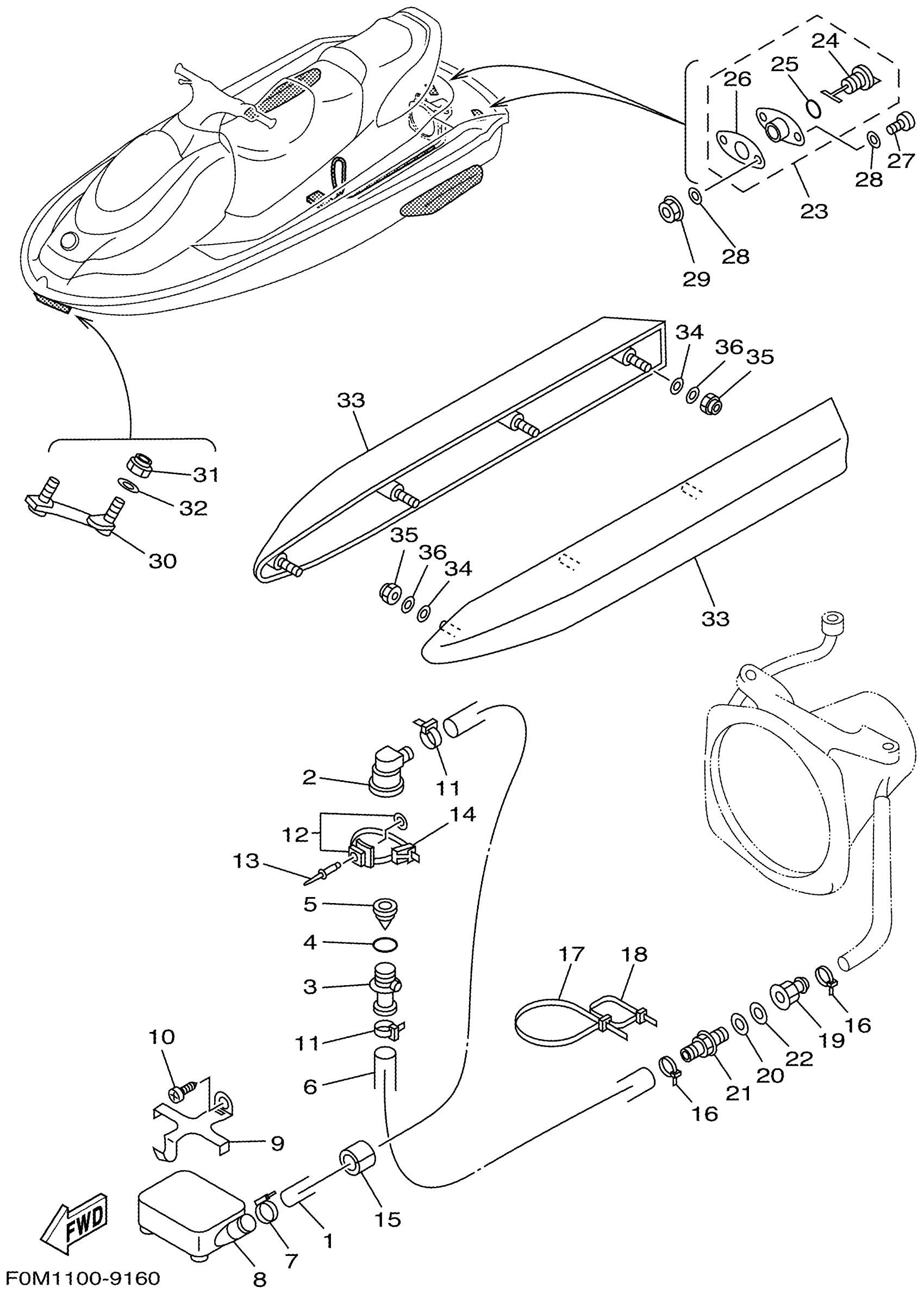

Yamaha XL700X (WAVE RUNNER XL700) F0M1 1999 HULL DECK Diagram

#

Description
Price

1

HOSE

90445-14M11-00

Unavailable

2

JOINT, HOSE 2

63M-51165-00-00

Unavailable

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

O-RING

93210-22ME5-00

$3.93

5

VALVE 1

63M-5316M-00-00

$25.49

6

HOSE

90445-19M01-00

Unavailable

7

BAND

90601-200U1-00

$2.77

8

STRAINER, BILGE

GD0-U761D-00-00

Unavailable

9

BASE, STRAINER BLIGE

EW2-67618-00-00

$37.49

10

SCREW, TAPPING(61A)

97780-50612-00

$3.77

11

BAND

90601-200U1-00

$2.77

12

CLAMP COMP (EU0)

90600-91736-00

$6.22

13

RIVET, BLIND

90267-489U7-00

Unavailable

14

BAND (EU0)

90601-20009-00

$6.36

15

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

16

BAND

90601-200U1-00

$2.77

17

NYLON CLIP 1(GD0)

90601-20016-00

Unavailable

18

BAND

90601-200U4-00

Unavailable

19

CONNECTION, THRU-HULL 1/4

90604-80759-00

$18.92

20

GASKET

90430-13909-00

Unavailable

21

CONNECTION, THROUGH HALL (GD0)

90604-80775-00

Unavailable

22

GASKET

90430-13909-00

Unavailable

23

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

24

. PLUG, DRAIN

EU0-62282-00-00

$7.40

25

. O-RING

EU0-62283-00-00

$3.70

26

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

27

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

28

. WASHER, PLAIN

92990-05200-00

$4.29

29

NUT, FLANGE

95720-05300-00

$1.28

30

BOWEYE 1

FN8-U1624-00-00

Unavailable

31

. NUT, SELF-LOCKING

95720-08300-00

$3.33

32

WASHER, PLAIN

92990-08200-00

$2.36

33

STABILIZER (BLACK)

GH3-U883M-30-00

Unavailable

34

PACKING, STABILIZER

GT3-U883U-00-00

Unavailable

35

NUT, SELF-LOCKING

95720-06300-00

$1.82

36

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable
