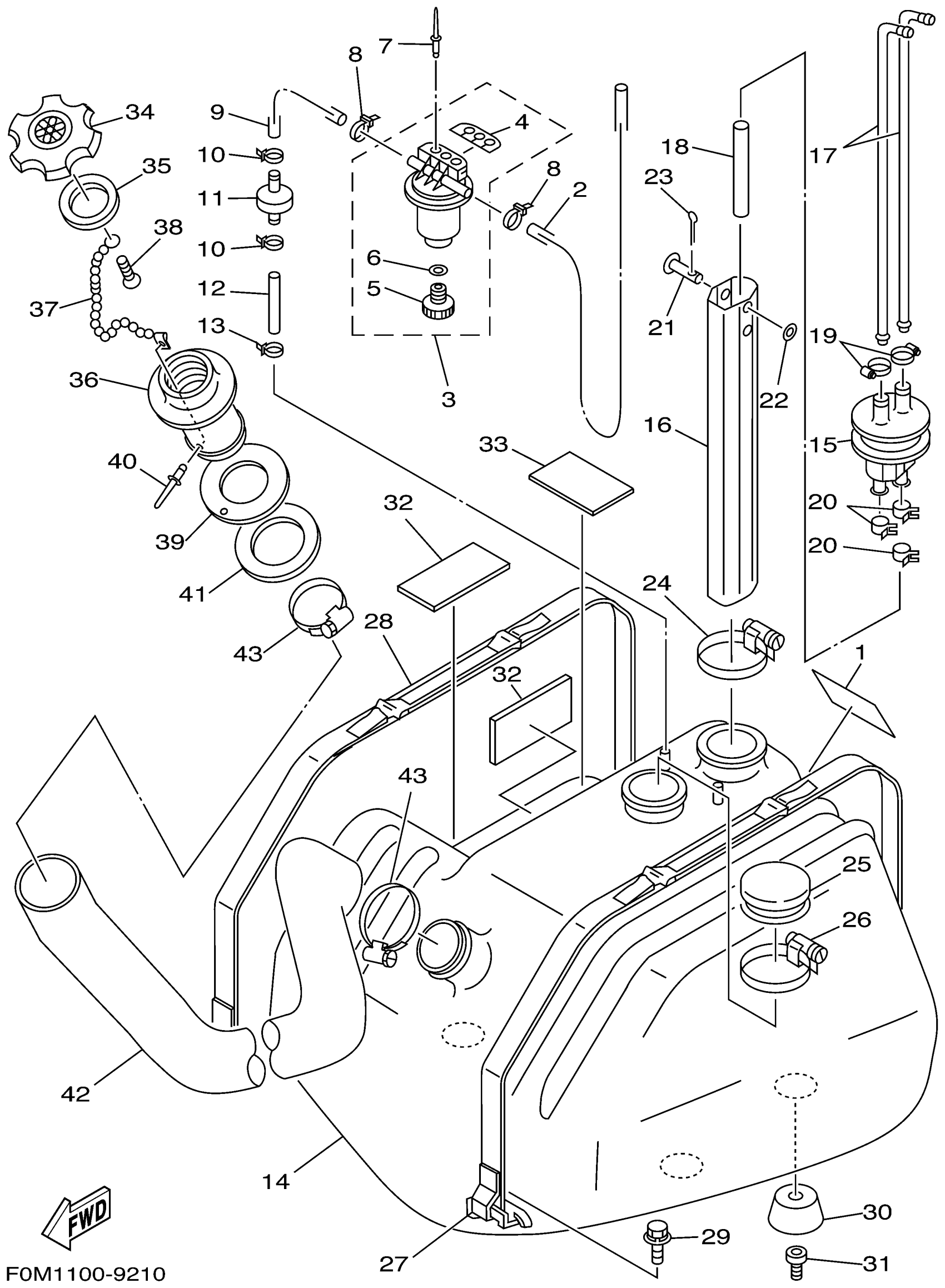

Yamaha XL700X (WAVE RUNNER XL700) F0M1 1999 FUEL TANK Diagram
#
1
LABEL, FUEL TANK
GH3-6418D-00-00
Unavailable
2
HOSE AIR VENT
GP7-U785J-00-00
Unavailable
3
FILTER, VENT ASSY
F2F-6214A-00-00
Unavailable
4
. PLATE, FILTER
EW2-62142-00-00
Unavailable
5
. PLUG, DRAIN
70R-24543-00-00
Unavailable
6
. O-RING
70R-24489-00-00
Unavailable
7
RIVET, BLIND
90267-489U2-00
Unavailable
8
CLAMP
90465-10098-00
Unavailable
9
HOSE, AIR VENT 3
GU2-U785H-00-00
Unavailable
10
CLAMP
90465-10098-00
Unavailable
11
CHECK VALVE
EU0-67767-31-00
Unavailable
12
HOSE, AIR VENT 3
GP7-U785H-00-00
Unavailable
13
CLAMP
90465-10098-00
Unavailable
14
TANK, FUEL
GH3-U7711-00-00
Unavailable
15
PIPE, JOINT
FJ0-67713-01-00
Unavailable
16
SLEEVE 1
FJ0-67716-01-00
Unavailable
17
PIPE, SUCTION 3
FJ0-67714-02-00
Unavailable
18
HOSE (L198)
90445-11293-00
Unavailable
19
BAND, HOSE 11
90601-11062-00
Unavailable
20
CLIP (7K7)
90467-11044-00
Unavailable
21
PIN (FJ0)
91790-05040-00
Unavailable
22
WASHER, PLAIN (646)
92990-05600-00
Unavailable
23
PIN. COTTER
91490-16010-00
Unavailable
24
BAND, HOSE 62
90601-162U5-00
Unavailable
25
COVER
FN8-6771K-00-00
Unavailable
26
BAND, HOSE 62
90601-162U5-00
Unavailable
27
BELT, TANK 1
GJ1-67743-01-00
Unavailable
28
BELT, TANK 1
GH3-67743-01-00
Unavailable
29
BOLT, WITH WASHER
90119-08800-00
Unavailable
30
DAMPER, FUEL TANK
GH1-U782B-00-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD
90110-089U1-00
Unavailable
32
MAT 1
GJ1-U759B-00-00
Unavailable
33
MAT 2
GJ1-U759C-00-00
Unavailable
34
CAP, FUEL FILLER
GP7-U7831-11-00
Unavailable
35
PACKING
GP7-U7832-01-00
Unavailable
36
SOCKET
GP7-U7833-11-00
Unavailable
37
CHAIN BALL
GP7-U7835-00-00
Unavailable
38
SCREW, TRUSS HEAD TAPPING
90169-049U1-00
Unavailable
39
PACKING FUEL FILLER
GP7-U7834-10-00
Unavailable
40
RIVET, BLIND
90267-329UR-00
Unavailable
41
NUT, FUEL FILLER
GP7-U783F-00-00
Unavailable
42
HOSE
GP3-U7844-00-00
Unavailable
43
BAND, HOSE 55
90601-155U4-00
Unavailable
