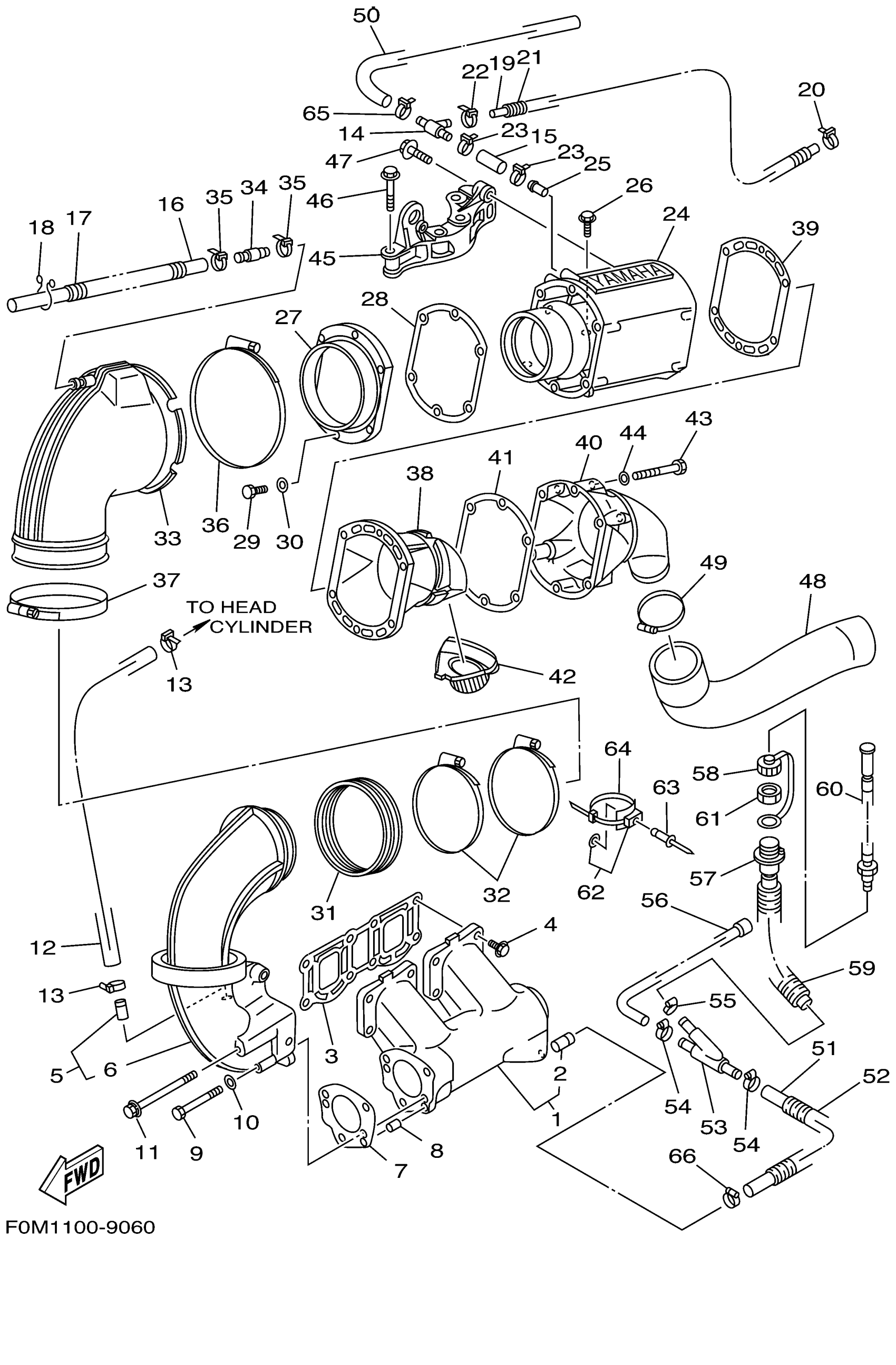

Yamaha XL700X (WAVE RUNNER XL700) F0M1 1999 EXHAUST 1 Diagram
#
1
MUFFLER 1
62T-14711-10-94
Unavailable
2
. NIPPLE
6K8-51129-00-00
Unavailable
3
GASKET, EXHAUST PIPE
62T-14613-01-00
Unavailable
4
BOLT, FLANGE
90105-10M60-00
Unavailable
5
RING, JOINT
62T-14712-00-94
Unavailable
6
. NIPPLE
6K8-51129-00-00
Unavailable
7
GASKET, MUFFLER DAMPER 2
62T-14749-02-00
Unavailable
8
PIN, DOWEL(62T)
93605-12M21-00
Unavailable
9
BOLT (6K8)
97013-08075-00
$7.49
10
.. WASHER, PLATE
92990-08600-00
Unavailable
11
BOLT, WITH WASHER
90119-08M11-00
Unavailable
12
HOSE (L380)
90445-14M25-00
$24.99
13
CLAMP
90465-10098-00
Unavailable
14
PIPE, JOINT 4
63N-24378-00-00
Unavailable
15
HOSE (L50)
90445-21M02-00
Unavailable
16
HOSE (L1300)
90445-14M22-00
Unavailable
17
HOSE(61L)
90446-20M31-00
Unavailable
18
CLAMP
90464-15M11-00
Unavailable
19
HOSE (L380)
90445-14M25-00
$24.99
20
CLAMP
90465-10098-00
Unavailable
21
HOSE(61L)
90446-20M31-00
Unavailable
22
CLAMP
90465-10098-00
Unavailable
23
CLAMP
90465-11M59-00
Unavailable
24
MUFFLER 2
62T-14721-00-8S
Unavailable
25
PIPE, JOINT
62T-14485-10-00
Unavailable
26
BOLT, FLANGE
90105-10M60-00
Unavailable
27
OUTER COVER, EXHAUST
62T-41113-00-8S
Unavailable
28
GASKET, EXHAUST OUTER COVER
62T-41114-01-00
Unavailable
29
BOLT(62Y)
97013-06025-00
Unavailable
30
WASHER, PLAIN (646)
92990-06600-00
Unavailable
31
JOINT, EXHAUST 2
62T-14625-00-00
Unavailable
32
HOSE CLAMP ASSY(62T)
90450-99M06-00
Unavailable
33
JOINT, EXHAUST 1
62T-14615-01-00
Unavailable
34
PIPE, JOINT 2
6R3-24377-00-00
Unavailable
35
CLAMP
90465-10098-00
Unavailable
36
HOSE CLAMP ASSY
90450-99M18-00
Unavailable
37
HOSE CLAMP ASSY(62T)
90450-99M02-00
Unavailable
38
INNER COVER,EXHAUST
62T-41121-00-8S
Unavailable
39
. GASKET, EXHAUST INNER COVER
62T-41122-00-00
Unavailable
40
OUTER COVER, EXHAUST
62T-41123-01-8S
Unavailable
41
. GASKET, EXHAUST OUTER COVER
62T-41124-00-00
Unavailable
42
SEAL, RUBBER 1
63N-15761-00-00
Unavailable
43
BOLT(62J)
97013-06070-00
Unavailable
44
WASHER, PLAIN (646)
92990-06600-00
Unavailable
45
STAY, MUFFLER 1
62T-14771-00-00
Unavailable
46
BOLT, WITH WASHER
90119-10M72-00
Unavailable
47
BOLT, WASHER BASED
90105-10M45-00
Unavailable
48
PIPE, OUTLET
63N-14752-30-00
Unavailable
49
HOSE CLAMP ASSY(62T)
90450-70M03-00
Unavailable
50
HOSE (L1390)
90445-21M00-00
Unavailable
51
HOSE
90445-14M03-00
Unavailable
52
HOSE(GK5)
90446-20M65-00
Unavailable
53
JOINT, HOSE 1
64X-12581-00-00
Unavailable
54
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
55
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
56
PIPE, WATER
65R-12564-00-00
Unavailable
57
JOINT ASSY
64T-12580-00-00
Unavailable
58
CAP,1
682-84385-01-00
Unavailable
59
HOSE (L420)
90446-24M89-00
Unavailable
60
CONDUCTION ASSY (US)
67X-E2590-00-00
Unavailable
61
NUT
EU0-61652-00-00
Unavailable
62
CLAMP COMP (EU0)
90600-91736-00
Unavailable
63
RIVET, BLIND
90267-489U7-00
Unavailable
64
BAND (EU0)
90601-20009-00
Unavailable
65
BAND
90601-200U1-00
Unavailable
66
BAND, HOSE 18
90601-118UF-00
Unavailable
