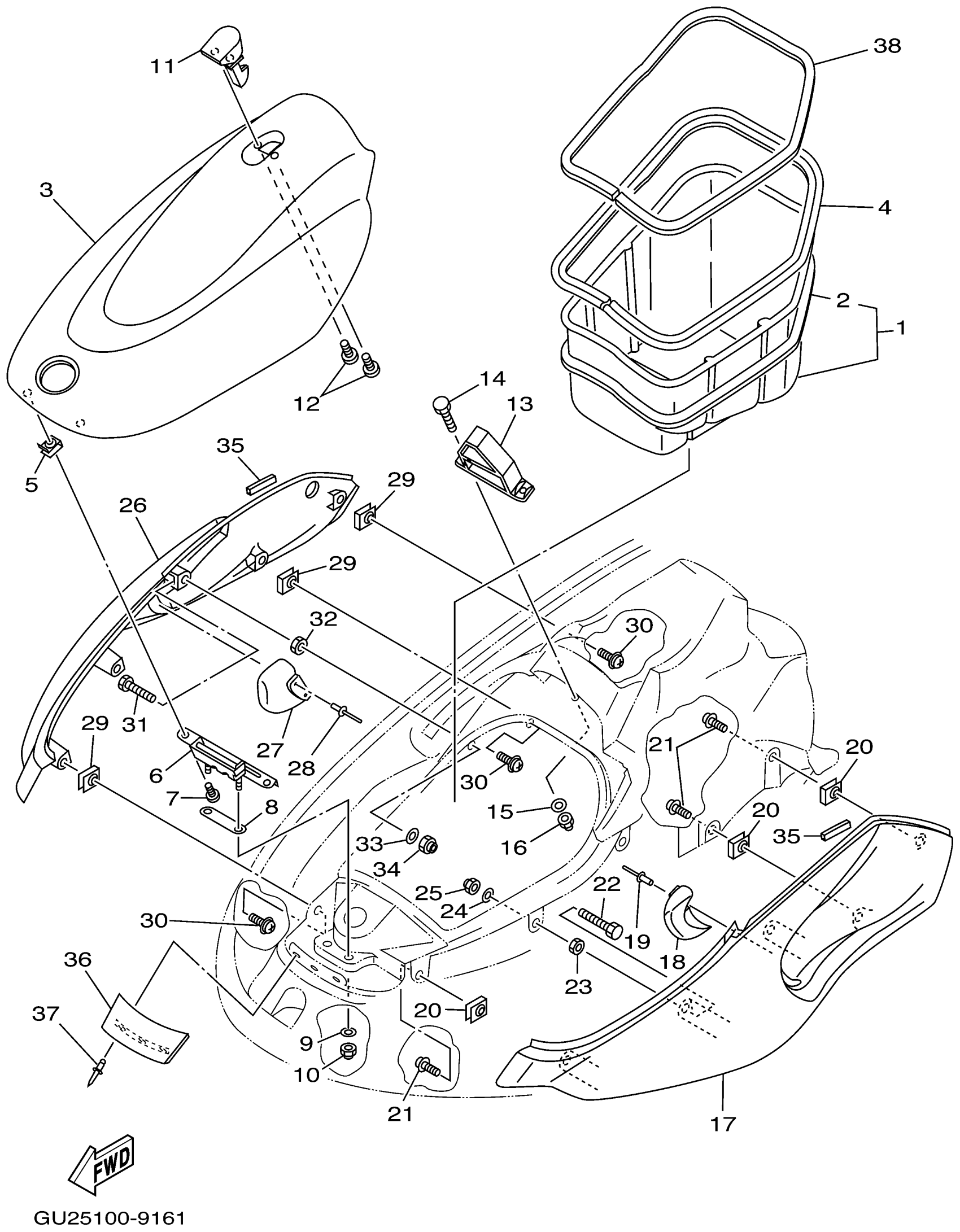

Yamaha XL700X (WAVE RUNNER XL700) F0M1 1999 ENGINE HATCH 2 Diagram

#

Description
Price

1

BOW LOCKER ASSY

GU2-U475A-00-00

Unavailable

2

PACKING 4

GJ3-U266C-31-00

Unavailable

3

LID, ENGINE ROOM

GU2-U517B-00-P1

Unavailable

4

PACKING 3

GU2-U266B-30-00

Unavailable

5

NUT, SPRING(GJ3)

90183-06902-00

$8.53

6

HINGE, LID

GU2-6517D-00-00

$81.80

7

BOLT, WITH WASHER

90119-069UJ-00

$2.80

8

PLATE HINGE LID

GU2-U518E-01-00

Unavailable

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

10

NUT, SELF-LOCKING

95720-06300-00

$1.82

11

LOCK, LID

F1K-6517C-00-00

$74.23

12

SCREW, WITH WASHER

90159-059U2-00

Unavailable

13

HOOK,LID LOCK

GU2-6517F-01-00

Unavailable

14

BOLT(7U8)

97080-06020-00

$3.63

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

16

NUT, SELF-LOCKING

95720-06300-00

$1.82

17

COVER, SIDE 1

GU2-U377B-00-P1

Unavailable

18

INNER, COVER SIDE 1

GU2-U377H-01-00

Unavailable

19

RIVET, BLIND

90267-48802-00

$1.98

20

NUT, SPRING(GJ3)

90183-06902-00

$8.53

21

BOLT, WITH WASHER

90119-06830-00

Unavailable

22

BOLT

90101-069U0-00

$1.23

23

NUT(650)

95380-06700-00

Unavailable

24

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

25

NUT, SELF-LOCKING

95720-06300-00

$1.82

26

COVER, SIDE 2

GU2-U377C-00-P1

Unavailable

27

INNER, COVER SIDE 2

GU2-U377J-01-00

Unavailable

28

RIVET, BLIND

90267-48802-00

$1.98

29

NUT, SPRING(GJ3)

90183-06902-00

$8.53

30

BOLT, WITH WASHER

90119-06830-00

Unavailable

31

BOLT

90101-069U0-00

$1.23

32

NUT(650)

95380-06700-00

Unavailable

33

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

34

NUT, SELF-LOCKING

95720-06300-00

$1.82

35

TRIM

GU2-U5162-00-00

Unavailable

36

COVER, FRONT (DARK RED MET.)

GU2-U513M-09-P1

Unavailable

37

RIVET, BLIND

90267-48802-00

$1.98

38

PACKING

GJ3-U2664-02-00

Unavailable
