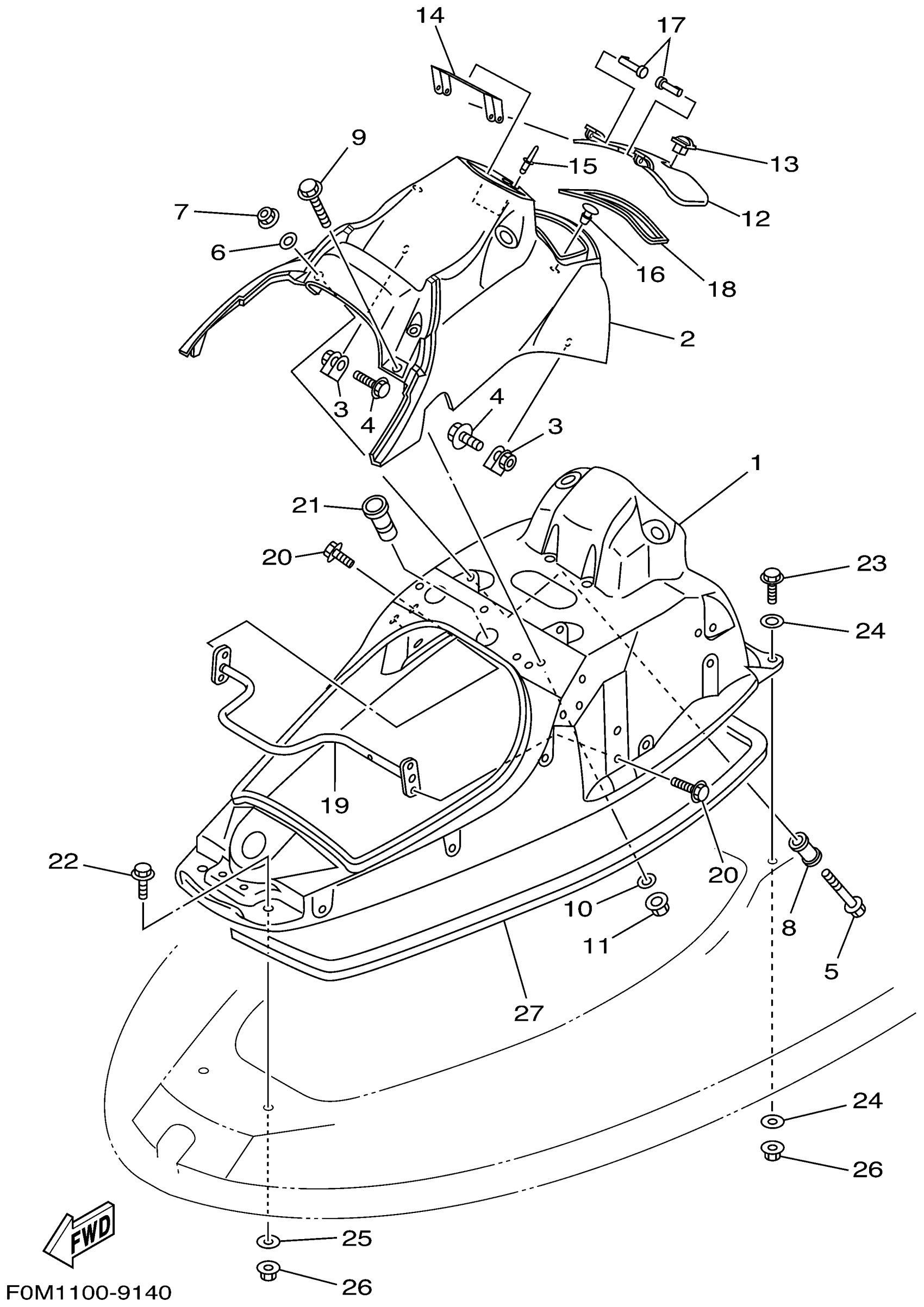

Yamaha XL700X (WAVE RUNNER XL700) F0M1 1999 ENGINE HATCH 1 Diagram

#

Description
Price

1

ENGINE HATCH COMP.

F0M-U516A-00-00

Unavailable

2

COVER, ENGINE HATCH

F0M-U516N-00-P0

Unavailable

3

NUT, SPRING(GJ3)

90183-06902-00

$11.49

4

BOLT, WITH WASHER

90119-06830-00

Unavailable

5

BOLT, WITH WASHER

90119-06914-00

Unavailable

6

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

7

NUT, SELF-LOCKING

95720-06300-00

Unavailable

8

COLLAR

90387-06922-00

Unavailable

9

BOLT, WITH WASHER

90119-06900-00

Unavailable

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

NUT, SELF-LOCKING

95720-06300-00

Unavailable

12

LID HATCH

GU2-U517H-00-P1

Unavailable

13

LOCK

GU2-62875-02-00

Unavailable

14

HINGE, HATCH

GU2-U517G-00-00

Unavailable

15

RIVET, BLIND

90267-40937-00

Unavailable

16

. PLUG

90605-502U2-00

Unavailable

17

PIN, HINGE

GU2-6517R-00-00

Unavailable

18

PACKING CASE

GU2-U519D-00-00

Unavailable

19

BEAM, ENGINE HATCH

GU2-6516L-00-00

Unavailable

20

BOLT, WITH WASHER

90119-06830-00

Unavailable

21

GROMMET

GU2-6822E-01-00

Unavailable

22

BOLT, WITH WASHER

90119-089U9-00

Unavailable

23

BOLT, WITH WASHER

90119-08829-00

Unavailable

24

WASHER, PLATE

90201-099U1-00

Unavailable

25

WASHER (FJ0)

90201-08929-00

Unavailable

26

. NUT, SELF-LOCKING

95720-08300-00

Unavailable

27

PACKING 1

GJ3-U2663-01-00

Unavailable
