Description

Price

1

BOLT, WITH WASHER

90119-08800-00

$4.09

2

BAND (EU0)

90601-20009-00

$6.36

3

HOUSING

62L-8552A-00-8P

$162.11

4

COVER, CASE

6M6-8552E-01-00

$78.77

5

GASKET, TERMINAL

6M6-81921-00-00

$19.63

6

SCREW, TAPPING(65J)

97780-60625-00

$2.64

7

BRACKET

66D-85542-00-00

$69.68

8

BOLT (62G)

97095-08025-00

$6.12

9

.. WASHER, PLATE

92990-08600-00

$2.17

10

MARK 3

6R7-83623-40-00

$7.27

11

GASKET

6M6-81844-00-00

$10.99

12

CAP

6M6-8132W-00-00

$14.38

13

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

14

FUSE (10A)

1E6-82151-00-00

$5.80

15

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

16

C.D.I. UNIT ASSY

62T-85540-04-00

Unavailable

17

CLAMP

90464-06M29-00

$6.36

18

SCREW, PAN HEAD

98580-06016-00

$2.88

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

STARTER RELAY ASSY

6G1-81941-10-00

$65.25

21

HOLDER, RELAY

6M6-81952-01-00

Unavailable

22

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

$112.11

23

CLAMP

90465-06M86-00

$6.64

24

SCREW, PAN HEAD

98580-06016-00

$2.88

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

IGNITION COIL ASSY

62E-85570-11-00

$209.08

27

. CAP, PLUG

62E-82371-11-00

$42.41

28

. TUBE, CORD

62E-82351-01-00

$6.36

29

. CAP, PLUG

62E-82371-11-00

$42.41

30

. TUBE, CORD 2

62E-82352-01-00

$4.39

31

GROMMET

90480-06M43-00

$6.82

32

CLAMP

90465-10098-00

$1.68

33

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

34

WASHER, PLAIN (646)

92990-06600-00

Unavailable

35

SCREW, PAN HEAD

98580-06016-00

$2.88

36

WASHER, PLAIN (646)

92990-06600-00

Unavailable

37

CLAMP, CORD

62T-82361-00-00

$10.99

38

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

$4.28

39

EXTENSION, WIRE LEAD

63N-82553-00-00

$251.50

40

WIRE, LEAD

63N-82117-00-00

$118.17

41

WIRE, LEAD

63N-82117-11-00

$75.74

42

THERMOSWITCH ASSY

62T-82560-01-00

$203.02

43

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

44

WASHER, SPRING

92995-06100-00

$2.95

45

WIRE, LEAD

62L-82117-20-00

$89.38

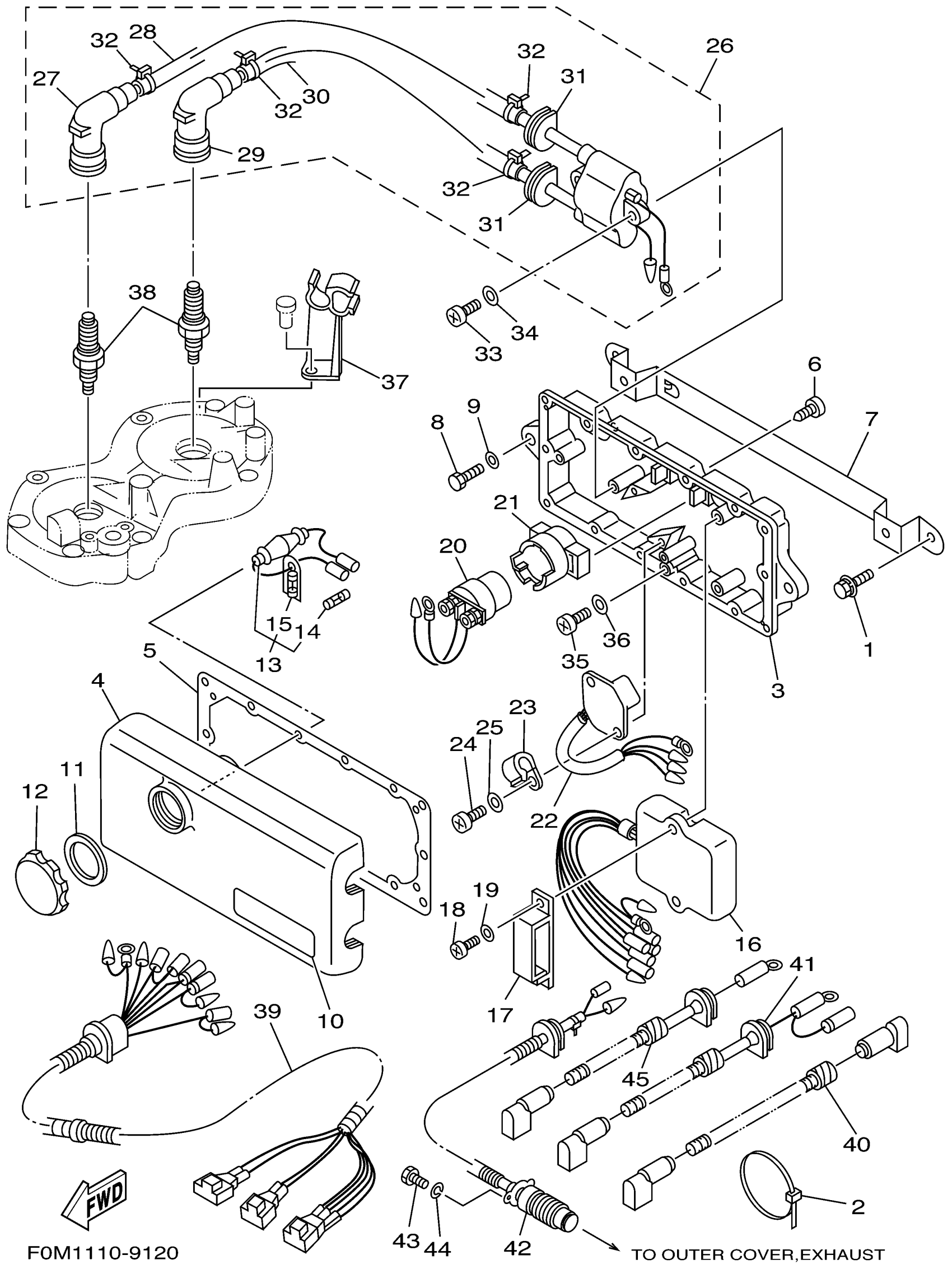

Yamaha XL700X (WAVE RUNNER XL700) F0M1 1999 ELECTRICAL 1 Diagram

BOLT, WITH WASHER

BAND (EU0)

HOUSING

COVER, CASE

GASKET, TERMINAL

SCREW, TAPPING(65J)

BRACKET

BOLT (62G)

.. WASHER, PLATE

MARK 3

GASKET

CAP

FUSE HOLDER ASSY

FUSE (10A)

FUSE SPEAR (10A)

C.D.I. UNIT ASSY

CLAMP

SCREW, PAN HEAD

WASHER, PLAIN (646)

STARTER RELAY ASSY

HOLDER, RELAY

RECTIFIER & REGULATOR ASSY

CLAMP

SCREW, PAN HEAD

WASHER, PLAIN (646)

IGNITION COIL ASSY

. CAP, PLUG

. TUBE, CORD

. CAP, PLUG

. TUBE, CORD 2

GROMMET

CLAMP

SCREW, PAN HEAD(6E0)

WASHER, PLAIN (646)

SCREW, PAN HEAD

WASHER, PLAIN (646)

CLAMP, CORD

BR8HS NGK SCREW TOP PLUG 4PK

EXTENSION, WIRE LEAD

WIRE, LEAD

WIRE, LEAD

THERMOSWITCH ASSY

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WIRE, LEAD
