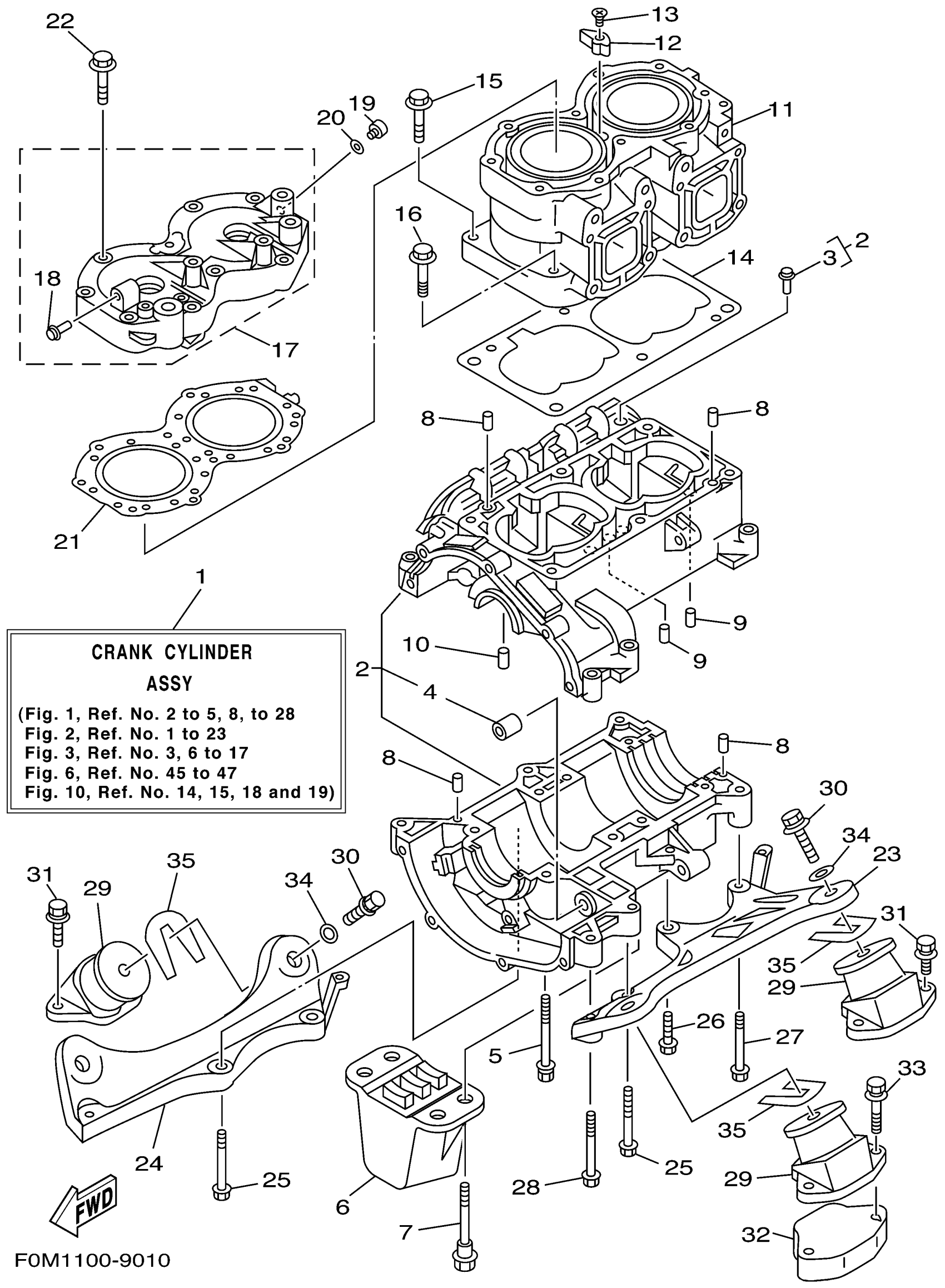

Yamaha XL700X (WAVE RUNNER XL700) F0M1 1999 CYLINDER CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

62T-W0090-03-8S

$3,416.65

2

CRANKCASE ASSY

62T-15100-00-00

$804.53

3

NIPPLE

62T-14251-10-00

$4.51

4

. BUSH, SOLID

90380-12M29-00

Unavailable

5

BOLT, WITH WASHER

90119-08M55-00

$2.95

6

STOPPER, UPPER MOUNT

63N-44532-01-00

$160.59

7

BOLT

90109-08M56-00

$4.09

8

PIN, DOWEL (614)

93606-12019-00

$3.05

9

PIN (2H7)

93603-10049-00

Unavailable

10

PIN, DOWEL (8H1)

93604-07141-00

$1.29

11

CYLINDER 1

62T-11311-00-8S

$868.17

12

ANODE

6E5-11325-00-00

$4.08

13

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

14

GASKET, CYLINDER

6M6-11351-A2-00

$18.15

15

BOLT, WITH WASHER

90119-10M56-00

$10.24

16

BOLT (6F5)

90119-10M07-00

Unavailable

17

HEAD, CYLINDER 1

62T-11111-00-8S

$366.65

18

. NIPPLE

6K8-51129-00-00

$9.62

19

PLUG, STRAIGHT SCREW

90340-08002-00

$10.69

20

GASKET

90430-08003-00

$1.08

21

GASKET, CYLINDER HEAD 1

62T-11181-01-00

$59.08

22

BOLT, WITH WASHER

90119-08019-00

$4.79

23

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$131.80

24

BRACKET, REAR UPPER 1

6R7-21425-01-00

$139.38

25

BOLT, WITH WASHER

90119-10M23-00

$10.24

26

BOLT, WITH WASHER

90119-10M00-00

$8.56

27

BOLT, WITH WASHER

90119-10M03-00

$9.08

28

BOLT, WITH WASHER

90119-10M01-00

$9.08

29

MOUNT RUBBER

6M6-44517-A2-94

$90.89

30

BOLT, WITH WASHER

90119-089UT-00

$3.16

31

BOLT, WITH WASHER

90119-089U1-00

$3.23

32

SPACER, ENGINE MOUNT

GJ1-6721B-00-00

Unavailable

33

BOLT, WITH WASHER

90119-08856-00

$5.17

34

PLATE

EU0-67324-00-00

$8.14

35

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

35

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

35

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

35

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

35

SHIM (T=2.0)

EU0-67354-E0-00

$4.09
