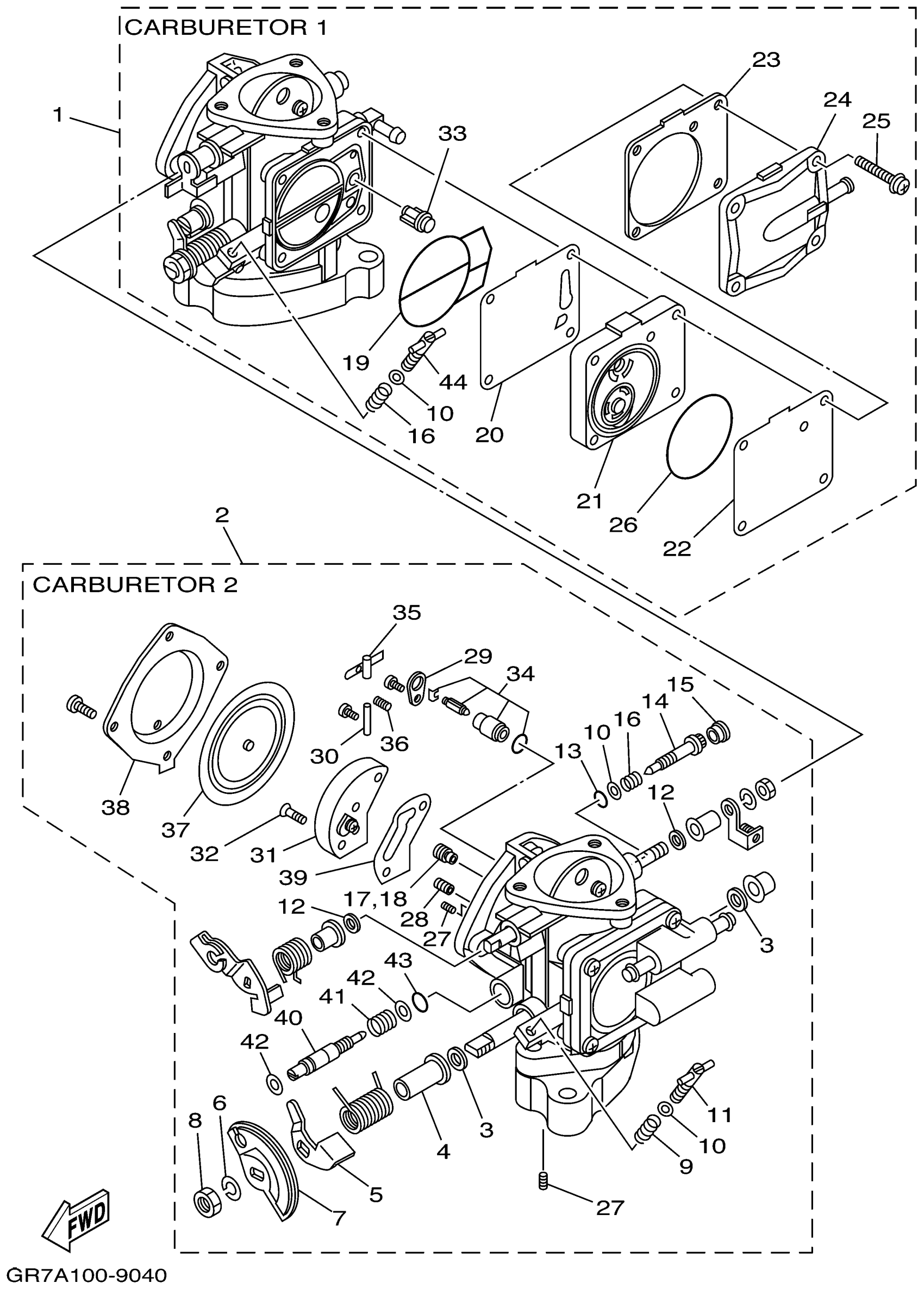

Yamaha XL700X (WAVE RUNNER XL700) F0M1 1999 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
62T-14301-03-00
Unavailable
2
CARBURETOR ASSY 2
62T-14302-03-00
Unavailable
3
. WASHER
6R7-14596-01-00
Unavailable
4
. COLLAR
6K8-14534-10-00
Unavailable
5
. BRACKET, THROTTLE 1
6K8-14926-10-00
Unavailable
6
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
7
. THROTTLE SHAFT ASSEMBLY
6K8-14930-00-00
Unavailable
8
. NUT
95380-08700-00
Unavailable
9
. SPRING, ADJUST SCREW
6K8-14531-00-00
Unavailable
10
WASHER,NEEDLE
812-14235-00-00
Unavailable
11
SCREW,ADJUST
6M6-14521-01-00
Unavailable
12
. WASHER
6K8-14597-11-00
Unavailable
13
. O-RING
6K8-14562-00-00
Unavailable
14
. PLATE, NEEDLE FITTING
6K8-14946-10-00
Unavailable
15
. CAP, CARBURETOR
6K8-14471-10-00
Unavailable
16
. SPRING, ADJUST SCREW
6K8-14533-00-00
Unavailable
17
JET, MAIN (#130)
3G2-14231-26-A0
Unavailable
18
JET,MAIN(#120)
3G2-14231-24-00
Unavailable
19
. O-RING
6K8-14564-00-00
Unavailable
20
. DIAPHRAGM
6K8-24411-20-00
Unavailable
21
BODY 2
6M6-24413-02-00
Unavailable
22
. VALVE, CHECK
6K8-24421-10-00
Unavailable
23
. GASKET, FUEL PUMP 1
6K8-24431-20-00
Unavailable
24
. COVER
6K8-24452-10-00
Unavailable
25
SCREW, WITH WASHER(61B)
97985-05330-00
Unavailable
26
. O-RING
6K8-14563-00-00
Unavailable
27
. SCREW
6K8-14521-10-00
Unavailable
28
JET,MAIN #67.5
830-1423A-64-00
Unavailable
29
. PLATE
6K8-14527-11-00
Unavailable
30
. PIN, FLOAT
6K8-14579-00-00
Unavailable
31
. BODY 1
6R7-24412-01-00
Unavailable
32
SCREW, STOP
6K8-14523-12-00
Unavailable
33
. STRAINER
6R7-14569-00-00
Unavailable
34
NEEDLE
61X-14916-16-00
Unavailable
35
. ARM, FLOAT
6K8-14547-01-00
Unavailable
36
. SPRING
6R7-14253-00-00
Unavailable
37
. DIAPHRAGM, PUMP
6R7-14541-00-00
Unavailable
38
. BODY, PUMP 1
6R7-14542-00-00
Unavailable
39
. GASKET
6K8-14536-11-00
Unavailable
40
. SCREW, PILOT
65U-14923-10-00
Unavailable
41
. SPRING
6K8-14589-00-00
Unavailable
42
. WASHER
6K8-14537-00-00
Unavailable
43
O-RING
583-14561-00-00
Unavailable
44
. SCREW, ADJUST
6K8-14521-00-00
Unavailable
