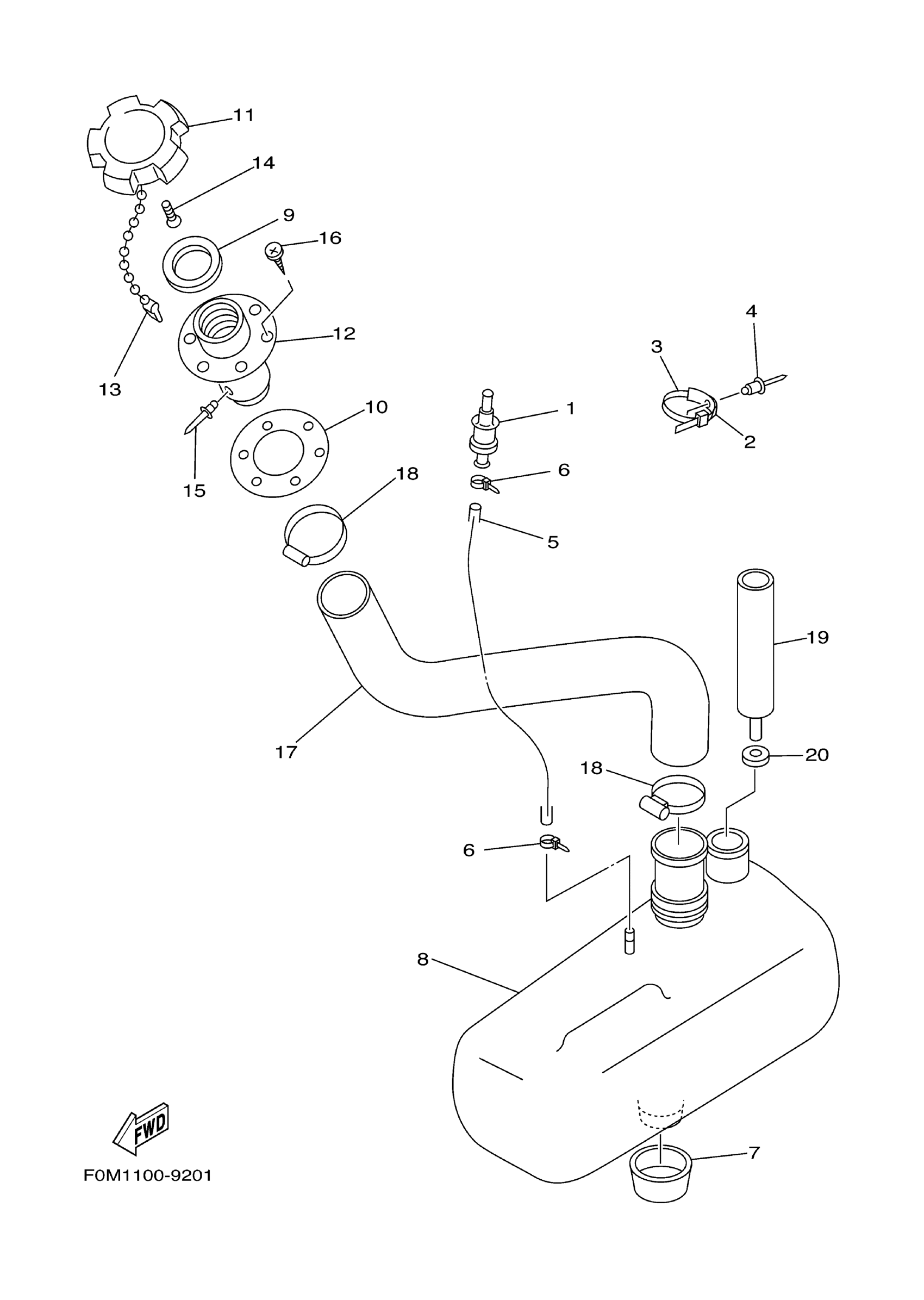

Yamaha XL700C (XL700) F0MF 2004 OIL TANK Diagram

#

Description
Price

1

. ROLL OVER VALVE

FJ0-67766-00-00

$54.53

2

CLAMP COMP (EU0)

90600-91736-00

$6.22

3

CLAMP

90464-32801-00

$1.23

4

RIVET, BLIND

90267-48802-00

$1.98

5

HOSE, AIR VENT 3

GJ3-U7856-20-00

Unavailable

6

CLAMP

90465-10098-00

$1.68

7

MAT 3

GH1-U759D-00-00

Unavailable

8

TANK, OIL

GJ3-U775B-02-00

Unavailable

9

PACKING, OIL CAP

GJ3-U778C-00-00

$1.72

10

PACKING, OIL FILLER

GJ3-U778E-00-00

$3.56

11

CAP, OIL FILLER

GJ3-U778B-00-00

Unavailable

12

SOCKET, OIL FILLER

GJ3-U778D-00-00

$4.70

13

CHAIN BALL

EU0-U7835-00-00

$8.32

14

SCREW,TAPPING (EU0)

97780-40110-00

$1.05

15

. RIVET, BLIND

90267-40935-00

$1.28

16

SCREW, FLAT HEAD TAPPING

FX1-67869-00-00

$1.36

17

HOSE, OIL FILLER

GU2-U776C-00-00

Unavailable

18

BAND, HOSE 52

90601-152U3-00

$5.67

19

STRAINER, OIL

6J8-13411-00-00

$24.61

20

GASKET, STRAINER COVER

6J8-13414-00-00

$2.80
