- XL700C (XL700) F0MF 2004
JET UNIT 2

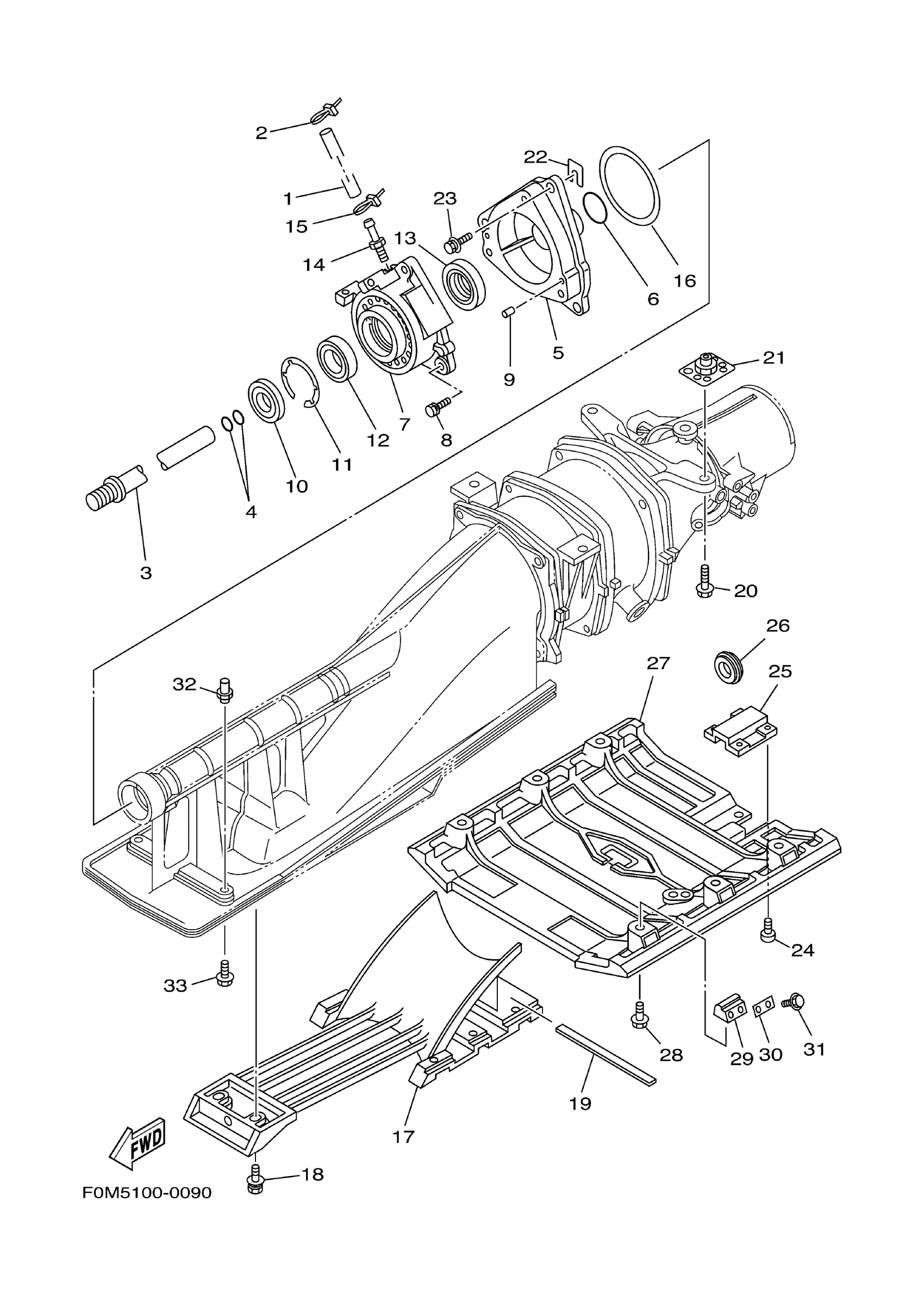

Yamaha XL700C (XL700) F0MF 2004 JET UNIT 2 Diagram
#
1
HOSE (L445)
90445-09M21-00
$26.99
2
CLAMP
90465-10098-00
Unavailable
3
SHAFT, COUPLOR
63N-51323-10-00
Unavailable
4
O-RING(6R7)
93210-17MA4-00
$7.49
5
HOUSING, BEARING
65A-G5331-00-00
Unavailable
6
O-RING
93210-35M72-00
$14.99
7
HOUSING, BEARING
65U-45332-02-94
Unavailable
8
BOLT, WITH WASHER
90119-08841-00
Unavailable
9
PIN, DOWEL (614)
93606-12019-00
$4.24
10
OIL SEAL(62T)
93101-25M55-00
$30.99
11
CIRCLIP
93430-47M04-00
Unavailable
12
BEARING(62G)
93306-205U6-00
Unavailable
13
OIL SEAL
93101-24001-00
$31.99
14
NIPPLE, HOSE
61L-45378-00-00
Unavailable
15
CLAMP
90465-10098-00
Unavailable
16
SEAL
6K8-45127-00-00
Unavailable
17
SCREEN, INTAKE
65R-R1333-00-00
Unavailable
18
BOLT, WITH WASHER
90119-069UC-00
Unavailable
19
. FELT, PACKING
63M-51367-00-00
Unavailable
20
BOLT, WITH WASHER
90119-109U8-00
Unavailable
21
NUT
90179-10800-00
Unavailable
22
SHIM (0.5)
GD0-U7249-00-05
Unavailable
22
SHIM (0.5)
GD0-U7249-00-05
Unavailable
23
BOLT, WITH WASHER
90119-08907-00
Unavailable
24
SCREW, PAN HEAD(3YL)
98580-05014-00
Unavailable
25
COVER,PLATE
GT3-6273C-00-00
Unavailable
26
CAP
GJ8-60469-01-00
Unavailable
27
PLATE 2
GJ3-U273B-00-00
Unavailable
28
BOLT, WITH WASHER
90119-08829-00
Unavailable
29
PACKING
GJ1-62733-00-00
Unavailable
30
PACKING 1
GJ1-62663-00-00
Unavailable
31
BOLT, WITH WASHER
90119-08828-00
Unavailable
32
NUT,SPEC'L SHAPE
90179-06814-00
Unavailable
33
BOLT, WITH WASHER
90119-06896-00
Unavailable
