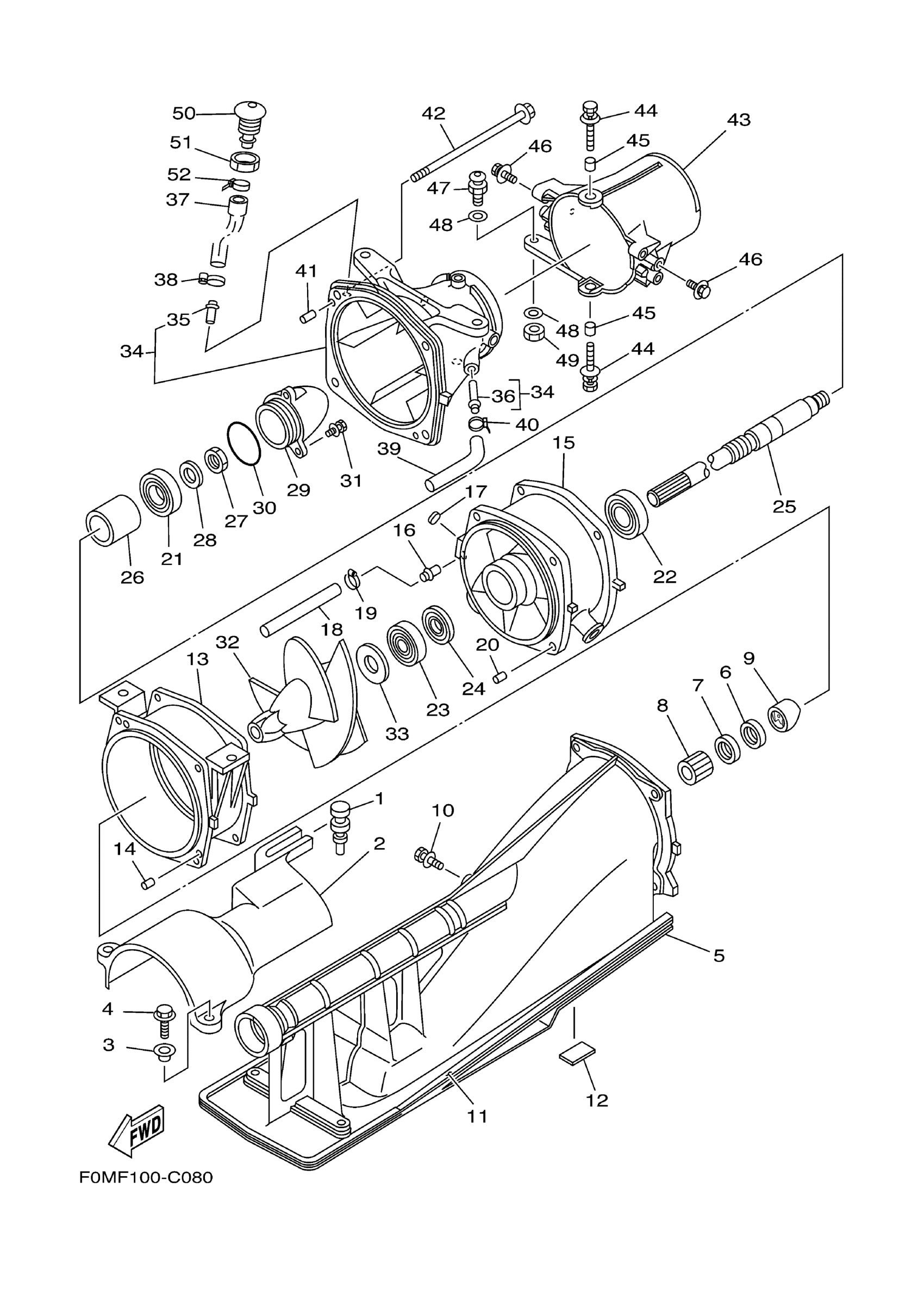

Yamaha XL700C (XL700) F0MF 2004 JET UNIT 1 Diagram

#

Description
Price

1

GROMMET(6R7)

90480-06M46-00

$9.67

2

COVER

65R-R1381-00-00

Unavailable

3

COLLAR

90387-06M60-00

$6.83

4

BOLT, WITH WASHER

90119-06892-00

$4.01

5

DUCT, INTAKE

65U-R1311-00-00

Unavailable

6

OIL SEAL

93102-17M49-00

$9.64

7

OIL SEAL

93102-17M50-00

Unavailable

8

BUSHING, DRIVE SHAFT

65V-45318-00-00

$83.57

9

SPACER

65U-R1348-01-00

Unavailable

10

BOLT, WITH WASHER

90119-06892-00

$4.01

11

. FELT, PACKING

6R8-51367-01-00

$10.63

12

. FELT, PACKING

63M-51368-00-00

$3.58

13

HOUSING, IMPELLER

63M-51312-02-94

Unavailable

14

PIN, DOWEL (614)

93606-12019-00

$3.50

15

DUCT, IMPELLER

63M-51315-02-00

Unavailable

16

NIPPLE

65A-R1129-10-00

Unavailable

17

PLUG

90331-12M05-00

Unavailable

18

HOSE (L108)

90445-18M03-00

Unavailable

19

BAND, HOSE 18

90601-118UF-00

$2.22

20

PIN, DOWEL (614)

93606-12019-00

$3.50

21

BEARING

93306-304XB-00

$17.94

22

BEARING (6K8)

93306-205U1-00

Unavailable

23

OIL SEAL(6R7)

93102-25M34-00

Unavailable

24

OIL SEAL(6R7)

93101-25M50-00

Unavailable

25

SHAFT, DRIVE

65R-45511-10-00

$367.15

26

SPACER 1

65V-45538-00-00

$30.39

27

NUT

95317-16700-00

$4.31

28

WASHER

9299R-16600-00

Unavailable

29

CAP KIT

65A-R1326-10-KT

Unavailable

30

. O-RING

93210-46M16-00

$7.59

31

BOLT,WITH WASHER

90119-06890-00

$1.15

32

IMPELLER

65R-R1321-12-00

$323.87

33

SPACER

62T-51348-00-00

$49.39

34

NOZZLE

65R-R1318-00-00

Unavailable

35

. NIPPLE

65A-R1129-00-00

Unavailable

36

NIPPLE,HOSE

65A-R1334-01-00

Unavailable

37

PIPE 1

62E-51673-00-00

$24.61

38

BAND, HOSE 18

90601-118UF-00

$2.22

39

HOSE (L380)

90445-14M25-00

Unavailable

40

CLAMP

90465-10098-00

$2.24

41

PIN, DOWEL (614)

93606-12019-00

$3.50

42

BOLT,WASHER BASED

90105-088D7-00

Unavailable

43

NOZZLE,DEFLECTOR

65R-R1313-01-00

Unavailable

44

BOLT, WITH WASHER

90119-08852-00

$4.01

45

COLLAR

90387-08M08-00

$11.48

46

BOLT, WITH WASHER

90119-08852-00

$4.01

47

STUD, JOINT BALL

GH3-U146E-00-00

$7.53

48

WASHER,PLATE

90201-068M4-00

Unavailable

49

NUT

9538R-06700-00

$1.07

50

SPOUT

FN8-6269B-00-00

$17.09

51

NUT

EU0-61652-00-00

$11.77

52

CLIP

90600-91755-00

$5.82
